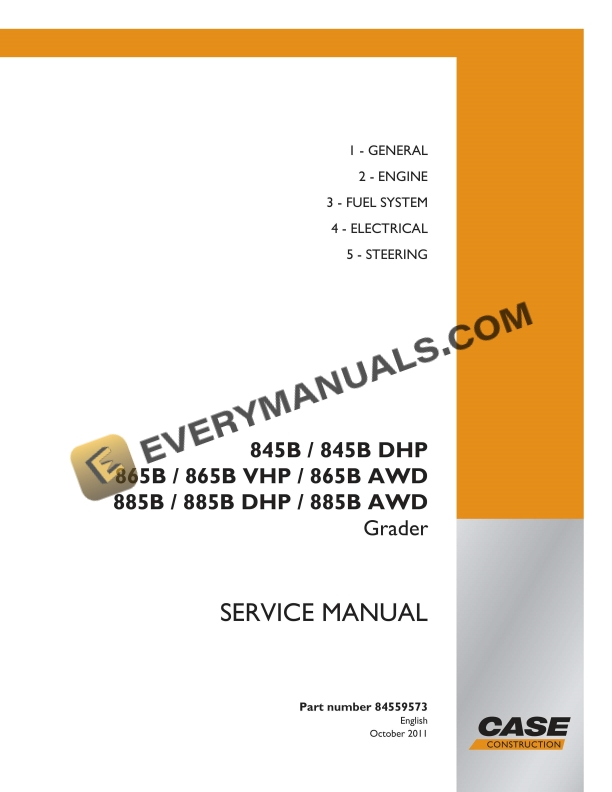

Case 845B, 845B DHP, 865B, 865B VHP, 865B AWD, 885B, 885B DHP, 885B AWD Grader Service Manual 84559573 PDF

Description

• Model List:
  • 845B Grader
  • 845B DHP Grader
  • 865B Grader
  • 865B VHP Grader
  • 865B AWD Grader
  • 885B Grader
  • 885B DHP Grader
  • 885B AWD Grader

• 1. GENERAL
• 1.1. Section 1001 STANDARD TORQUE ESPECIFICATIONS
• 1.2. Section 1002 FLUIDS AND LUBRICANTS
• 1.3. Section 1003 METRIC CONVERSION CHART
• 1.4. Section 1005 SERVICE TOOLS
• 2. ENGINE
• 2.1. Section 2002 ENGINE TIER 3845B DHP / 865B VHP / 885B DHP /865B AWD / 885B AWDModels
• 2.2. Section 2003 CHARGE AIR COOLER SYSTEM
• 3. FUEL SYSTEM
• 3.1. Section 3001 FUEL SYSTEM
• 4. ELECTRICAL

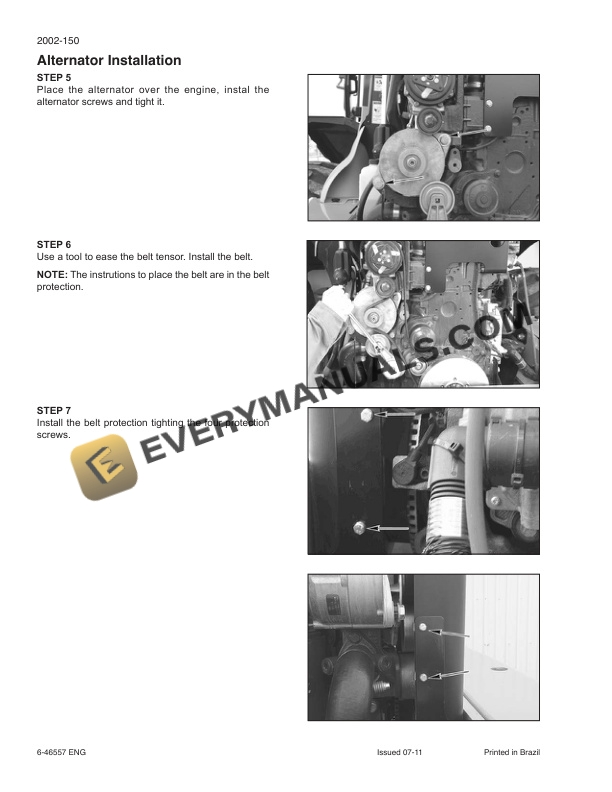

• 4.1. Section 4001 REMOVAL AND INSTALLATIONOF STARTER AND ALTERNATOR
• 4.2. Section 4002 ELECTRICAL DIAGRAM845B / 845B DHP /865B / 865B VHP /885B / 885B DHPModelsWithout ALL WHEEL DRIVE SYSTEM

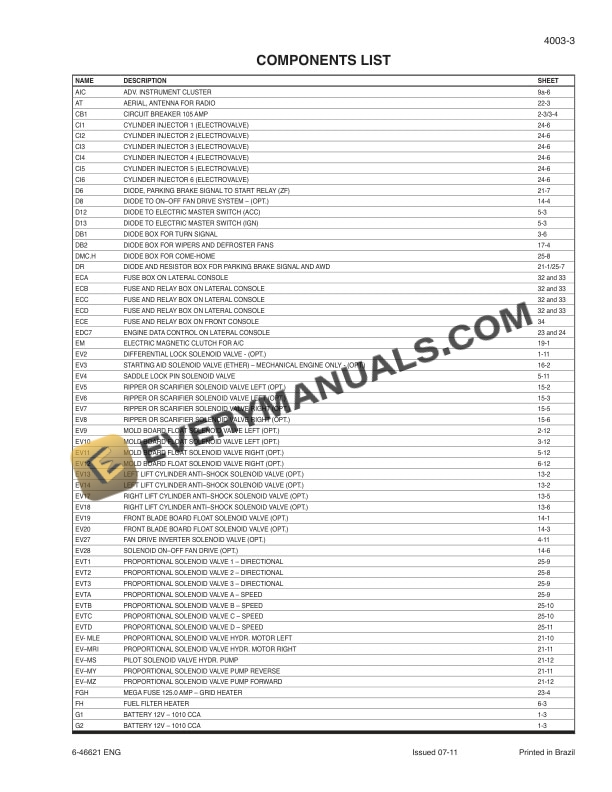

• 4.3. Section 4003 ELECTRICAL DIAGRAM 865B AWD / 885B AWD Models With ALL WHEEL DRIVE SYSTEM
• 4.4. Section 4004 BATTERY
• 5. STEERING
• 5.1. Section 5003 STEERING CONTROL VALVE
• 5.2. Section 5004 STEERING PRIORITY VALVE
