Date: 2023
Type Of Manual: Electrical Diagrams
Engine: L4-2.0L Turbo (K20C1)
Number of Pages: 450
Size: 52.5MB
Format: PDF

Category: Honda Wiring Diagrams PDF

Description

Notice: Undefined index: active_product in /usr/local/lsws/everymanuals.com/html/wp-content/plugins/text-to-speech-mh/public/class-text-to-speech-mh-public.php on line 115

Model List:
- Civic Hatchback Type-R

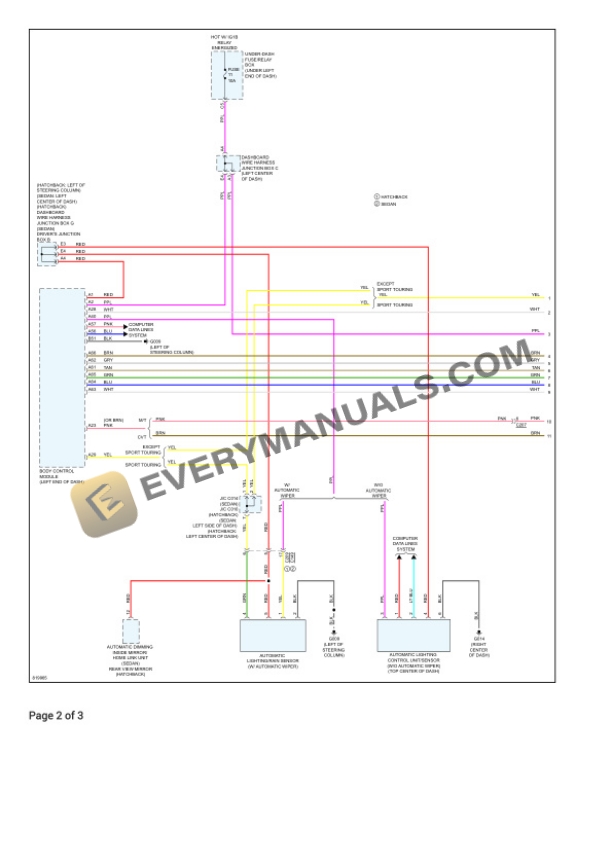

1. Air Conditioning – Automatic A_C Circuit
2. Anti-Lock Brakes – Hatchback
3. Anti-Lock Brakes – Sedan
4. Anti-Theft
5. Body Computer
6. Computer Data Lines – Hatchback
7. Computer Data Lines – Sedan
8. Cooling Fans
9. Cruise Control – Hatchback
10. Cruise Control – Sedan
11. Defogger
12. Door Locks
13. Electric Parking Brake Circuit (Hatchback)
14. Electric Parking Brake Circuit (Sedan)
15. Electronic Power Steering – Hatchback
16. Electronic Power Steering – Sedan
17. Electronic Suspension
18. Engine Controls
19. Exterior Lights – Backup Lamps Circuit (CVT)
20. Exterior Lights – Backup Lamps Circuit (M_T)
21. Exterior Lights – Exterior Lamps Circuit (Hatchback)
22. Exterior Lights – Exterior Lamps Circuit (Sedan)
23. Ground Distribution – Hatchback
24. Ground Distribution – Sedan
25. Headlights
26. Heated Steering Wheel Circuit
27. Instrument Cluster
28. Interior Lights – Courtesy Lamps Circuit
29. Interior Lights – Entry Light Timer Circuit
30. Interior Lights – Instrument Illumination Circuit (Hatchback)
31. Interior Lights – Instrument Illumination Circuit (Sedan)
32. Mirrors – Automatic Day_Night Mirror Circuit
33. Mirrors – Power Mirrors Circuit
34. Navigation – Blind Spot Monitoring Circuit
35. Navigation – Multipurpose Camera Circuit
36. Navigation – Navigation Circuit (Hatchback W_ Amplifier)
37. Navigation – Navigation Circuit (Hatchback W_O Amplifier)
38. Navigation – Navigation Circuit (Sedan W_ Amplifier)
39. Navigation – Navigation Circuit (Sedan W_O Amplifier)
40. Navigation – Parking Assistant Circuit (Hatchback)
41. Navigation – Parking Assistant Circuit (Sedan Except Touring)
42. Navigation – Parking Assistant Circuit (Sedan Touring)
43. Navigation – Rear Camera Circuit
44. Power Distribution – Hatchback
45. Power Distribution – Sedan
46. Power Tops
47. Power Windows
48. Seats – Driver Power Seat Circuit
49. Seats – Front Heated Seats Circuit
50. Seats – Passenger Power Seat Circuit
51. Seats – Rear Heated Seats Circuit
52. Shift Interlock – Reverse Lockout Circuit
53. Shift Interlock – Shift Interlock Circuit
54. Sound Systems – Hatchback W_ Amplifier
55. Sound Systems – Hatchback W_O Amplifier
56. Sound Systems – Sedan W_ Amplifier
57. Sound Systems – Sedan W_O Amplifier
58. Starting_Charging – Charging Circuit (Hatchback)
59. Starting_Charging – Charging Circuit (Sedan)
60. Starting_Charging – Starting Circuit (Hatchback)
61. Starting_Charging – Starting Circuit (Sedan)
62. Supplemental Restraints
63. Trunk, Tailgate, Fuel Doors – Tailgate Release Circuit
64. Trunk, Tailgate, Fuel Doors – Trunk Release Circuit
65. Warning Systems
66. Wiper_Washer – Front Wiper_Washer Circuit
67. Wiper_Washer – Rear Wiper_Washer Circuit
68. Accessory Power Sockets (KA USA FL5(2.0L))
69. Accessory Power Sockets (KC Canada FL5(2.0L))
70. Adaptive Cruise Control (ACC) (KA USA FL5(2.0L))
71. Adaptive Cruise Control (ACC) (KC Canada FL5(2.0L))
72. Adaptive Damper System (KA USA FL5(2.0L))
73. Adaptive Damper System (KC Canada FL5(2.0L))
74. Audio and Visual System (KA USA FL5(2.0L))
75. Audio and Visual System (KC Canada FL5(2.0L))
76. Auto High-Beam (High-Beam Support System) (KA USA FL5(2.0L))
77. Auto High-Beam (High-Beam Support System) (KC Canada FL5(2.0L))
78. Automatic Dimming Mirrors (KC Canada FL5(2.0L))
79. B-CAN Communication Line (KA USA FL5(2.0L))
80. B-CAN Communication Line (KC Canada FL5(2.0L))
81. Back-up Lights (KA USA FL5(2.0L))
82. Back-up Lights (KC Canada FL5(2.0L))
83. Blind Spot Information (BSI) System (KA USA FL5(2.0L))
84. Blind Spot Information (BSI) System (KC Canada FL5(2.0L))
85. Brake Lights (KA USA FL5(2.0L))
86. Brake Lights (KC Canada FL5(2.0L))
87. Charging System (KA USA FL5(2.0L))
88. Charging System (KC Canada FL5(2.0L))
89. Climate Control System (KA USA FL5(2.0L))
90. Climate Control System (KC Canada FL5(2.0L))
91. Collision Mitigation Braking System (CMBS) (KA USA FL5(2.0L))
92. Collision Mitigation Braking System (CMBS) (KC Canada FL5(2.0L))
93. Cooling Fan Controls (KA USA FL5(2.0L))
94. Cooling Fan Controls (KC Canada FL5(2.0L))
95. Cross Traffic Monitor (KA USA FL5(2.0L))
96. Cross Traffic Monitor (KC Canada FL5(2.0L))
97. Dashboard Wire Harness Junction Box A (KA USA FL5(2.0L))
98. Dashboard Wire Harness Junction Box A (KC Canada FL5(2.0L))
99. Dashboard Wire Harness Junction Box B (KA USA FL5(2.0L))
100. Dashboard Wire Harness Junction Box B (KC Canada FL5(2.0L))
101. Dashboard Wire Harness Junction Box C (KA USA FL5(2.0L))
102. Dashboard Wire Harness Junction Box C (KC Canada FL5(2.0L))
103. Dashboard Wire Harness Junction Box D (KA USA FL5(2.0L))
104. Dashboard Wire Harness Junction Box E (KA USA FL5(2.0L))
105. Dashboard Wire Harness Junction Box E (KC Canada FL5(2.0L))
106. Dashboard Wire Harness Junction Box G (KA USA FL5(2.0L))
107. Dashboard Wire Harness Junction Box G (KC Canada FL5(2.0L))
108. Dashboard Wire Harness Junction Box J (KA USA FL5(2.0L))
109. Dashboard Wire Harness Junction Box J (KC Canada FL5(2.0L))
110. Dashboard Wire Harness Junction Box K (KA USA FL5(2.0L))
111. Dashboard Wire Harness Junction Box K (KC Canada FL5(2.0L))
112. Dashlights (KA USA FL5(2.0L))
113. Dashlights (KC Canada FL5(2.0L))
114. DLC (KA USA FL5(2.0L))
115. DLC (KC Canada FL5(2.0L))
116. Electric Parking Brake System (KA USA FL5(2.0L))
117. Electric Parking Brake System (KC Canada FL5(2.0L))
118. Electric Vacuum Pump Control Unit Connector for Inputs and Outputs
119. Engine Lubrication (KA USA FL5(2.0L))
120. Engine Lubrication (KC Canada FL5(2.0L))
121. Entry Lights Control System (KA USA FL5(2.0L))
122. Entry Lights Control System (KC Canada FL5(2.0L))
123. EPS (KA USA FL5(2.0L))
124. EPS (KC Canada FL5(2.0L))
125. Exterior Lights (KA USA FL5(2.0L))
126. Exterior Lights (KC Canada FL5(2.0L))
127. F-CAN Communication Line (KA USA FL5(2.0L))
128. F-CAN Communication Line (KC Canada FL5(2.0L))
129. Fuel and Emissions Systems (KA USA FL5(2.0L))
130. Fuel and Emissions Systems (KC Canada FL5(2.0L))
131. Gauges (KA USA FL5(2.0L))
132. Gauges (KC Canada FL5(2.0L))
133. Homelink Remote Control System (KC Canada FL5(2.0L))
134. Horns (KA USA FL5(2.0L))
135. Horns (KC Canada FL5(2.0L))
136. Hot at All Times (KA USA FL5(2.0L))
137. Hot at All Times (KC Canada FL5(2.0L))
138. Hot in ACC and on Mode (KA USA FL5(2.0L))
139. Hot in ACC and on Mode (KC Canada FL5(2.0L))
140. Hot in on Mode (KA USA FL5(2.0L))
141. Hot in on Mode (KC Canada FL5(2.0L))
142. Interior Lights (KA USA FL5(2.0L))
143. Interior Lights (KC Canada FL5(2.0L))
144. Junction Box Diagram Dashboard Wire Harness Junction Box A (KA USA FL5(2.0L))
145. Junction Box Diagram Dashboard Wire Harness Junction Box A (KC Canada FL5(2.0L))
146. Junction Box Diagram Dashboard Wire Harness Junction Box B (KA USA FL5(2.0L))
147. Junction Box Diagram Dashboard Wire Harness Junction Box B (KC Canada FL5(2.0L))
148. Junction Box Diagram Dashboard Wire Harness Junction Box C (KA USA FL5(2.0L))
149. Junction Box Diagram Dashboard Wire Harness Junction Box C (KC Canada FL5(2.0L))
150. Junction Box Diagram Dashboard Wire Harness Junction Box D (KA USA FL5(2.0L))
151. Junction Box Diagram Dashboard Wire Harness Junction Box E (KA USA FL5(2.0L))
152. Junction Box Diagram Dashboard Wire Harness Junction Box E (KC Canada FL5(2.0L))
153. Junction Box Diagram Dashboard Wire Harness Junction Box G (KA USA FL5(2.0L))
154. Junction Box Diagram Dashboard Wire Harness Junction Box G (KC Canada FL5(2.0L))
155. Junction Box Diagram Dashboard Wire Harness Junction Box J (KA USA FL5(2.0L))
156. Junction Box Diagram Dashboard Wire Harness Junction Box J (KC Canada FL5(2.0L))
157. Junction Box Diagram Dashboard Wire Harness Junction Box K (KA USA FL5(2.0L))
158. Junction Box Diagram Dashboard Wire Harness Junction Box K (KC Canada FL5(2.0L))
159. Junction Connectors Diagram Junction Connectors (KA USA FL5(2.0L))
160. Junction Connectors Diagram Junction Connectors (KC Canada FL5(2.0L))
161. K-Line Communication Line (KA USA FL5(2.0L))
162. K-Line Communication Line (KC Canada FL5(2.0L))
163. Keyless Access System (KA USA FL5(2.0L))
164. Keyless Access System (KC Canada FL5(2.0L))

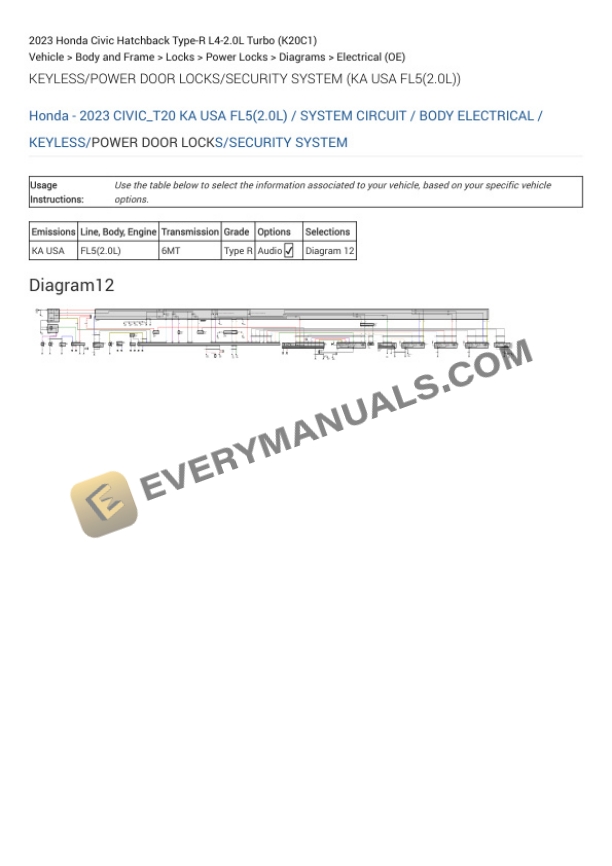

165. Keyless_Power Door Locks_Security System (KA USA FL5(2.0L))_001
166. Keyless_Power Door Locks_Security System (KA USA FL5(2.0L))_002
167. Keyless_Power Door Locks_Security System (KA USA FL5(2.0L))_003
168. Keyless_Power Door Locks_Security System (KC Canada FL5(2.0L))_001
169. Keyless_Power Door Locks_Security System (KC Canada FL5(2.0L))_002
170. Keyless_Power Door Locks_Security System (KC Canada FL5(2.0L))_003
171. L-Line Communication Line (KA USA FL5(2.0L))
172. L-Line Communication Line (KC Canada FL5(2.0L))
173. Lane Keeping Assist System (LKAS) (KA USA FL5(2.0L))
174. Lane Keeping Assist System (LKAS) (KC Canada FL5(2.0L))
175. LIN Communication Line (KA USA FL5(2.0L))
176. LIN Communication Line (KC Canada FL5(2.0L))
177. M-CAN Communication Line (KA USA FL5(2.0L))
178. M-CAN Communication Line (KC Canada FL5(2.0L))
179. Parking and Back-up Sensor System (KC Canada FL5(2.0L))
180. Power Mirrors (KA USA FL5(2.0L))
181. Power Mirrors (KC Canada FL5(2.0L))
182. Power Windows (KA USA FL5(2.0L))
183. Power Windows (KC Canada FL5(2.0L))
184. Rear Window Defogger (KA USA FL5(2.0L))
185. Rear Window Defogger (KC Canada FL5(2.0L))
186. Rear Window Wipers_Washers (KA USA FL5(2.0L))
187. Rear Window Wipers_Washers (KC Canada FL5(2.0L))
188. Reminder Systems (KA USA FL5(2.0L))
189. Reminder Systems (KC Canada FL5(2.0L))
190. Reverse Lockout System (KA USA FL5(2.0L))
191. Reverse Lockout System (KC Canada FL5(2.0L))
192. Road Departure Mitigation (KA USA FL5(2.0L))
193. Road Departure Mitigation (KC Canada FL5(2.0L))
194. S-Net Communication Line (KA USA FL5(2.0L))
195. S-Net Communication Line (KC Canada FL5(2.0L))
196. SRS (KA USA FL5(2.0L))
197. SRS (KC Canada FL5(2.0L))
198. Starting System (KA USA FL5(2.0L))
199. Starting System (KC Canada FL5(2.0L))
200. Thermal Joint Diagram Thermal Joint (KA USA FL5(2.0L))
201. Thermal Joint Diagram Thermal Joint (KC Canada FL5(2.0L))
202. Turn Signal_Hazard Warning Lights (KA USA FL5(2.0L))
203. Turn Signal_Hazard Warning Lights (KC Canada FL5(2.0L))
204. Under-Dash Fuse_Relay Box (KA USA FL5(2.0L))
205. Under-Dash Fuse_Relay Box (KC Canada FL5(2.0L))
206. Under-Dash Fuse_Relay Box – Back Side (KA USA FL5(2.0L))
207. Under-Dash Fuse_Relay Box – Back Side (KC Canada FL5(2.0L))
208. Under-Dash Fuse_Relay Box – Front Side (KA USA FL5(2.0L))
209. Under-Dash Fuse_Relay Box – Front Side (KC Canada FL5(2.0L))
210. Under-Hood Fuse_Relay Box (KA USA FL5(2.0L))
211. Under-Hood Fuse_Relay Box (KC Canada FL5(2.0L))
212. Under-Hood Fuse_Relay Box Fuse Holder A (KA USA FL5(2.0L))
213. Under-Hood Fuse_Relay Box Fuse Holder A (KC Canada FL5(2.0L))
214. Under-Hood Fuse_Relay Box Fuse_Relay Holder C (KA USA FL5(2.0L))
215. Under-Hood Fuse_Relay Box Fuse_Relay Holder C (KC Canada FL5(2.0L))
216. Under-Hood Fuse_Relay Box Fuse_Relay Holder D (KA USA FL5(2.0L))
217. Under-Hood Fuse_Relay Box Fuse_Relay Holder D (KC Canada FL5(2.0L))
218. Under-Hood Fuse_Relay Box Fuse_Relay Holder E (KA USA FL5(2.0L))
219. Under-Hood Fuse_Relay Box Fuse_Relay Holder E (KC Canada FL5(2.0L))
220. Under-Hood Fuse_Relay Box Fuse_Relay Holder G (KA USA FL5(2.0L))
221. Under-Hood Fuse_Relay Box Fuse_Relay Holder G (KC Canada FL5(2.0L))
222. VSA System (KA USA FL5(2.0L))
223. VSA System (KC Canada FL5(2.0L))
224. Windshield Wipers_Washers (KA USA FL5(2.0L))
225. Windshield Wipers_Washers (KC Canada FL5(2.0L))
226. Wireless Charger (KA USA FL5(2.0L))
227. Wireless Charger (KC Canada FL5(2.0L))

Rate this product

Honda Civic Hatchback Type-R 2023 Electrical Diagrams L4-2.0L Turbo (K20C1)

Description

Related products

Login
