Mahindra 3650 HST T4 Tractor Parts Manual

Description

• Model List:
  • 3650 HST T4

• 1. Engine – AIR INTAKE SYSTEM

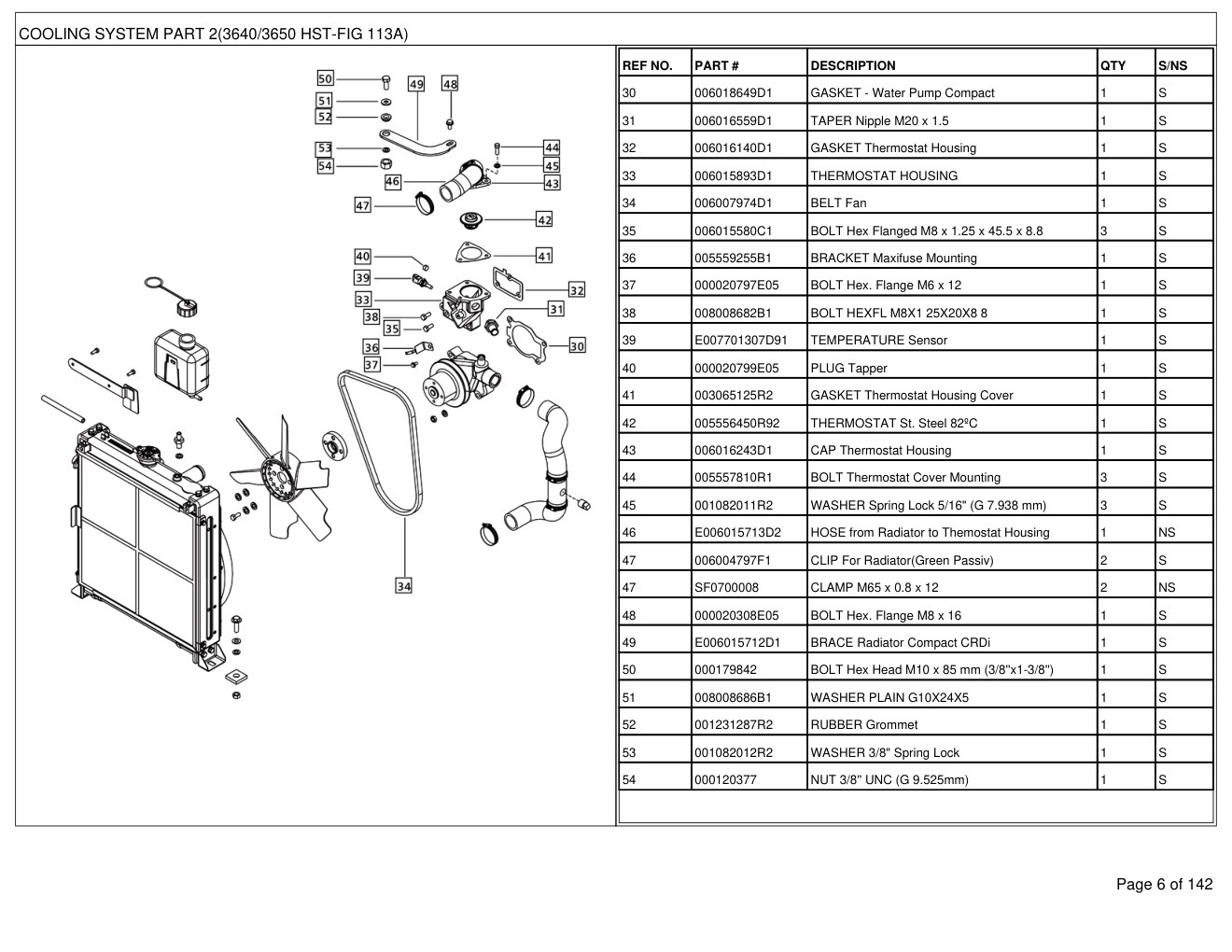

• 2. Engine – COOLING SYSTEM PART 1
• 3. Engine – COOLING SYSTEM PART 2
• 4. Engine – CRANKCASE FRONT COVER PART 1
• 5. Engine – CRANKCASE FRONT COVER PART 2
• 6. Engine – CRANKCASE WITH OIL PAN PART 1
• 7. Engine – CRANKCASE WITH OIL PAN PART 2
• 8. Engine – CRANKSHAFT AND FLYWHEEL ASSEMBLY
• 9. Engine – CYLINDER HEAD ASSEMBLY
• 10. Engine – EGR SYSTEM
• 11. Engine – ENGINE COMPLETE, MAJOR CRANKCASE ASSEMBLY
• 12. Engine – EXHAUST SYSTEM
• 13. Engine – FILTER ASSEMBLY
• 14. Engine – FUEL INJECTION SYSTEM
• 15. Engine – LUBRICATING OIL PUMP
• 16. Engine – PISTON, LINER AND CONNECTING ROD ASSEMBLY
• 17. Engine – VALVE HOUSING COVER
• 18. Engine – VALVE TRAIN
• 19. Final Drive and Brakes – BRAKE ASSEMBLY AND MOUNTING
• 20. Final Drive and Brakes – BRAKE PEDAL AND LINKAGES
• 21. Final Drive and Brakes – PARKING BRAKE LEVER ASSEMBLY
• 22. Final Drive and Brakes – REAR AXLE AND MOUNTING LH
• 23. Final Drive and Brakes – REAR AXLE AND MOUNTING RH
• 24. Front Axle – CHASSIS
• 25. Front Axle – FRONT AXLE CENTRAL PART 1
• 26. Front Axle – FRONT AXLE CENTRAL PART 2
• 27. Front Axle – FRONT AXLE CENTRAL PART 3
• 28. Front Axle – FRONT AXLE LH PART 1
• 29. Front Axle – FRONT AXLE LH PART 2
• 30. Front Axle – FRONT AXLE RH PART 1
• 31. Front Axle – FRONT AXLE RH PART 2
• 32. Front Axle – FRONT AXLE SUPPORT AND DRIVE
• 33. Front Axle – TIE ROD amp STEERING GUARD PLATE
• 34. Hydraulics – AUXILIARY VALVE – SINGLE SPOOL (STANDARD FITMENT)
• 35. Hydraulics – AUXILIARY VALVE – SINGLE SPOOL (STANDARD FITMENT)
• 36. Hydraulics – DRAWBAR ASSEMBLY
• 37. Hydraulics – HYDRAULIC CONTROL LEVERS
• 38. Hydraulics – HYDRAULIC LIFT HOUSING
• 39. Hydraulics – HYDRAULIC PUMP SYSTEM AND PIPING PART 1
• 40. Hydraulics – HYDRAULIC PUMP SYSTEM AND PIPING PART 2
• 41. Hydraulics – INTERNAL LEVERS ASSEMBLY PART 1
• 42. Hydraulics – INTERNAL LEVERS ASSEMBLY PART 2
• 43. Hydraulics – KIT – PTO CONTROL VALVE
• 44. Hydraulics – MITA AUXILIARY VALVE – SINGLE SPOOL (STANDARD FITMENT)
• 45. Hydraulics – MITA AUXILIARY VALVE – SINGLE SPOOL (STANDARD FITMENT)
• 46. Hydraulics – OIL COOLER
• 47. Hydraulics – PISTON, CYLINDER, ROCKSHAFT AND ARMS
• 48. Hydraulics – POSITION _ DRAFT CONTROL LINKAGES
• 49. Hydraulics – PTO CONTROL SYSTEM PART 1
• 50. Hydraulics – PTO CONTROL SYSTEM PART 2
• 51. Hydraulics – PTO SHIELD ASSEMBLY
• 52. Hydraulics – RELIEF VALVE BLOCK SYSTEM
• 53. Hydraulics – ROCKSHAFT CONTROL VALVE PART 1
• 54. Hydraulics – ROCKSHAFT CONTROL VALVE PART 2
• 55. Hydraulics – SLOW FAST VALVE
• 56. Hydraulics – THREE POINT LINKAGES
• 57. Hydraulics – THREE POINT LINKAGES PART 1
• 58. Hydraulics – THREE POINT LINKAGES PART 2
• 59. Hydraulics – TOP LINK BRACKET ASSEMBLY
• 60. Seat – SEAT
• 61. Sheet Metal amp Electricals – BATTERY AND CABLE
• 62. Sheet Metal amp Electricals – ECU, SENSOR amp SWITCH
• 63. Sheet Metal amp Electricals – FENDER amp REAR PLATFORM ASSEMBLY PART 1
• 64. Sheet Metal amp Electricals – FENDER amp REAR PLATFORM ASSEMBLY PART 2
• 65. Sheet Metal amp Electricals – FIREWALL ASSEMBLY PART 1
• 66. Sheet Metal amp Electricals – FIREWALL ASSEMBLY PART 2
• 67. Sheet Metal amp Electricals – FRONT PLATFORM ASSEMBLY
• 68. Sheet Metal amp Electricals – FUEL TANK PART 1
• 69. Sheet Metal amp Electricals – FUEL TANK PART 2
• 70. Sheet Metal amp Electricals – HEAD LAMP
• 71. Sheet Metal amp Electricals – HOOD AND FRONT END ASSEMBLY PART 1
• 72. Sheet Metal amp Electricals – HOOD AND FRONT END ASSEMBLY PART 2
• 73. Sheet Metal amp Electricals – HOOD AND FRONT END ASSEMBLY PART 3
• 74. Sheet Metal amp Electricals – INSTRUMENT PANEL, GAUGES, SWITCHES, BULBS amp FUSES
• 75. Sheet Metal amp Electricals – P amp T LAMPS
• 76. Sheet Metal amp Electricals – PLOUGH LAMP amp 3 IN 1 LAMP
• 77. Sheet Metal amp Electricals – RUBBER MAT ASSEMBLY
• 78. Sheet Metal amp Electricals – STARTER MOTOR AND SEVEN POLE SOCKET
• 79. Sheet Metal amp Electricals – STICKERS, GRAPHICS AND DECALS
• 80. Sheet Metal amp Electricals – WIRING HARNESS
• 81. Steering And Linkages – POWER STEERING PIPING SUB ASSEMBLY
• 82. Steering And Linkages – WHEEL AND COLUMN
• 83. Transmission – 4WD ENGAGEMENT LINKAGES
• 84. Transmission – CRUISE CONTROL SYSTEM
• 85. Transmission – CRUISE RETURN LINKAGES
• 86. Transmission – DIFFERENTIAL LOCK SYSTEM
• 87. Transmission – DIFFERENTIAL SECTION
• 88. Transmission – FORWARD – REVERSE PEDAL SYSTEM PART 1
• 89. Transmission – FORWARD – REVERSE PEDAL SYSTEM PART 2
• 90. Transmission – HAND ACCELERATOR ASSEMBLY
• 91. Transmission – KIT – HST
• 92. Transmission – PTO SECTION PART 1
• 93. Transmission – PTO SECTION PART 2
• 94. Transmission – RANGE SECTION PART 1
• 95. Transmission – RANGE SECTION PART 2
• 96. Transmission – RANGE SECTION PART 3
• 97. Transmission – RANGE SECTION PART 4
• 98. Transmission – RANGE SHIFTING SYSTEM
• 99. Transmission – TRANSMISSION – HST PART 1
• 100. Transmission – TRANSMISSION – HST PART 2
• 101. Transmission – TRANSMISSION CASE
• 102. Wheels – FRONT WHEEL AND REAR WHEEL
• 103. Wheels – ROLL OVER PROTECTIVE STRUCTURE (ROPS)
