Mahindra 5500 2WD Tractor Parts Manual

Type Of Manual: Parts Manual
Number of Pages: 147
Size: 13.2MB
Format: PDF

Categories: Mahindra, Mahindra Parts Manual PDF

Description

Description

Model List:
- 5500 2WD

1. Attachments – SWINGING DRAWBAR ATTACHMENT
2. Attachments – SWINGING DRAWBAR ATTACHMENT
3. Brakes – DISC BRAKES amp LINKAGES (LH)
4. Brakes – DISC BRAKES amp LINKAGES (RH)
5. Brakes – FOOT BRAKE PEDALS AND LINKAGES
6. Brakes – HAND BRAKE LINKAGES
7. C.R.P.T.O. amp Transmission – CRPTO GEARS amp SHAFTS (PART 1)
8. C.R.P.T.O. amp Transmission – CRPTO GEARS amp SHAFTS (PART 2)
9. C.R.P.T.O. amp Transmission – DIFFERENTIAL
10. C.R.P.T.O. amp Transmission – DIFFERENTIAL LOCK
11. C.R.P.T.O. amp Transmission – DIFFERENTIAL- UPTO 2210 (PART 1)
12. C.R.P.T.O. amp Transmission – DIFFERENTIAL- UPTO 2210 (PART 2)
13. C.R.P.T.O. amp Transmission – GEAR SHIFTER MECHANISM amp TRANSMISSION CASE COVER FRONT (PART 1)
14. C.R.P.T.O. amp Transmission – GEAR SHIFTER MECHANISM amp TRANSMISSION CASE COVER FRONT (PART 2)
15. C.R.P.T.O. amp Transmission – GEAR SHIFTER MECHANISM amp TRANSMISSION CASE COVER FRONT (PART 3)
16. C.R.P.T.O. amp Transmission – MODIFICATION IN REAR AXLE OIL SEAL RETAINER
17. C.R.P.T.O. amp Transmission – REAR AXLE CARRIER amp REAR AXLE (PART 1) – UPTO SRP2209
18. C.R.P.T.O. amp Transmission – REAR AXLE CARRIER amp REAR AXLE (PART 2) – UPTO SRP2209
19. C.R.P.T.O. amp Transmission – REAR AXLE CARRIER amp REAR AXLE – FROM SRP2210
20. C.R.P.T.O. amp Transmission – REAR PTO SHAFT amp OPERATING LEVER (PART 1)
21. C.R.P.T.O. amp Transmission – REAR PTO SHAFT amp OPERATING LEVER (PART 2)
22. C.R.P.T.O. amp Transmission – TRANSMISSION CASE
23. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS (CONSTANTMESH) (PART 1)
24. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS (CONSTANTMESH) (PART 2)
25. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS (PARTIAL SYNCHROMESH) (PART 1)
26. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS (PARTIAL SYNCHROMESH) (PART 2)
27. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS (PARTIAL SYNCHROMESH) (PART 3)
28. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS (PARTIAL SYNCHROMESH) (PART 4)
29. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS SINGLE DRIVE SHAFT (CONSTANTMESH) UPTO 1784- PART 1

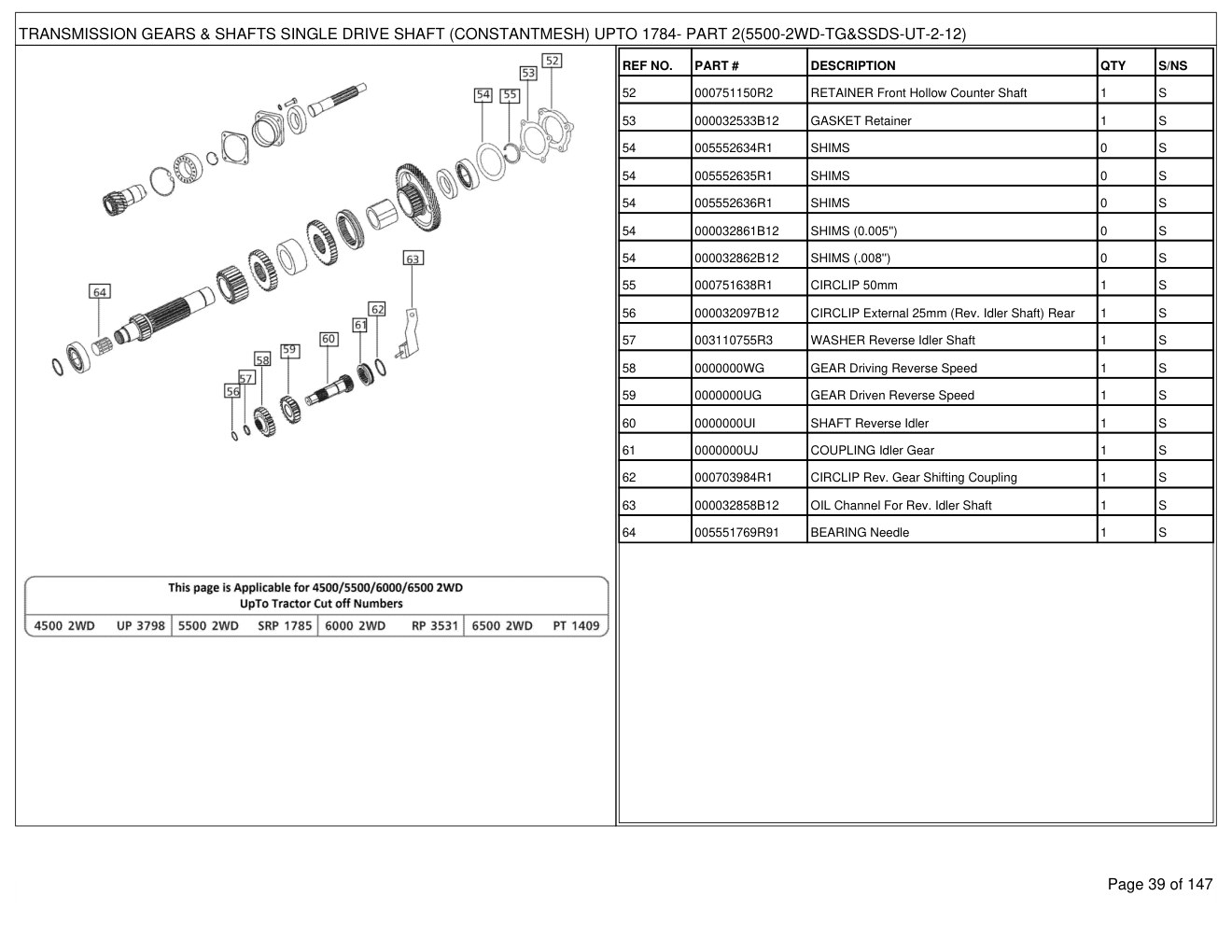

30. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS SINGLE DRIVE SHAFT (CONSTANTMESH) UPTO 1784- PART 2
31. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS SPLIT DRIVE SHAFT (CONSTANTMESH) FRM 1786- PART 1
32. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS amp SHAFTS SPLIT DRIVE SHAFT (CONSTANTMESH) FRM 1786- PART 2
33. Clutch – CLUTCH HOUSING AND CONNECTIONS (PART 1)
34. Clutch – CLUTCH HOUSING AND CONNECTIONS (PART 2)
35. Clutch – DUAL CLUTCH ASSEMBLY
36. Electrical – ALTERNATOR, STARTER MOTOR amp INSTRUMENTS
37. Electrical – LAMP ASSEMBLY
38. Electrical – WIRING HARNESS
39. Engine – AIR INTAKE SYSTEM (PART 1)
40. Engine – AIR INTAKE SYSTEM (PART 2)
41. Engine – AIR INTAKE SYSTEM (PART 3)
42. Engine – AIR INTAKE SYSTEM (PUROLATOR MAKE)
43. Engine – COOLING SYSTEM
44. Engine – CRANKCASE FRONT COVER
45. Engine – CRANKCASE WITH OIL PAN (PART 1)
46. Engine – CRANKCASE WITH OIL PAN (PART 2)
47. Engine – CRANKSHAFT ASSEMBLY
48. Engine – CYLINDER HEAD ASSEMBLY (PART 1)
49. Engine – CYLINDER HEAD ASSEMBLY (PART 2)
50. Engine – ENGINE CPTE., MAJOR CRANKCASE ASSEMBLY (TIER-1)
51. Engine – ENGINE CPTE., MAJOR CRANKCASE ASSEMBLY (TIER-2)
52. Engine – EXHAUST SYSTEM
53. Engine – FUEL INJECTION SYSTEM (TIER-1) (PART 1)
54. Engine – FUEL INJECTION SYSTEM (TIER-1) (PART 2)
55. Engine – FUEL INJECTION SYSTEM (TIER-2) (PART-1)
56. Engine – FUEL INJECTION SYSTEM (TIER-2) (PART-2)
57. Engine – FUEL INJECTION SYSTEM (TIER-2) (PART-3)
58. Engine – LUB. OIL FILTER ASSEMBLY
59. Engine – LUBRICATION SYSTEM (OIL PUMP)
60. Engine – PACKAGE GASKET, O-RINGS, SLEEVE amp PISTON RINGS, VALVES (PART 1)
61. Engine – PACKAGE GASKET, O-RINGS, SLEEVE amp PISTON RINGS, VALVES (PART 2)
62. Engine – PACKAGE GASKET, O-RINGS, SLEEVE amp PISTON RINGS, VALVES (PART 3)
63. Engine – RADIATOR ASSEMBLY – UPTO SRP 1809
64. Engine – RADIATOR ASSEMBLY- FROM SRP 1810
65. Engine – SLEEVE PISTON amp CONNECTING ROD ASSEMBLY
66. Engine – VALVE HOUSING COVER (TIER-1)
67. Engine – VALVE HOUSING COVER (TIER-2)
68. Engine – VALVE TRAIN (PART 1)
69. Engine – VALVE TRAIN (PART 2)
70. Fast Moving Parts List – FAST MOVING PARTS LIST 1
71. Fast Moving Parts List – FAST MOVING PARTS LIST 2
72. Front Axle – FRONT AXLE (WITH POWER STEERING BRACKET)
73. Front Axle – FRONT AXLE SUPPORT
74. Front Axle – FRONT WHEEL HUB ASSEMBLY
75. Front Axle – REAR WHEEL WEIGHTS (OPTIONAL FITMENT)
76. Hydraulics – AUXILIARY VALVE ASSEMBLY – CONVERSION KIT (PART 1)
77. Hydraulics – AUXILIARY VALVE ASSEMBLY – CONVERSION KIT (PART 2)
78. Hydraulics – AUXILIARY VALVE ASSEMBLY – OPTIONAL FITMENT
79. Hydraulics – BELL CRANK ASSEMBLY
80. Hydraulics – CONTROL VALVE – CYLINDER HEAD (PART 1)
81. Hydraulics – CONTROL VALVE – CYLINDER HEAD (PART 2)
82. Hydraulics – CONTROL VALVE ASSEMBLY
83. Hydraulics – CONTROL VALVE BODY (PART 1)
84. Hydraulics – CONTROL VALVE BODY (PART 2)
85. Hydraulics – CONTROL VALVE BODY (PART 3)
86. Hydraulics – HYDRAULIC CONTROL LEVERS (PART 1)
87. Hydraulics – HYDRAULIC CONTROL LEVERS (PART 2)
88. Hydraulics – HYDRAULIC CONTROL LEVERS (PART 3)
89. Hydraulics – HYDRAULIC CONTROL LEVERS (PART 4)
90. Hydraulics – HYDRAULIC LIFT ARMS
91. Hydraulics – HYDRAULIC LIFT HOUSING
92. Hydraulics – HYDRAULIC SUCTION AND PRESSURE PIPES
93. Hydraulics – HYDRAULIC TANDEM PUMP
94. Hydraulics – THREE POINT LINKAGES (PART 1)
95. Hydraulics – THREE POINT LINKAGES (PART 2)
96. Rim amp Disc – FRONT amp REAR WHEEL RIM amp DISC
97. ROPS – ROPS
98. Seat – SEAT (HARITA MAKE)
99. Seat – SLIDING SEAT (DISCONTINUED)
100. Seat – SLIDING SEAT (NEW TYPE) UPTO – PART 2
101. Seat – SLIDING SEAT (NEW TYPE) UPTO – PART 3
102. Seat – SLIDING SEAT (NEW TYPE) UPTO- PART 1
103. Sheet Metal – BONNET, PANEL, GRILL ASSEMBLY amp INSTRUMENT BEZEL (PART 1)
104. Sheet Metal – BONNET, PANEL, GRILL ASSEMBLY amp INSTRUMENT BEZEL (PART 2)
105. Sheet Metal – DECALS (SAFETY amp EPA CERTIFICATION)
106. Sheet Metal – FENDERS (UP TO SRP 1809 _ RP 3565)
107. Sheet Metal – FOOT PLATE
108. Sheet Metal – FRONT END ASSEMBLY

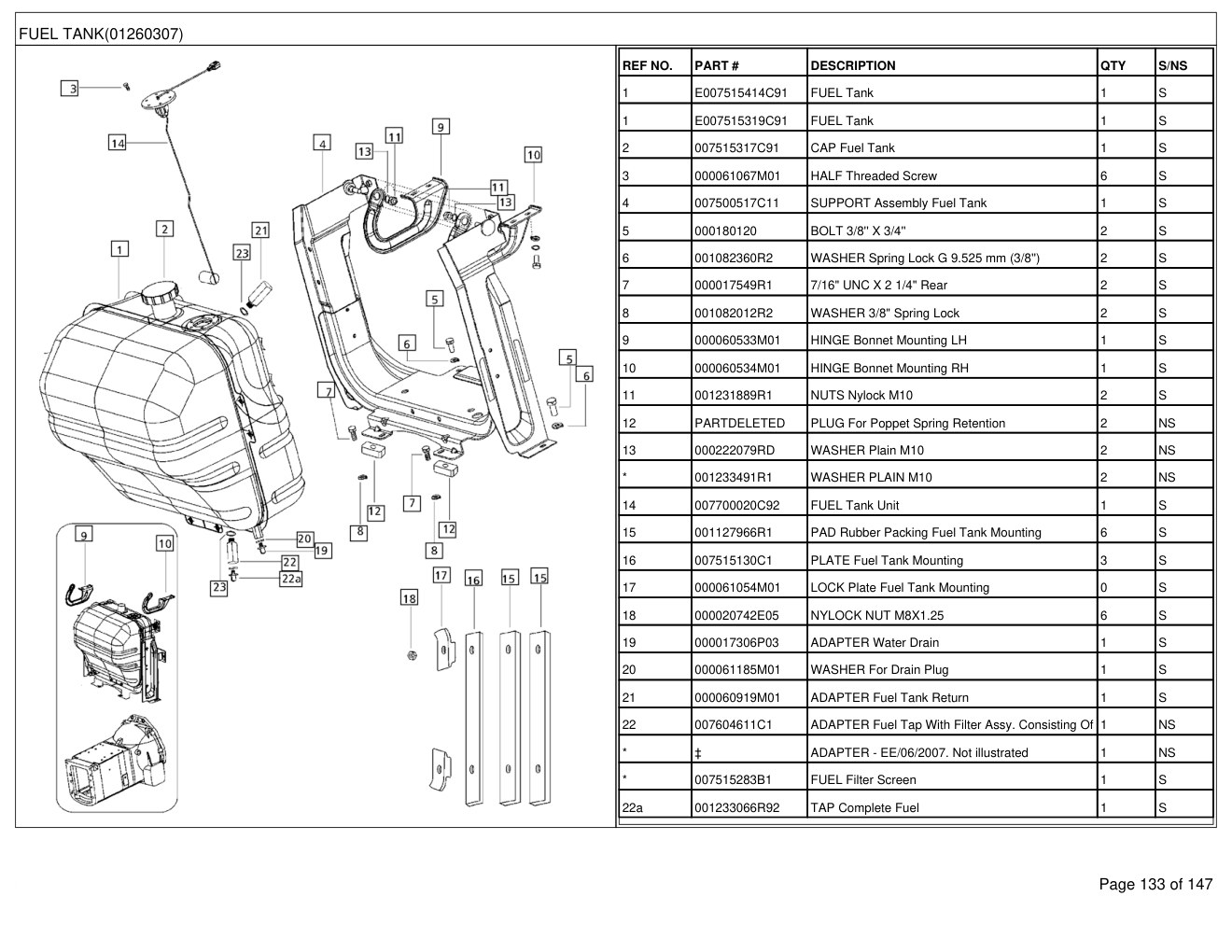

109. Sheet Metal – FUEL TANK
110. Sheet Metal – NST FENDERS – FROM SRP 1810
111. Sheet Metal – SCUTTLE ASSEMBLY
112. Sheet Metal – TOOL BOX
113. Sheet Metal – CANOPY (inactive)
114. Steering – POWER STEERING CYLINDER amp CONNECTING LINK
115. Steering – POWER STEERING PIPES amp FITTINGS (PART 1)
116. Steering – POWER STEERING PIPES amp FITTINGS (PART 2)
117. Steering – STEERING HSU UNIT
118. Steering – STEERING WHEEL, KNUCKLES, ARMS (POWER STEERING)
119. Throttle Linkages – FOOT THROTTLE LINKAGES
120. Throttle Linkages – HAND THROTTLE amp FUEL SHUT OFF LINKAGES
