Mahindra 7520 4WD Tractor Parts Manual

Type Of Manual: Parts Manual
Number of Pages: 191
Size: 12.5MB
Format: PDF

Categories: Mahindra, Mahindra Parts Manual PDF

Description

Description

Model List:
- 7520 4WD

1. Clutch – CLUTCH ASSEMBLY – FROM KNT1227 amp KNG940
2. Clutch – CLUTCH ASSEMBLY – UPTO KNT1226 amp KNG939
3. Clutch – CLUTCH HOUSING
4. Clutch – CLUTCH INNER CONTROLS AND SHAFTS-FROM KNG 940
5. Clutch – CLUTCH INNER CONTROLS AND SHAFTS-UPTO KNT1226 amp KNG939
6. Clutch – CLUTCH PEDAL AND LINKAGES
7. Engine – AIR INTAKE SYSTEM PT. 1
8. Engine – AIR INTAKE SYSTEM PT. 2
9. Engine – CYLINDER BLOCK
10. Engine – CYLINDER HEAD ASSEMBLY
11. Engine – ENGINE CPTE., MAJOR CRANKCASE ASSEMBLY
12. Engine – ENGINE CPTE., MAJOR CRANKCASE ASSEMBLY – FOR EXTENDED CAMSHAFT
13. Engine – EXHAUST SYSTEM
14. Engine – FIP, NOZZLE AND PIPINGS (PART 1)
15. Engine – FIP, NOZZLE AND PIPINGS (PART 2)
16. Engine – FLYWHEEL AND REAR OIL SEAL
17. Engine – FRONT COVER GROUP
18. Engine – HAND AND FOOT ACCELERATOR (PART 1)
19. Engine – HAND AND FOOT ACCELERATOR (PART 2)
20. Engine – LUB OIL COOLER AND PIPINGS
21. Engine – LUB OIL PUMP
22. Engine – PISTON, LINER, CONNECTING ROD AND CRANKSHAFT
23. Engine – RADIATOR AND HOSES
24. Engine – VALVE HOUSING COVER
25. Engine – VALVE TRAIN
26. Engine – WATER PUMP AND FAN
27. Fast Moving Parts List – FAST MOVING PARTS LIST 1
28. Fast Moving Parts List – FAST MOVING PARTS LIST 2
29. Final Drive amp Brakes – BRAKE ASSEMBLY AND MOUNTING
30. Final Drive amp Brakes – BRAKE PEDAL AND LINKAGES (PART 1)
31. Final Drive amp Brakes – BRAKE PEDAL AND LINKAGES (PART 2)
32. Final Drive amp Brakes – REAR AXLE AND MOUNTING
33. Front Axle amp Support – BEVEL GEAR PINION SET (CARRARO) – UPTO KNG 990
34. Front Axle amp Support – CENTRAL HOUSING (DANA) – FROM KNG 991
35. Front Axle amp Support – DIFFERENTIAL (CARRARO) – UPTO KNG 990

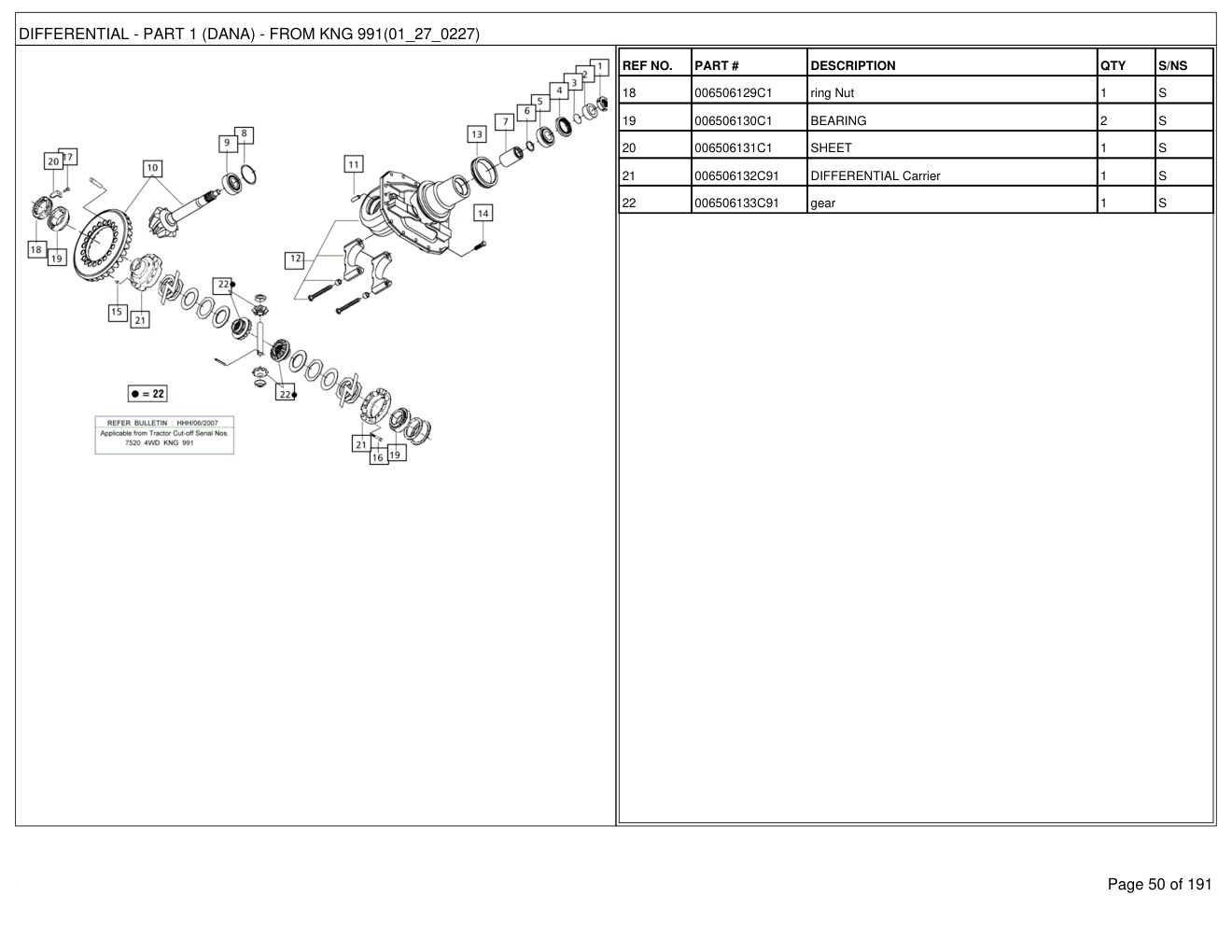

36. Front Axle amp Support – DIFFERENTIAL – PART 1 (DANA) – FROM KNG 991
37. Front Axle amp Support – DIFFERENTIAL – PART 2 (DANA) – FROM KNG 991
38. Front Axle amp Support – DOUBLE JOINT (CARRARO) – UPTO KNG 990
39. Front Axle amp Support – FRONT AXLE HOUSING (CARRARO) – UPTO KNG 990
40. Front Axle amp Support – FRONT AXLE SUPPORT AND DRIVE (CARRARO) PART 1 – UPTO KNG 990
41. Front Axle amp Support – FRONT AXLE SUPPORT AND DRIVE (CARRARO) PART 2 – UPTO KNG 990
42. Front Axle amp Support – FRONT AXLE SUPPORT AND DRIVE (DANA) – FROM KNG 991
43. Front Axle amp Support – HUB REDUCTION ( CARRARO) – UPTO KNG 990
44. Front Axle amp Support – HUB REDUCTION – PART 1 (DANA) – FROM KNG 991
45. Front Axle amp Support – HUB REDUCTION – PART 2 (DANA) – FROM KNG 991
46. Front Axle amp Support – STEERING (DANA) – FROM KNG 991
47. Front Axle amp Support – SWIVEL HOUSING AND STEERING CYLINDER (PART 1) (CARRARO) – UPTO KNG 990
48. Front Axle amp Support – SWIVEL HOUSING AND STEERING CYLINDER (PART 2) (CARRARO) – UPTP KNG 990
49. Front Axle amp Support – TRUNNION (DANA) – FROM KNG 991
50. Front Axle amp Support – WHEEL HUB (CARRARO) – UPTO KNG 990
51. Hydraulics amp 3-Point Linkages – AUXILIARY VALVE AND LEVERS
52. Hydraulics amp 3-Point Linkages – DRAFT SENSING MECHANISM AND INNER LINKAGES (PART 1)
53. Hydraulics amp 3-Point Linkages – DRAFT SENSING MECHANISM AND INNER LINKAGES (PART 2)
54. Hydraulics amp 3-Point Linkages – LIFT HOUSING
55. Hydraulics amp 3-Point Linkages – MANIFOLD AND RCV
56. Hydraulics amp 3-Point Linkages – PISTON, CYLINDER, RAM, ROCKSHAFT AND ARMS
57. Hydraulics amp 3-Point Linkages – PRESSURE AND RETURN LINE PIPINGS
58. Hydraulics amp 3-Point Linkages – PUMP AND SUCTION PIPES
59. Hydraulics amp 3-Point Linkages – QUADRANT ASSEMBLY
60. Hydraulics amp 3-Point Linkages – QUADRANT MECHANISM
61. Hydraulics amp 3-Point Linkages – SWINGING DRAWBAR AND PTO SHIELD – FROM KNG 940
62. Hydraulics amp 3-Point Linkages – SWINGING DRAWBAR AND PTO SHIELD-UPTO 1226 amp 939
63. Hydraulics amp 3-Point Linkages – THREE POINT LINKAGES 4WD (PART 1)
64. Hydraulics amp 3-Point Linkages – THREE POINT LINKAGES 4WD (PART 2)
65. Seat – SEAT – PART 1
66. Seat – SEAT – PART 2
67. Seat – SEAT – PART 3
68. Seat – SEAT (PART 1) (inactive)
69. Seat – SEAT (PART 2) (inactive)
70. Seat – SEAT (PART 3) (inactive)
71. Sheet Metal amp Electricals – BATTERY AND CABLE
72. Sheet Metal amp Electricals – FENDER ASSEMBLY – FROM KNG 940
73. Sheet Metal amp Electricals – FENDER ASSEMBLY – UPTO KNT1226 amp KNG939
74. Sheet Metal amp Electricals – FRONT STRUCTURE ASSEMBLY (PART 1)
75. Sheet Metal amp Electricals – FRONT STRUCTURE ASSEMBLY (PART 2)
76. Sheet Metal amp Electricals – FUEL LEVEL SENSOR AND 7 POLE SOCKET-FROM KNG 940
77. Sheet Metal amp Electricals – FUEL LEVEL SENSOR AND 7 POLE SOCKET – UPTO KNT1226 amp KNG939
78. Sheet Metal amp Electricals – FUEL TANK AND BATTERY MOUNTING (PART 1) – UPTO KNT1226 amp KNG 939
79. Sheet Metal amp Electricals – FUEL TANK AND BATTERY MOUNTING (PART 1)-FROM KNG 940
80. Sheet Metal amp Electricals – FUEL TANK AND BATTERY MOUNTING (PART 2) – UPTO KNT1226 amp KNG 939
81. Sheet Metal amp Electricals – FUEL TANK AND BATTERY MOUNTING (PART 2)-FROM KNG 940
82. Sheet Metal amp Electricals – GLOW PLUG KIT
83. Sheet Metal amp Electricals – HEAD LAMP AND SCUTTLE LAMP
84. Sheet Metal amp Electricals – HOOD AND FRONT END ASSEMBLY (PART 1)
85. Sheet Metal amp Electricals – HOOD AND FRONT END ASSEMBLY (PART 2)
86. Sheet Metal amp Electricals – HOOD AND FRONT END ASSEMBLY (PART 3)
87. Sheet Metal amp Electricals – INSTRUMENT PANEL AND SWITCHES
88. Sheet Metal amp Electricals – PLOUGH LAMP AND COMBINATION LAMP
89. Sheet Metal amp Electricals – REAR STRUCTURE AND PLATFORM (PART 1) – UPTO KNT1226 amp KNG939
90. Sheet Metal amp Electricals – REAR STRUCTURE AND PLATFORM (PART 1)-FROM KNG 940
91. Sheet Metal amp Electricals – REAR STRUCTURE AND PLATFORM (PART 2) – UPTO KNT1226 amp KNG939
92. Sheet Metal amp Electricals – REAR STRUCTURE AND PLATFORM (PART 2)-FROM KNG 940
93. Sheet Metal amp Electricals – SCUTTLE ASSEMBLY
94. Sheet Metal amp Electricals – STARTER MOTOR AND ALTERNATOR
95. Sheet Metal amp Electricals – STICKERS, GRAPHICS, DECALS, EPA PLATES – UPTO KNG939
96. Sheet Metal amp Electricals – STICKERS, GRAPHICS, DECALS, EPA PLATES-FROM KNG 940
97. Steering amp Linkages – POWER STEERING PIPING SUB-ASSEMBLY – 4WD (CARRARAO) – UPTO KNG 990
98. Steering amp Linkages – POWER STEERING PIPING SUB-ASSEMBLY – 4WD (DANA) – FROM KNG 991
99. Steering amp Linkages – STEERING
100. Steering amp Linkages – TRUNNION
101. Steering amp Linkages – WHEEL AND COLUMN (PART 1)
102. Steering amp Linkages – WHEEL AND COLUMN (PART 2)
103. Transmission – DIFFERENTIAL
104. Transmission – DIFFERENTIAL LOCK SYSTEM
105. Transmission – DUAL PTO-FROM KNG 940 (PART1)
106. Transmission – DUAL PTO-FROM KNG 940 (PART2)
107. Transmission – F-R SHUTTLE MECHANISM
108. Transmission – IPTO OUTER LINKAGES – UPTO KNT 1226
109. Transmission – IPTO OUTER LINKAGES-FROM KNG 940
110. Transmission – PTO DRIVE SHAFT AND MAIN DRIVE SHAFT (PART1)-UPTO KNT1226 amp KNG939
111. Transmission – PTO DRIVE SHAFT AND MAIN DRIVE SHAFT (PART2)-UPTO KNT1226 amp KNG939
112. Transmission – PTO DRIVE SHAFT AND MAIN DRIVE SHAFT-FROM KNG 940
113. Transmission – PTO OUTER LINKAGES – UPTO KNT 1226
114. Transmission – PTO SHAFT (FRONT)
115. Transmission – PTO SHIFTING SYSTEM – UPTO KNG 939
116. Transmission – RANGE COUNTERSHAFT (PART 1)
117. Transmission – RANGE COUNTERSHAFT (PART 2)
118. Transmission – RANGE SHIFTING SYSTEM (PART 1)
119. Transmission – RANGE SHIFTING SYSTEM (PART 2)

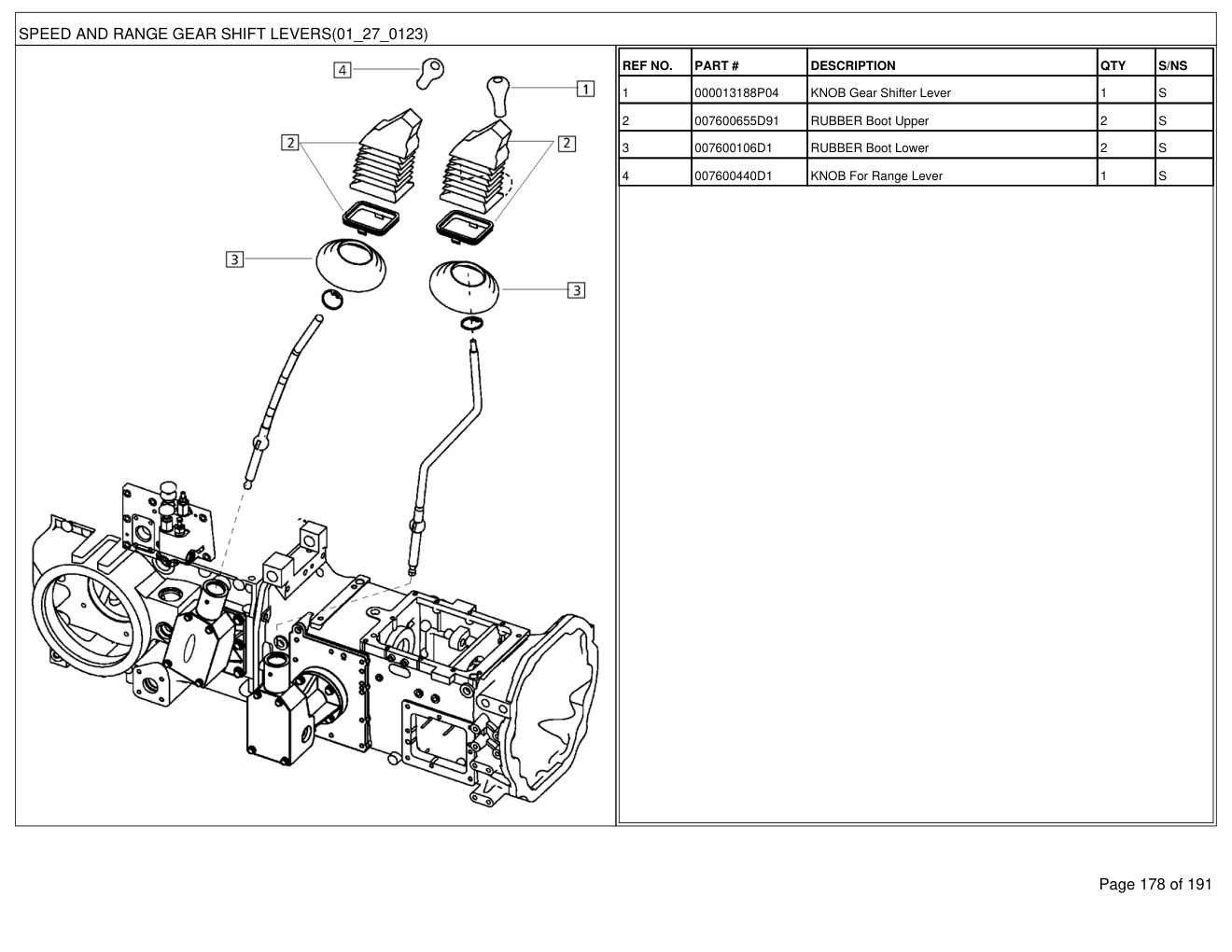

120. Transmission – REAR HOUSING (4WD)-UPTO KNG 939
121. Transmission – REAR HOUSING – FROM KNG 940
122. Transmission – REVERSIBLE PTO (PART 1) – UPTO KNT 1226
123. Transmission – REVERSIBLE PTO (PART 2) – UPTO KNT 1226
124. Transmission – SCAVENGING PUMP AND LUBRICATION-FROM KNG 940
125. Transmission – SCAVENGING PUMP AND LUBRICATION-UPTO KNT1226 amp KNG939
126. Transmission – SHUTTLE SHIFTING
127. Transmission – SPEED AND RANGE GEAR SHIFT LEVERS
128. Transmission – SPEED COUNTERSHAFT
129. Transmission – SPEED HOUSING-FROM KNG 940
130. Transmission – SPEED HOUSING-UPTO KNT1226 amp KNG939
131. Transmission – SPEED SHIFTING SYSTEM (PART 1)
132. Transmission – SPEED SHIFTING SYSTEM (PART 2)
133. Transmission – SPEED TOP SHAFT
134. Transmission – SPLINE SHAFT
135. Transmission – TRANSFER CASE
136. Wheels – RIM AND DISC
137. Wheels – TIRES, ROPS AND SMV KIT
