Mahindra E350 Tractor Parts Manual

Type Of Manual: Parts Manual
Number of Pages: 125
Size: 17.4MB
Format: PDF

Categories: Mahindra, Mahindra Parts Manual PDF

Description

Description

Model List:
- E350

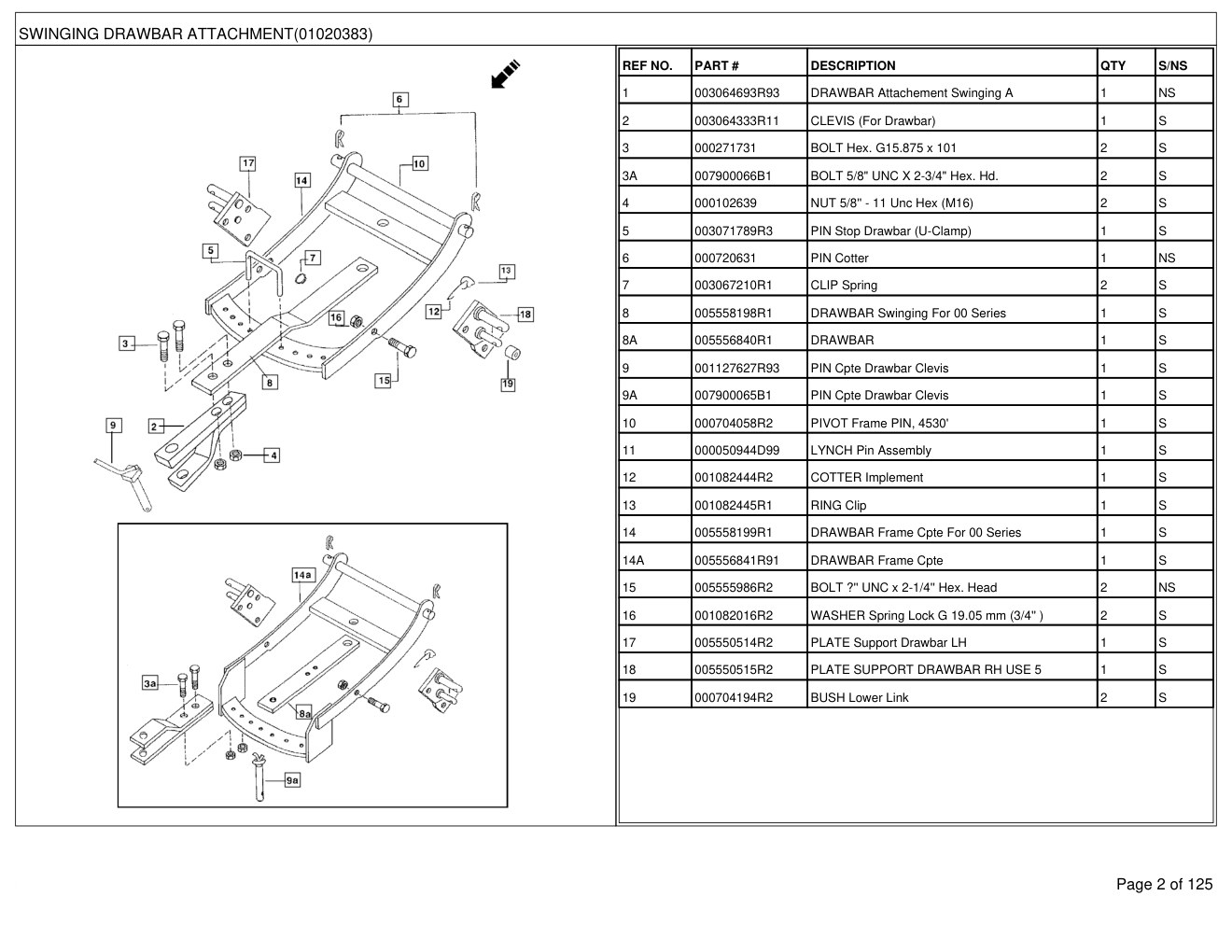

1. Attachments – SWINGING DRAWBAR ATTACHMENT
2. Brakes – DISC BRAKES AND LINKAGES – (PART 1)
3. Brakes – DISC BRAKES AND LINKAGES – (PART 2)
4. Brakes – FOOT BRAKES AND LINKAGES
5. Brakes – HAND BRAKE LINKAGES
6. C.R.P.T.O. amp Transmission – C.R.P.T.O. – GEARS amp SHAFT
7. C.R.P.T.O. amp Transmission – DIFFERENTIAL – (PART 1)
8. C.R.P.T.O. amp Transmission – DIFFERENTIAL – (PART 2)
9. C.R.P.T.O. amp Transmission – DIFFERENTIAL LOCK
10. C.R.P.T.O. amp Transmission – GEAR SHIFTER MECHANISM amp TRANSMISSION CASE COVER FRONT – (SLIDING MESH TRANS.) – (PART 1)
11. C.R.P.T.O. amp Transmission – GEAR SHIFTER MECHANISM amp TRANSMISSION CASE COVER FRONT – (SLIDING MESH TRANS.) – (PART 2)

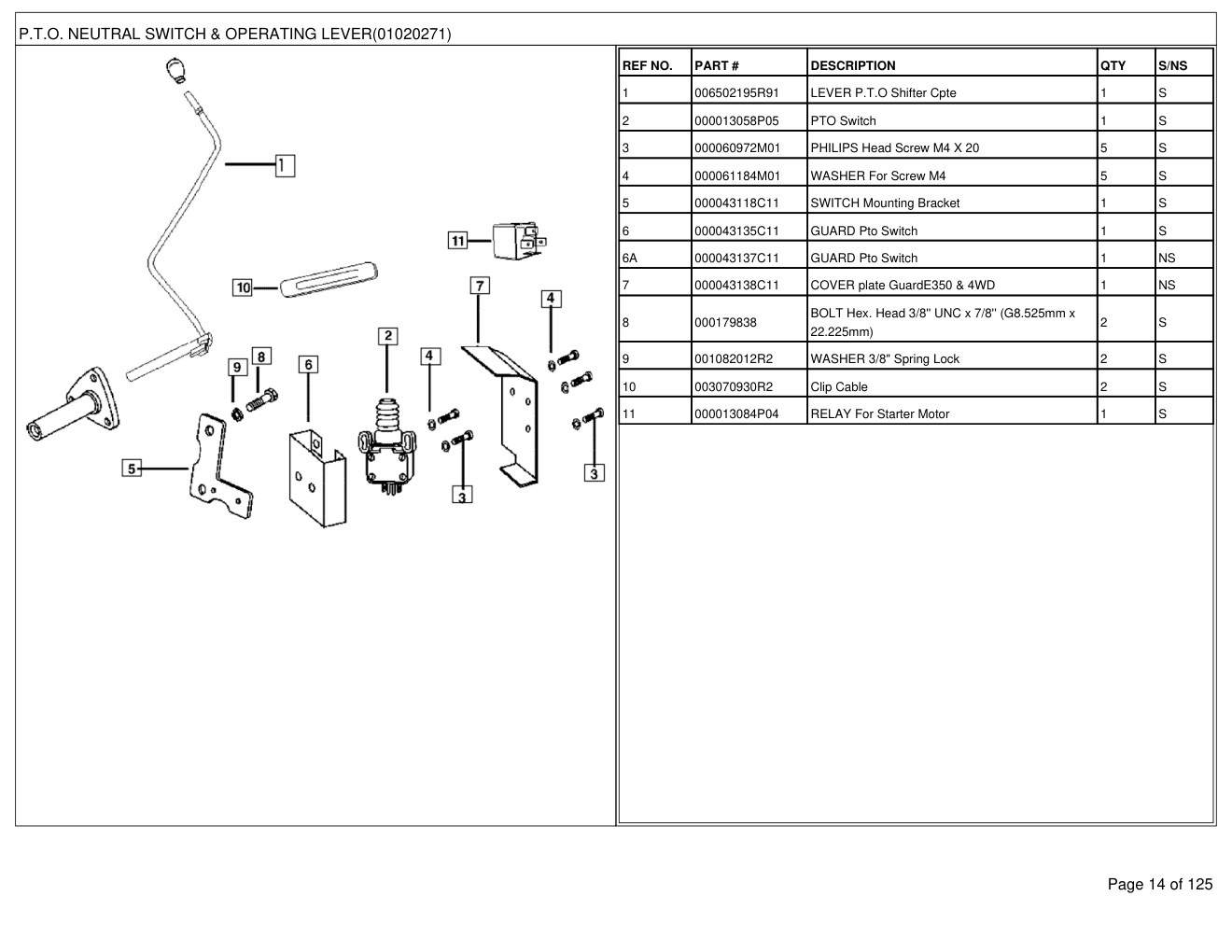

12. C.R.P.T.O. amp Transmission – P.T.O. NEUTRAL SWITCH amp OPERATING LEVER
13. C.R.P.T.O. amp Transmission – REAR AXLE CARRIER AND REAR AXLE – (PART 1)
14. C.R.P.T.O. amp Transmission – REAR AXLE CARRIER AND REAR AXLE – (PART 2)
15. C.R.P.T.O. amp Transmission – REAR P.T.O. SHAFT amp OPERATING LEVER (PART 1)
16. C.R.P.T.O. amp Transmission – REAR P.T.O. SHAFT amp OPERATING LEVER (PART 2)
17. C.R.P.T.O. amp Transmission – TRANSMISSION CASE
18. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS AND SHAFTS – SLIDING MESH – (PART 1)
19. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS AND SHAFTS – SLIDING MESH – (PART 2)
20. C.R.P.T.O. amp Transmission – TRANSMISSION GEARS AND SHAFTS – SLIDING MESH – (PART 3)
21. Clutch – CLUTCH ASSEMBLY
22. Clutch – CLUTCH HOUSING amp CONNECTIONS (C.R.P.T.O. _ DUAL CLUTCH)
23. Clutch – CLUTCH HOUSING AND CONNECTIONS (SINGLE CLUTCH) – (PART 1)
24. Clutch – CLUTCH HOUSING AND CONNECTIONS (SINGLE CLUTCH) – (PART 2)
25. Electricals – ALTERNATOR DRIVE amp MOUNTING
26. Electricals – CABLE CLIPS
27. Electricals – HEAD LAMP ASSEMBLY
28. Electricals – HORN
29. Electricals – INSTRUMENT PANEL, SCUTTLE PANEL, GAUGES, SWITCHES, BULBS amp FUSES – (PART 1)
30. Electricals – INSTRUMENT PANEL, SCUTTLE PANEL, GAUGES, SWITCHES, BULBS amp FUSES – (PART 2)
31. Electricals – PARKING AND TURN SIGNAL LAMP ASSEMBLY
32. Electricals – PLOW LAMP amp 3 IN 1 LAMP
33. Electricals – STARTER MOTOR ASSEMBLY
34. Electricals – WIRING HARNESS (REGULAR)
35. Electricals – WIRING HARNESS (TIER II NORMS)
36. Engine – AIR INTAKE SYSTEM (REGULAR) – (PART 1)
37. Engine – AIR INTAKE SYSTEM (REGULAR) – (PART 2)
38. Engine – AIR INTAKE SYSTEM (TIER II NORMS) – (PART 1)
39. Engine – AIR INTAKE SYSTEM (TIER II NORMS) – (PART 2)
40. Engine – COOLING SYSTEM – (PART 1)
41. Engine – COOLING SYSTEM – (PART 2)
42. Engine – COOLING SYSTEM – (PART 3)
43. Engine – CRANKCASE FRONT COVER
44. Engine – CRANKCASE WITH OIL PAN – (PART 1)
45. Engine – CRANKCASE WITH OIL PAN – (PART 2)
46. Engine – CRANKSHAFT ASSEMBLY – (PART 1)
47. Engine – CRANKSHAFT ASSEMBLY – (PART 2)
48. Engine – CRANKSHAFT ASSEMBLY – (PART 3)
49. Engine – CRANKSHAFT ASSEMBLY – (PART 4)
50. Engine – CYLINDER HEAD ASSEMBLY (REGULAR) (PART 1)
51. Engine – CYLINDER HEAD ASSEMBLY (REGULAR) (PART 2)
52. Engine – CYLINDER HEAD ASSEMBLY (TIER II NORMS)
53. Engine – ENGINE CPTE., MAJOR CRANKCASE ASSEMBLY (REGULAR)
54. Engine – ENGINE CPTE., MAJOR CRANKCASE ASSEMBLY (TIER II NORMS)
55. Engine – EXHAUST SYSTEM (UPDRAFT) (TIER II NORMS)
56. Engine – EXHAUST SYSTEM (UPDRAFT) REGULAR
57. Engine – FUEL INJECTION SYSTEM (REGULAR) – (PART 1)
58. Engine – FUEL INJECTION SYSTEM (REGULAR) – (PART 2)
59. Engine – FUEL INJECTION SYSTEM (REGULAR) – (PART 3)
60. Engine – FUEL INJECTION SYSTEM (TIER II NORMS) – (PART 1)
61. Engine – FUEL INJECTION SYSTEM (TIER II NORMS) – (PART 2)
62. Engine – LUB. OIL FILTER ASSEMBLY
63. Engine – LUBRICATION SYSTEM (OIL PUMP)
64. Engine – PACKAGE GASKET (ENGINE) CPTE.
65. Engine – SLEEVE, PISTON amp CONNECTING ROD ASSEMBLY
66. Engine – VALVE HOUSING COVER (REGULAR)
67. Engine – VALVE HOUSING COVER (TIER II NORMS)
68. Engine – VALVE TRAIN – (PART 1)
69. Engine – VALVE TRAIN – (PART 2)
70. Fast Moving Parts List – FAST MOVING PARTS LIST 1
71. Fast Moving Parts List – FAST MOVING PARTS LIST 2
72. Front Axle – FRONT AXLE (WITHOUT POWER CYL. BRACKET), STAY ROD amp FRONT AXLE WEIGHTS – (PART 1)
73. Front Axle – FRONT AXLE (WITHOUT POWER CYL. BRACKET), STAY ROD amp FRONT AXLE WEIGHTS – (PART 2)
74. Front Axle – FRONT AXLE SUPPORT, FRONT END WEIGHTS amp BRACKETS
75. Front Axle – FRONT AXLE SUPPORT, FRONT END WEIGHTS amp BRACKETS (CUT-OFF SR. NO. EMA 3700)
76. Front Axle – FRONT WHEEL HUB ASSEMBLY – (PART 1)
77. Front Axle – FRONT WHEEL HUB ASSEMBLY – (PART 2)
78. Hydraulics – BELL CRANK ASSEMBLY
79. Hydraulics – CONTROL VALVE – CYLINDER HEAD – (PART 1)
80. Hydraulics – CONTROL VALVE – CYLINDER HEAD – (PART 2)
81. Hydraulics – CONTROL VALVE ASSEMBLY
82. Hydraulics – CONTROL VALVE BODY – (PART 1)
83. Hydraulics – CONTROL VALVE BODY – (PART 2)
84. Hydraulics – CONTROL VALVE BODY – (PART 3)
85. Hydraulics – HYDRAULIC CONTROL LEVERS – (PART 1)
86. Hydraulics – HYDRAULIC CONTROL LEVERS – (PART 2)
87. Hydraulics – HYDRAULIC CONTROL LEVERS – (PART 3)
88. Hydraulics – HYDRAULIC CONTROL LEVERS – (PART 4)
89. Hydraulics – HYDRAULIC LIFT ARMS
90. Hydraulics – HYDRAULIC LIFT HOUSING – (PART 1)
91. Hydraulics – HYDRAULIC LIFT HOUSING – (PART 2)
92. Hydraulics – HYDRAULIC PIPES – SUCTION amp PRESSURE PIPES
93. Hydraulics – HYDRAULIC PUMP SINGLE STAGE
94. Hydraulics – THREE POINT LINKAGES – (PART 1)
95. Hydraulics – THREE POINT LINKAGES – (PART 2)
96. Rim amp Disc – FRONT amp REAR WHEEL RIM AND DISC
97. Seat – SLIDING SEAT
98. Sheet Metal – BATTERY MOUNTING
99. Sheet Metal – DECALS (SAFETY amp EPA CERTIFICATION)
100. Sheet Metal – FENDERS, FOOT PLATE amp TOOL BOX
101. Sheet Metal – FUEL TANK
102. Sheet Metal – HOOD amp RADIATOR GRILLE
103. Sheet Metal – TOOL BOX
104. Steering – POWER STEERING PIPES amp FITTINGS – (PART 2)
105. Steering – STEERING GEAR BOX – (PART 1)
106. Steering – STEERING GEAR BOX – (PART 2)
107. Steering – STEERING KNUCKLES, ARMS, DRAG LINK amp TIE ROD (MANUAL STEERING) – (PART 1)
108. Steering – STEERING KNUCKLES, ARMS, DRAG LINK amp TIE ROD (MANUAL STEERING) – (PART 2)
109. Steering – STEERING WHEEL
110. Throttle Linkages – FOOT THROTTLE LINKAGES
111. Throttle Linkages – HAND THROTTLE amp FUEL SHUT OFF LINKAGES (REGULAR)
112. Throttle Linkages – HAND THROTTLE (TIER II NORMS) – (PART 1)
113. Throttle Linkages – HAND THROTTLE (TIER II NORMS) – (PART 2)
