Manitou MT-X 1030S MINING AWP Parts Manual 649018

Type Of Manual: Parts Manual
Manual ID: 649018
Format: PDF
Size: 41.3MB
Number of Pages: 382

Category: Manitou Parts Manual PDF

Description

Notice: Undefined index: active_product in /usr/local/lsws/everymanuals.com/html/wp-content/plugins/text-to-speech-mh/public/class-text-to-speech-mh-public.php on line 115

Model List:
- MT-X 1030S MINING AWP

1. EXPLANATION OF SYMBOLS
1.1. EXPLANATION OF SYMBOLS
2. GENERAL INSTRUCTIONS AND SAFETY NOTICE
2.1. _ADHESIVE SIGNS
2.1.1. A5111 ADHESIVES (649018)
2.1.2. A5112 ADHESIVES (649018)
2.1.3. A5113 ADHESIVES (649018)
2.1.4. A5114 ADHESIVES (649018)
2.1.5. A5115 ADHESIVES (649018)
3. SERVICE PARTS AND FILTERS
3.1. FILTERSBELT
3.1.1. A5044 FILTERS AND BELT (649018)
4. ENGINE
4.1. ENGINE_271255MOD
4.1.1. AP5170 CYLINDER BLOCK (271255MOD)
4.1.2. AP5171 CRANKSHAFT, PISTONS AND CONNECTING RODS (271255MOD)
4.1.3. AP5172 CYLINDER HEAD (271255MOD)
4.1.4. AP5173 ROCKER SHAFT (271255MOD)
4.1.5. AP5174 TIMING (271255MOD)
4.1.6. AP5175 LUBRICATING BREATHER LUBRICATING OIL FILTER (271255MOD)
4.1.7. AP5177 LUBRICATING OIL SUMP DIPSTIK FILLER TUBE (271255MOD)
4.1.8. AP5178 LUBRICATING OIL FILLER (271255MOD)
4.1.9. AP5179 APPLICATION MISCELLANEOUS AND AUXILIARIES (271255MOD)
4.1.10. AP5180 WATER PUMP (271255MOD)
4.1.11. AP5181 WATER OUTLET AND INLET (271255MOD)
4.1.12. AP5182 FUEL INJECTION EQUIPMENT (DIESEL) (271255MOD)
4.1.13. AP5183 STARTER MOTOR (271255MOD)
4.1.14. AP5184 ALTERNATOR AND GENERATOR (271255MOD)
4.1.15. AP5185 HEATER PLUGS (271255MOD)
4.1.16. AP5186 LEAKOFF PIPES (271255MOD)
4.2. _COMPLETE
4.2.1. A5254 ENGINETRANSMISSION ADAPTATION (649018)
4.2.2. A5259 ENGINETRANSMISSION ADAPTATION (649018)
4.3. _INTAKE SYSTEM EXHAUST
4.3.1. A5255 ENGINETRANSMISSION ADAPTATION (649018)
4.4. _FUEL SUPPLY SYSTEM
4.4.1. C5033 FUEL CIRCUIT (649018)
4.5. _COOLING SYSTEM
4.5.1. A5253 ENGINETRANSMISSION ADAPTATION (649018)
4.5.2. A5256 ENGINETRANSMISSION ADAPTATION (649018)

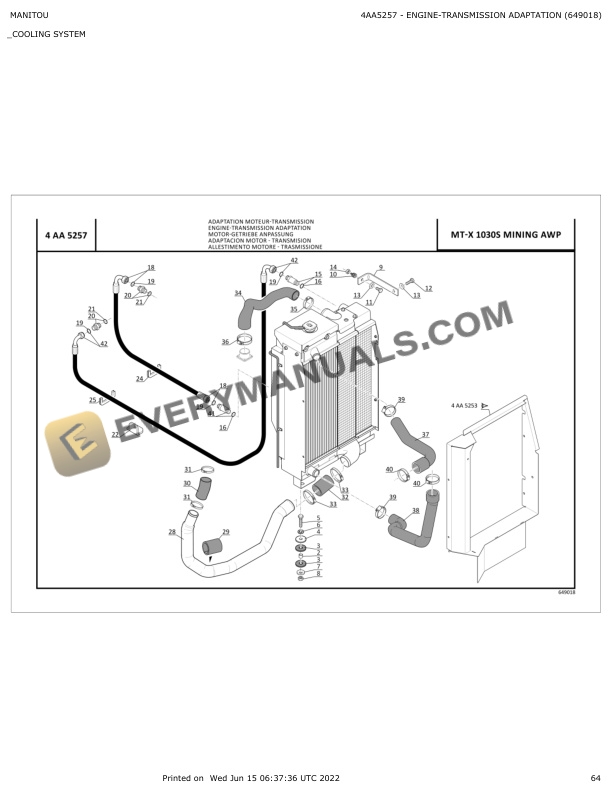

4.5.3. A5257 ENGINETRANSMISSION ADAPTATION (649018)
4.5.4. A5258 ENGINETRANSMISSION ADAPTATION (649018)
5. TRANSMISSION
5.1. BEVEL DRIVE
5.1.1. BP5020 BEVEL DRIVE (222758MOD)
5.2. BOITE DE VITESSES
5.2.1. BP5028 GEARBOX (258799MOD)
5.2.2. BP5029 GEARBOX (258799MOD)
5.2.3. BP5030 GEARBOX (258799MOD)
5.2.4. BP5031 GEARBOX (258799MOD)
5.3. _PROPSHAFT
5.3.1. BP294 CARDAN COUPLING GEAR BOX REAR AXLE (295108MOD)
5.3.2. BP295 CARDAN COUPLING GEAR BOX FRONT AXLE (295119MOD)
5.3.3. BP342 CARDAN COUPLING ENGINE ANGLE RETURN (299862MOD)
6. AXLE ASSEMBLY AXLE
6.1. _REAR
6.1.1. REAR AXLE_925879MOD
6.2. _FRONT
6.2.1. FRONT AXLE_313919MOD
6.3. _WHEELS
6.3.1. A5032 WHEELS (649018)
7. BRAKE
7.1. A5045 BRAKES CIRCUIT (649018)
7.2. A5046 BRAKES CIRCUIT (649018)
7.3. A5047 BRAKES CIRCUIT (649018)
7.4. A5048 BRAKES CIRCUIT (649018)
7.5. B5030 PEDALS LINKAGE (649018)
7.6. Z5003 BRAKES CIRCUIT (649018)
8. LIFT STRUCTURE
8.1. A5088 TELESCOPIC BOOM (Main boom) (649018)
9. HYDRAULIC
9.1. _CIRCUIT
9.1.1. A5093 HYDRAULIC (Principal circuit) (649018)
9.1.2. A5094 HYDRAULIC (Principal circuit) (649018)
9.1.3. E5160 HYDRAULIC (Lifting circuit) (649018)
9.1.4. E5161 HYDRAULIC (Lifting circuit) (649018)
9.1.5. E5162 HYDRAULIC (Telescope circuit) (649018)
9.1.6. E5163 HYDRAULIC (Telescope circuit) (649018)
9.1.7. E5164 HYDRAULIC (Jib circuit) (649018)
9.1.8. E5165 HYDRAULIC (Jib circuit) (649018)
9.1.9. E5166 HYDRAULIC (Jib circuit) (649018)
9.1.10. F5008 OIL RETURN KIT ON BOOM (649018)
9.1.11. F5009 OIL RETURN KIT ON BOOM (649018)
9.1.12. F5010 SAFETY SYSTEM (649018)
9.1.13. F5011 SAFETY SYSTEM (649018)
9.1.14. G5042 HYDRAULIC (STABILIZER CIRCUIT) (649018)
9.1.15. A5013 HYDRAULIC (Steering circuit) (649018)
9.1.16. A5026 CENTRALISED GREASING (649018)

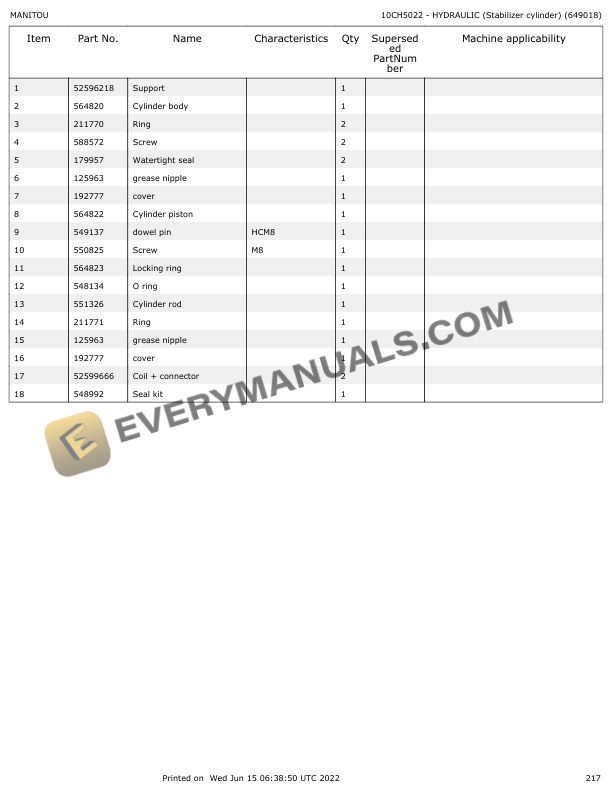

9.1.17. H5021 HYDRAULIC (Stabilizer cylinder) (649018)
9.2. _VALVE BANK
9.2.1. A5166 CONTROL VALVE (52578116MOD)
9.2.2. A5167 CONTROL VALVE (52600750MOD)
9.2.3. A5082 HYDRAULIC (DETAILS) (649018)
9.2.4. A5168 CONTROL VALVE (52600750MOD)
9.3. _RAM
9.3.1. C5042 HYDRAULIC (Telescope cylinder) (649018)
9.3.2. C5041 HYDRAULIC (Telescope cylinder) (649018)
9.3.3. A5035 HYDRAULIC (Lifting cylinder) (648018)
9.3.4. D5029 HYDRAULIC (Tilt cylinder) (649018)
9.3.5. F5042 HYDRAULIC (Stabilizer cylinder) (649018)
9.3.6. H5022 HYDRAULIC (Stabilizer cylinder) (649018)
9.3.7. B5034 HYDRAULIC (Compensation cylinder) (649018)
10. ELECTRICITY
10.1. _CIRCUIT HARNESS
10.1.1. A5331 ELECTRICITY (Fuse and relay box wiring) (649018)
10.1.2. A5332 ELECTRICAL CONNECTOR (Fuse and relay box wiring) (649018)
10.1.3. A5333 ELECTRICITY (Fuse and relay box wiring) (649018)
10.1.4. A5334 ELECTRICAL CONNECTOR (Fuse and relay box wiring) (649018)
10.1.5. A5550 ELECTRICITY (Details) (649018)
10.1.6. A5551 ELECTRICITY (Details) (649018)
10.1.7. A5552 ELECTRICITY (Details) (649018)
10.1.8. A5553 ELECTRICITY (Details) (649018)
10.1.9. A5554 ELECTRICITY (Fuse and relay box) (649018)
10.1.10. A5555 ELECTRICITY (Basket predisposition) (649018)
10.1.11. A5556 ELECTRICITY (Battery cable) (649018)
10.1.12. B5161 ELECTRICITY (Basket predisposition) (649018)
10.1.13. B5162 ELECTRICITY (Basket predisposition) (649018)
10.1.14. B5163 ELECTRICITY (Basket predisposition) (649018)
10.1.15. B5164 ELECTRICITY (Basket predisposition) (649018)
10.1.16. D5070 ELECTRICITY (Basket predisposition) (649018)
10.1.17. D5069 ELECTRICITY (Engine electric system) (649018)
10.1.18. F5011 BOOM SUSPENSION (649018)
10.1.19. G5042 SAFETY SYSTEM (649018)
10.1.20. G5043 SAFETY SYSTEM (649018)
10.2. _LIGHTING SIGNALING
10.2.1. A5076 FRONT WORKING HEADLIGHT (649018)
10.2.2. A5077 REAR WORKING HEADLIGHT (649018)
10.2.3. A5078 POWER REAR WORKING HEADLIGHT (649018)
10.2.4. B5158 ELECTRICITY (Details) (649018)
10.2.5. B5159 ELECTRICITY (Details) (649018)
10.3. _SAFETY SYSTEM
10.3.1. B5160 ELECTRICITY (Details) (649018)
10.3.2. B5167 ELECTRICITY (Alarm starter kit) (649018)
10.3.3. B5168 KIT EMERGENCY STOP (649018)
10.3.4. G5044 SAFETY SYSTEM (649018)
10.4. _SELECTOR MANIPULATOR
10.4.1. B5165 ELECTRICITY (Basket predisposition) (649018)
10.4.2. B5166 TELECAMERAS (649018)
10.4.3. C5041 ELECTRICITY (Cab structure) (649018)
10.4.4. C5042 ELECTRICITY (Basket predisposition) (649018)
11. OPERATOR STATION
11.1. CAB_318766MOD
11.1.1. B5201 CAB (Details) (318766MOD)
11.1.2. B5202 CAB (Details) (318766MOD)
11.1.3. B5203 CAB (Details) (318766MOD)
11.1.4. B5204 CAB (Details) (318766MOD)
11.1.5. B5205 CAB (Details) (318766MOD)
11.1.6. B5206 CAB (Details) (318766MOD)
11.2. _CAB
11.2.1. A1275 SEAT (314253MOD)
11.2.2. A5092 CAB ADAPTATION (649018)
11.2.3. A5096 CAB ADAPTATION (649018)
11.2.4. C5034 CAB ADAPTATION (649018)
11.3. _HEATER AIR CONDITIONING
11.3.1. D5401 HEATING (649018)
12. FRAME BODY
12.1. A5037 FRAME COUNTERWEIGHT (649018)
12.2. A5092 PROTECTION KIT (649018)
12.3. A5147 BODY (649018)
12.4. A5148 BODY (649018)
12.5. A5149 BODY (649018)
13. ADDITIONAL EQUIPMENT
13.1. ZZ5051 OPTION (649018)
13.2. A5003 ANGLE INDICATOR (237825MOD)
13.3. A5056 LAMPS GRIDS (927674MOD)
13.4. A5056A LAMPS GRIDS (927674MOD)
13.5. A5012 WHEELS (928136MOD)
13.6. A5046 LED FLASHING LIGHTS ON CABIN (928964MOD)
13.7. A5046A LED FLASHING LIGHTS ON CABIN (928964MOD)
13.8. A5059 ENGINE ADAPTATION EXHAUST MUFFLER (928967MOD)
13.9. A5060 ENGINETRANSMISSION ADAPTATION (929168MOD)
13.10. A5060A ENGINETRANSMISSION ADAPTATION (929168MOD)
13.11. A5023 FIRST AID KIT (929890MOD)
13.12. A5023A FIRST AID KIT (929890MOD)
13.13. A5037 FIRE EXTINGUISHER (931784MOD)
13.14. A5037A FIRE EXTINGUISHER (931784MOD)
13.15. A5034 LED FLASHING LIGHTS (931873MOD)
13.16. B5011 WEDGE KIT WHEEL STOPS (53003089MOD)
13.17. A5156 ENGINE BELT GUARD (53008956MOD)
13.18. B5156 LED LIGHTS (52572069MOD)
13.19. A5090 SEAT (52572089MOD)
13.20. B5155 RETRACTABLE LIGHTS (52572160MOD)
14. ATTACHMENTS
15. DIAGNOSTIC TOOL AND SOFTWARE
