Honda S2000 2005 Electrical Diagrams L4-2.2L

Date: 2005
Type Of Manual: Electrical Diagrams
Engine: L4-2.2L
Number of Pages: 369
Size: 33.9MB
Format: PDF

Category: Honda Wiring Diagrams PDF

Description

Notice: Undefined index: active_product in /usr/local/lsws/everymanuals.com/html/wp-content/plugins/text-to-speech-mh/public/class-text-to-speech-mh-public.php on line 115

Model List:
- S2000

1. Air Conditioning – Manual A_C Circuit
2. Anti-Lock Brakes
3. Anti-Theft – Anti-theft Circuit
4. Anti-Theft – Immobilizer Circuit
5. Computer Data Lines
6. Cooling Fans
7. Cruise Control
8. Defogger
9. Door Locks – W_ Anti-theft
10. Door Locks – W_O Anti-theft
11. Electronic Power Steering
12. Engine Controls
13. Exterior Lights – Back-up Lamps Circuit
14. Exterior Lights – Exterior Lamps Circuit

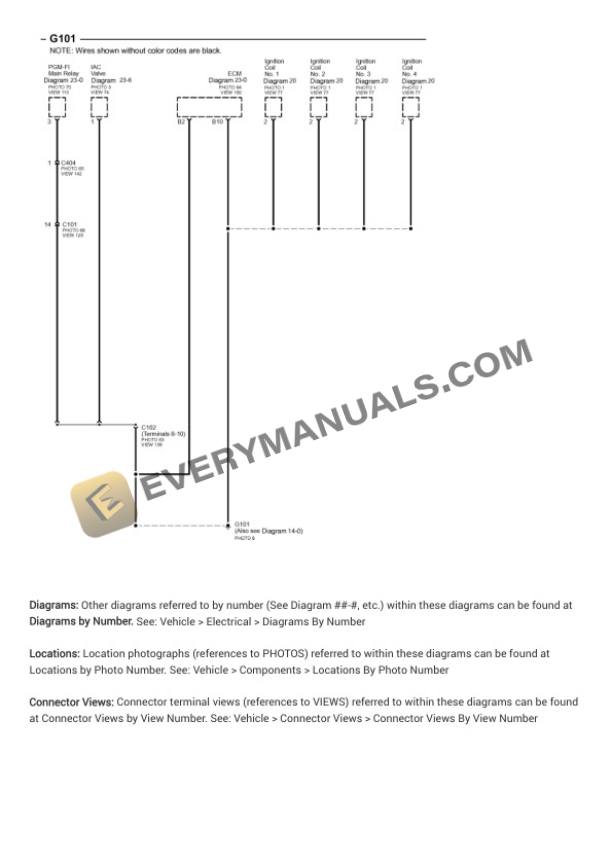

15. Ground Distribution
16. Headlights – W_ DRL
17. Headlights – W_O DRL
18. Instrument Cluster
19. Interior Lights – Courtesy Lamps Circuit
20. Interior Lights – Instrument Illumination Circuit
21. Mirrors
22. Power Distribution
23. Power Tops
24. Power Windows
25. Sound Systems – Canada W_ CD Changer
26. Sound Systems – USA W_ CD Changer amp W_ Satellite Radio
27. Sound Systems – USA W_O CD Changer amp W_ Satellite Radio
28. Sound Systems – W_O CD Changer or Satellite Radio
29. Starting_Charging – Charging Circuit
30. Starting_Charging – Starting Circuit
31. Supplemental Restraints
32. Trunk, Tailgate, Fuel Doors
33. Warning Systems
34. Wiper_Washer
35. Brake Warning Indicator
36. Cigarette Lighter
37. Circuit 11 Interior Lights (Positive)
38. Circuit 12 Interior Lights (Negative)
39. Circuit 13 Brake Pedal Position
40. Circuit 200 Trunk Lid Position
41. Circuit 25 Parking Brake Position
42. Circuit 402 Intermittent Wiper
43. Circuit 61 Horn Relay Control
44. Circuit 702 Brake Fluid Level
45. Circuit D04 Power Source For ECM Control
46. Circuit D46 Reference Voltage For ECM Sensors
47. Circuit Diagrams_001
48. Circuit Diagrams_002
49. Circuit Diagrams_003
50. Circuit Diagrams_004
51. Circuit Diagrams_005
52. Circuit Diagrams_006
53. Circuit Diagrams_007
54. Circuit Diagrams_008
55. Circuit Diagrams_009
56. Circuit Diagrams_010
57. Circuit Diagrams_011
58. Circuit Diagrams_012
59. Circuit Diagrams_013
60. Circuit Diagrams_014
61. Circuit Diagrams_015
62. Circuit Diagrams_016
63. Circuit Diagrams_017
64. Circuit Diagrams_018
65. Circuit Diagrams_019
66. Circuit Diagrams_020
67. Circuit Diagrams_021
68. Circuit Diagrams_022
69. Circuit Diagrams_023
70. Circuit Diagrams_024
71. Circuit Diagrams_025
72. Circuit Diagrams_026
73. Circuit Diagrams_027
74. Circuit Diagrams_028
75. Circuit Diagrams_029
76. Circuit E93 Vehicle Speed Sensor Signal 1
77. Circuit E94 Vehicle Speed Sensor Signal 2
78. Circuit F28 Service Check Signal
79. Circuit F54 DLC Input_Output
80. Circuit M36 Engine Start Switch Signal
81. Circuit M37 Clutch Pedal Position
82. Circuit Z28 Ground For ECM Sensors
83. Console
84. Cooling System
85. Diagram 10-0
86. Diagram 10-1
87. Diagram 10-10
88. Diagram 10-11
89. Diagram 10-12
90. Diagram 10-2
91. Diagram 10-3
92. Diagram 10-4
93. Diagram 10-5a
94. Diagram 10-5b
95. Diagram 10-6
96. Diagram 10-7
97. Diagram 10-8a
98. Diagram 10-8b
99. Diagram 10-9a
100. Diagram 10-9b
101. Diagram 23-0
102. Diagram 23-1
103. Diagram 23-10
104. Diagram 23-2
105. Diagram 23-3
106. Diagram 23-4
107. Diagram 23-5
108. Diagram 23-6
109. Diagram 23-7
110. Diagram 23-8
111. Diagram 23-9

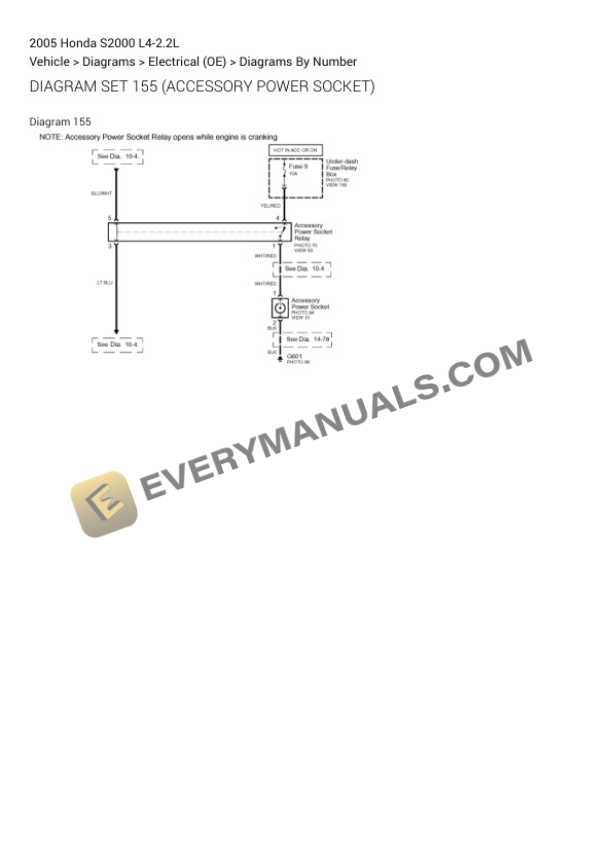

112. Diagram Set 10 (Power Distribution)
113. Diagram Set 110 (Exterior Lights)
114. Diagram Set 114 (Interior Lights)
115. Diagram Set 120 (Power Windows)
116. Diagram Set 121 (Convertible Top)
117. Diagram Set 130 (Keyless_Power Door Locks)
118. Diagram Set 132 (Immobilizer System)
119. Diagram Set 133 (Security Alarm System)
120. Diagram Set 134 (Trunk Lid Opener)
121. Diagram Set 14 (Ground Distribution)
122. Diagram Set 141 (Power Mirrors)
123. Diagram Set 15 (Splice and Junction Connector Details)
124. Diagram Set 150 (Audio System)
125. Diagram Set 155 (Accessory Power Socket)
126. Diagram Set 20 (Ignition System)
127. Diagram Set 21 (Starting System)
128. Diagram Set 22 (Charging System)

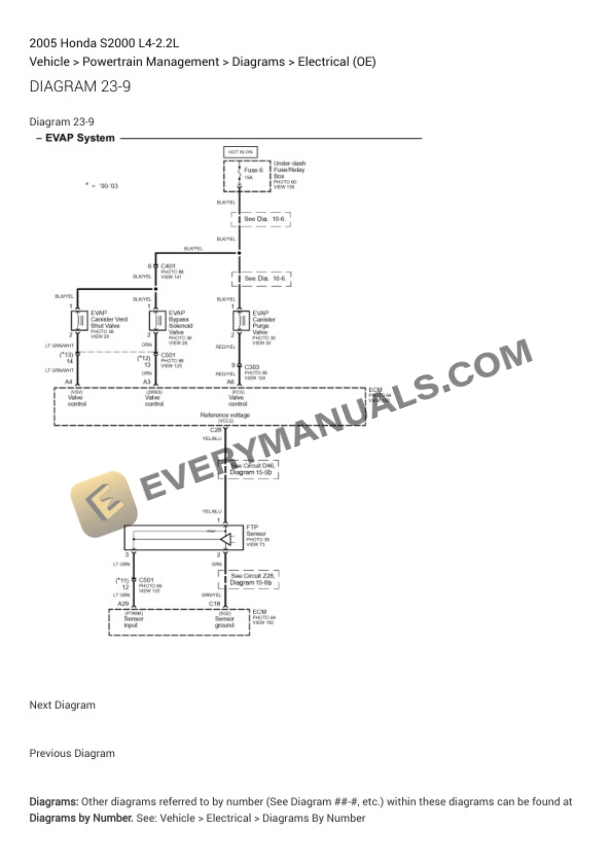

129. Diagram Set 23 (Fuel and Emissions)
130. Diagram Set 31 (VTEC Control System)
131. Diagram Set 34 (Cruise Control)
132. Diagram Set 40 (Horn)
133. Diagram Set 44 (ABS (Anti-Lock Brake System))
134. Diagram Set 45 (EPS (Electrical Power Steering))
135. Diagram Set 47 (SRS (Supplemental Restraint System))
136. Diagram Set 60 (HVAC)
137. Diagram Set 63 (Fans)
138. Diagram Set 64 (Rear Window Defogger)
139. Diagram Set 73 (Lights-on, Key-In, and Seat Belt Reminders)

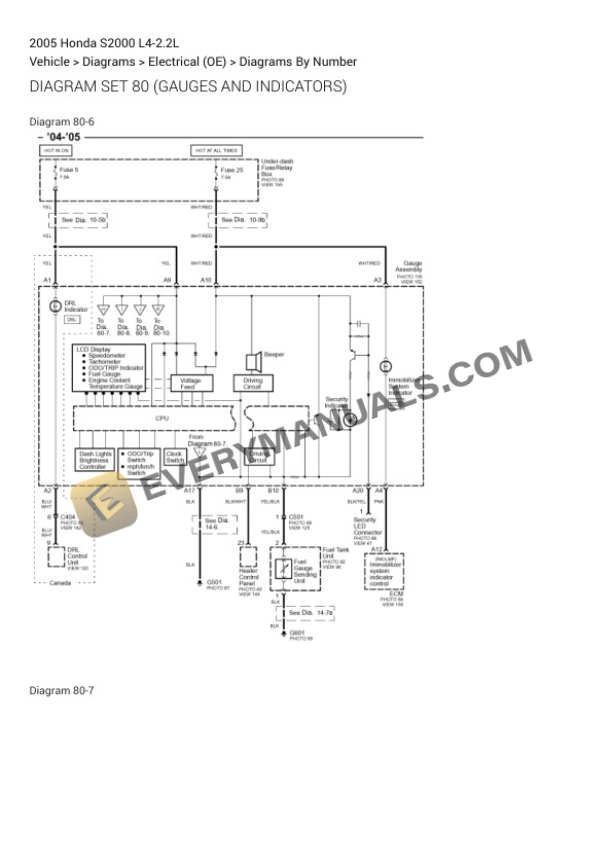

140. Diagram Set 80 (Gauges and Indicators)
141. Diagram Set 91 (Wiper_Washer)
142. Dome Lamp
143. ECM Circuit Diagrams
144. ECM Electrical Connections
145. Gauges and Indicators
146. Ground-to-Component Index
147. Headlights (Canada)
148. Headlights (USA)
149. Instrument Cluster _ Carrier
150. License Plate Lamp
151. Lights-on, Key-In, and Seat Belt Reminders
152. Marker Lamp
153. Parking Lamp
154. Security Alarm System
155. Spot Lamp
156. Tail Lamp
157. Trunk Lamp
158. Vanity Lamp
159. Variable Valve Timing Actuator
160. Wiring Diagram Index_001
161. Wiring Diagram Index_002
162. Wiring Diagrams_001
163. Wiring Diagrams_002
164. Wiring Diagrams_003
165. Wiring Diagrams_004
166. Wiring Diagrams_005
167. Wiring Diagrams_006
168. Wiring Diagrams_007
169. Wiring Diagrams_008
170. Wiring Diagrams_009
171. Wiring Diagrams_010
172. Wiring Diagrams_011
173. Wiring Diagrams_012
174. Wiring Diagrams_013
175. Wiring Diagrams_014
176. Wiring Diagrams_015
177. Wiring Diagrams_016
178. Wiring Diagrams_017
179. Wiring Diagrams_018
180. Wiring Diagrams_019
181. Wiring Diagrams_020
182. Wiring Diagrams_021
183. Wiring Diagrams_022
184. Wiring Diagrams_023
