Date: 2020
Type Of Manual: Electrical Diagrams
Engine: L4-2.0L Turbo (B46D)
Number of Pages: 1169
Size: 71.2MB
Format: PDF

Category: BMW Wiring Diagrams PDF

Description

Model List:
- 330i xDrive Sedan (G20)

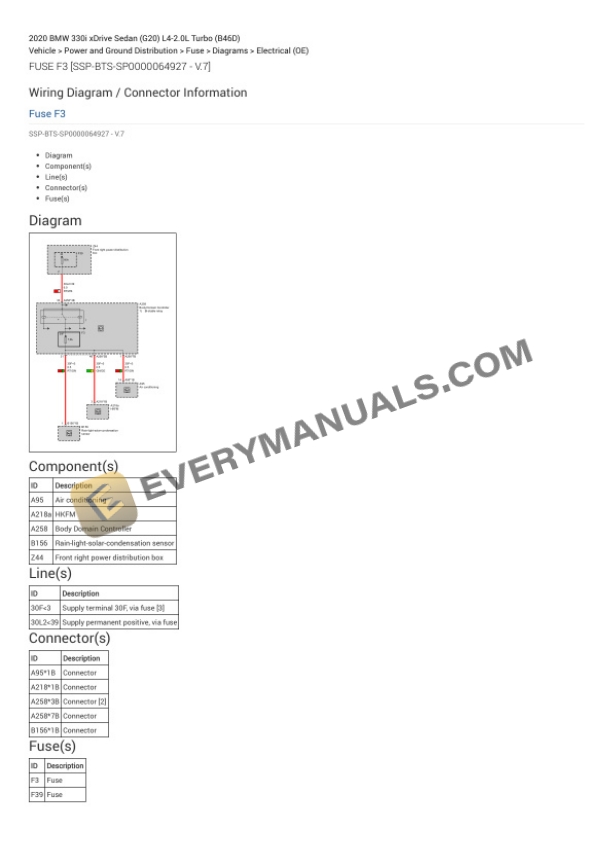

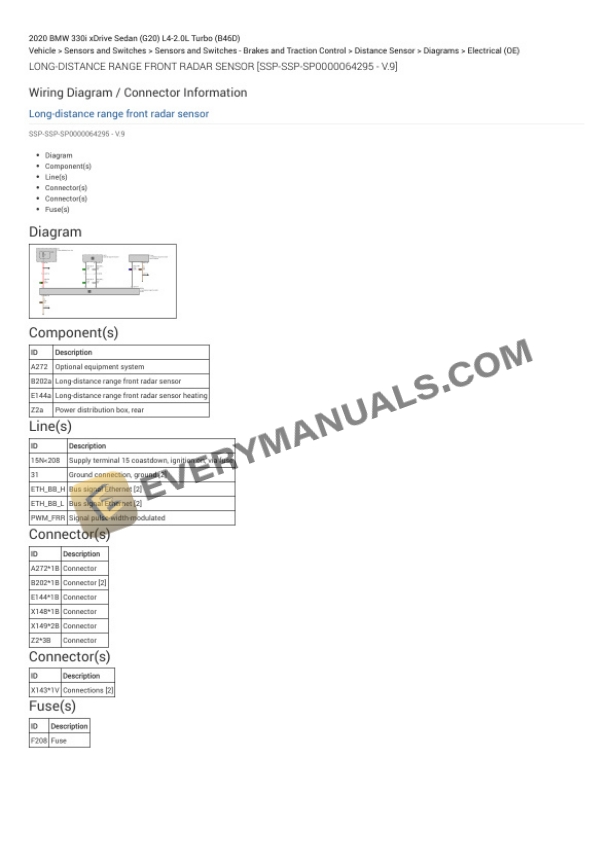

1. Active Body Work Towing_Trailer
2. Air Conditioning – Automatic A_C Circuit
3. Air Conditioning – Independent Heating Circuit
4. Anti-Lock Brakes
5. Anti-Theft – Access_Start Circuit
6. Anti-Theft – Anti-theft amp Central Locking Circuit
7. Body Computer
8. Computer Data Lines
9. Cooling Fans
10. Cruise Control
11. Defogger – Rear Defogger Circuit
12. Door Locks
13. Electronic Power Steering
14. Electronic Suspension – Dynamic Drive Suspension Circuit
15. Engine Controls
16. Exterior Lights – Backup Lamps Circuit
17. Exterior Lights – Exterior Lamps Circuit
18. Exterior Lights – Trailer Tow Circuit
19. Ground Distribution
20. Headlights
21. Heated Steering Wheel Circuit
22. Instrument Cluster
23. Interior Lights – Courtesy Lamps Circuit
24. Interior Lights – Instrument Illumination Circuit
25. Memory Systems – Drivers Memory Seat Circuit
26. Memory Systems – Memory Mirrors Circuit (W_ LIN Bus Function)
27. Memory Systems – Memory Mirrors Circuit (W_O LIN Bus Function)
28. Memory Systems – Passengers Memory Seat Circuit
29. Mirrors
30. Mirrors – Heated Mirrors Circuit (W_ LIN Bus Function)
31. Mirrors – Heated Mirrors Circuit (W_O LIN Bus Function)
32. Navigation – All Around Vision Camera Circuit
33. Navigation – Blind Spot Monitoring Circuit
34. Navigation – Driver Camera Circuit
35. Navigation – Lane Departure Warning Circuit
36. Navigation – Navigation Circuit (Base W_ Receiver Audio Module)
37. Navigation – Navigation Circuit (High Level W_ Receiver Audio Module)
38. Navigation – Navigation Circuit (Mid Level W_ Receiver Audio Module)
39. Navigation – Navigation Circuit (W_ Hifi Radio amp Active Sound Design)
40. Navigation – Navigation Circuit (W_ Hifi Radio W_O Active Sound Design)
41. Navigation – Navigation Circuit (W_O Hifi Radio amp Active Sound Design)
42. Navigation – Navigation Circuit (W_O Hifi Radio W_ Active Sound Design)
43. Navigation – Parking Assistant Circuit
44. Navigation – Rear Camera Circuit
45. Passive Restraints
46. Power Distribution
47. Power Tops
48. Power Windows
49. Seats – Front Heated Seats Circuit (W_ Memory)
50. Seats – Front Heated Seats Circuit (W_O Memory)
51. Seats – Lumbar Circuit (W_ Backrest)
52. Seats – Lumbar Circuit (W_O Backrest)
53. Seats – Passenger Power Seat Circuit
54. Seats – Rear Heated Seats Circuit
55. Seats – Sport Seats Circuit (W_ Lumbar)
56. Seats – Sport Seats Circuit (W_O Lumbar)
57. Shift Interlock
58. Sound Systems – Base Radio Circuit (W_ Active Sound Design)
59. Sound Systems – Base Radio Circuit (W_O Active Sound Design)
60. Sound Systems – Hifi Radio Circuit (W_ Active Sound Design)
61. Sound Systems – Hifi Radio Circuit (W_O Active Sound Design)
62. Sound Systems – Receiver Audio Module Circuit (Base)
63. Sound Systems – Receiver Audio Module Circuit (High Level)
64. Sound Systems – Receiver Audio Module Circuit (Mid Level)
65. Starting_Charging – Charging Circuit
66. Starting_Charging – Starting Circuit
67. Supplemental Restraints
68. Transmissions – A_T Circuit
69. Transmissions – AWD Circuit
70. Transmissions – Rear Axle Circuit
71. Trunk, Tailgate, Fuel Doors – Contact-Free Tailgate Opening Circuit
72. Trunk, Tailgate, Fuel Doors – Trunk amp Fuel Door Release Circuit
73. Warning Systems
74. Wiper_Washer
75. Supply of Sensor System_Actuator System SSP-SSP-SP0000064772 – V.14
76. Vehicle Electrical System SSP-BTS-SP0000066174 – V.5
77. Vehicle Electrical System SSP-BTS-SP0000066182 – V.6
78. Vehicle Electrical System w_ Starter Motor Generator SSP-BTS-SP0000068065 – V.2_001
79. Vehicle Electrical System w_ Starter Motor Generator SSP-BTS-SP0000068065 – V.2_002
80. A11 Crash Safety Module SSP-BTS-SP0000065268 – V.11
81. A190 Electric Machine Electronics SSP-BTS-SP0000066720 – V.2
82. A21 Roof Function Center SSP-BTS-SP0000065271 – V.9
83. A210 SCR Control Unit SSP-BTS-SP0000065169 – V.8
84. A218A Tailgate Function Module SSP-BTS-SP0000065324 – V.5_001
85. A218A Tailgate Function Module SSP-BTS-SP0000065324 – V.5_002
86. A231 Telematic Communication Box SSP-BTS-SP0000065545 – V.5
87. A231 Telematic Communication Box SSP-BTS-SP0000065546 – V.11
88. A233 Active Sound Design SSP-BTS-SP0000065331 – V.5
89. A233 Active Sound Design SSP-BTS-SP0000065332 – V.5
90. A245 Seat Module, Driver SSP-BTS-SP0000065341 – V.10
91. A246 Front Passenger Seat Module SSP-BTS-SP0000067351 – V.5
92. A258 Body Domain Controller Module 2 SSP-BTS-SP0000065348 – V.11
93. A258 Body Domain Controller Module 3 SSP-BTS-SP0000065351 – V.10
94. A258 Body Domain Controller Module 4 SSP-BTS-SP0000065366 – V.12
95. A258 Body Domain Controller Module 5 SSP-BTS-SP0000065369 – V.8
96. A258 Body Domain Controller Module 7 SSP-BTS-SP0000065371 – V.8
97. A258 Body Domain Controller Module 8 SSP-BTS-SP0000065373 – V.10
98. A258 Body Domain Controller Module 9 and 10 SSP-BTS-SP0000065375 – V.7
99. A258 Body Domain Controller Module 9 and 10 SSP-BTS-SP0000065376 – V.10
100. A272 Optional Equipment System SSP-BTS-SP0000065379 – V.8
101. A290 Convenience Charging Electronics SSP-BTS-SP0000066717 – V.2
102. A29A Exterior Rearview Mirror, Driver SSP-BTS-SP0000065304 – V.7
103. A333 Vertical Dynamics Platform SSP-BTS-SP0000065558 – V.8
104. A36 Trailer Module SSP-BTS-SP0000065344 – V.5
105. A36 Trailer Module SSP-BTS-SP0000067978 – V.3
106. A403 Receiver Audio Module SSP-BTS-SP0000065565 – V.10
107. A403 Receiver Audio Module SSP-BTS-SP0000065571 – V.10
108. A403 Receiver Audio Module SSP-BTS-SP0000065572 – V.10
109. A42 Head Unit SSP-BTS-SP0000065275 – V.6
110. A42 Head Unit SSP-BTS-SP0000065283 – V.9
111. A46 Digital Motor Electronics SSP-BTS-SP0000065022 – V.8
112. A71 Instrument Panel SSP-BTS-SP0000065290 – V.8
113. A73A Exterior Rearview Mirror, Front Passenger SSP-BTS-SP0000065305 – V.7
114. A91 Dynamic Stability Control SSP-BTS-SP0000065308 – V.9
115. A91 Dynamic Stability Control SSP-BTS-SP0000069553 – V.1
116. A95 Air Conditioning SSP-BTS-SP0000065315 – V.7
117. A95 Air Conditioning SSP-BTS-SP0000065317 – V.8
118. Acoustic Pedestrian Protection SSP-SSP-SP0000066281 – V.3
119. Active Cruise Control SSP-BTS-SP0000065640 – V.4
120. Active Guard SSP-BTS-SP0000065642 – V.4_001
121. Active Guard SSP-BTS-SP0000065642 – V.4_002
122. Active Protection SSP-BTS-SP0000065691 – V.3
123. Active Sound Design Hi-Fi System Speaker SSP-BTS-SP0000065740 – V.2
124. Active Sound Design Stereo System Speaker SSP-BTS-SP0000065729 – V.1
125. Air Distribution SSP-SSP-SP0000061467 – V.11
126. Air Distribution SSP-SSP-SP0000061468 – V.13
127. Air Supply SSP-SSP-SP0000064588 – V.9
128. Airbag Firing Circuits SSP-SSP-SP0000063664 – V.17
129. Airbag Sensors SSP-SSP-SP0000063663 – V.10
130. All-Round Vision Camera SSP-SSP-SP0000064383 – V.12
131. All-Round Vision Camera w_ Rear View Camera SSP-BTS-SP0000065603 – V.4
132. Alternator SSP-SSP-SP0000064638 – V.11
133. Ambient Interior Lighting SSP-BTS-SP0000065856 – V.4
134. Ambient Interior Lighting SSP-BTS-SP0000069776 – V.1
135. Ambient Interior Lighting SSP-SSP-SP0000064083 – V.9
136. Ambient Interior Lighting SSP-SSP-SP0000069573 – V.2
137. Antennas_Antennas SSP-BTS-SP0000065768 – V.4_001
138. Antennas_Antennas SSP-BTS-SP0000065768 – V.4_002
139. Antennas_Antennas SSP-BTS-SP0000065768 – V.4_003
140. Antennas_Antennas SSP-BTS-SP0000065768 – V.4_004
141. Antennas_Antennas SSP-BTS-SP0000065769 – V.1_001
142. Antennas_Antennas SSP-BTS-SP0000065769 – V.1_002
143. Antennas_Antennas SSP-BTS-SP0000065769 – V.1_003
144. Antennas_Antennas SSP-BTS-SP0000065769 – V.1_004
145. Audio Output SSP-SSP-SP0000063909 – V.5
146. Audio Output SSP-SSP-SP0000063910 – V.6
147. Audio Output SSP-SSP-SP0000063911 – V.6
148. Audio Output SSP-SSP-SP0000063913 – V.9
149. Audio Output SSP-SSP-SP0000063915 – V.10
150. Audio Output SSP-SSP-SP0000063917 – V.9
151. Automatic Air Recirculation Control SSP-SSP-SP0000063992 – V.9
152. Automatic Engine Start-Stop Function SSP-BTS-SP0000065663 – V.5
153. Automatic Luggage Compartment Lid Actuation SSP-BTS-SP0000066083 – V.4
154. Automatic Luggage Compartment Lid Actuation SSP-SSP-SP0000063488 – V.11
155. Automatic Soft Close System SSP-SSP-SP0000063490 – V.10
156. Auxiliary Turn Signal Lamps SSP-SSP-SP0000064085 – V.9
157. B41 Parking Maneuvering Assistant SSP-BTS-SP0000065559 – V.7
158. Backrest Width Adjustment, Drivers Side SSP-SSP-SP0000063837 – V.9
159. Backrest Width Adjustment, Drivers Side SSP-SSP-SP0000063838 – V.8
160. Backrest Width Adjustment, Passengers Side SSP-SSP-SP0000063844 – V.10
161. Backrest Width Adjustment, Passengers Side SSP-SSP-SP0000063845 – V.9
162. Blower SSP-SSP-SP0000063987 – V.10
163. Body CAN4 BUS Connection SSP-BTS-SP0000065240 – V.7
164. Body CAN5 BUS Connection SSP-BTS-SP0000066695 – V.2
165. Body CAN7 BUS Connection SSP-BTS-SP0000065256 – V.6
166. Body CAN7 BUS Connection SSP-BTS-SP0000067968 – V.3
167. Body CAN8 BUS Connection SSP-BTS-SP0000068074 – V.1
168. Body Domain Controller (BDC) Power Distribution Box SSP-BTS-SP0000066147 – V.4_001
169. Body Domain Controller (BDC) Power Distribution Box SSP-BTS-SP0000066147 – V.4_002
170. Body Domain Controller and Terminal Control Supply SSP-SSP-SP0000063821 – V.13
171. Booster SSP-BTS-SP0000068182 – V.3
172. Burglar-Alarm System SSP-BTS-SP0000066120 – V.3
173. Burglar-Alarm System SSP-SSP-SP0000063882 – V.7
174. BUS LIN SSP-BTS-SP0000066229 – V.5
175. Camera-Based Driver Support Systems SSP-SSP-SP0000064299 – V.12
176. Camera-Based Driver Support Systems SSP-SSP-SP0000064300 – V.6
177. Car Sharing SSP-BTS-SP0000065756 – V.5
178. Car Sharing SSP-SSP-SP0000063870 – V.12
179. CD Drive SSP-BTS-SP0000065744 – V.1
180. Central Information Display SSP-SSP-SP0000063827 – V.7_001
181. Central Information Display SSP-SSP-SP0000063827 – V.7_002
182. Central Information Display SSP-SSP-SP0000068064 – V.5_001
183. Central Information Display SSP-SSP-SP0000068064 – V.5_002
184. Central Locking System SSP-BTS-SP0000065846 – V.4
185. Central Locking System SSP-SSP-SP0000063476 – V.11
186. Central Locking System SSP-SSP-SP0000063479 – V.8
187. Check Fuse F010 SSP-BTS-SP0000059791 – V.16
188. Cigarette Lighter and Power Sockets SSP-BTS-SP0000065845 – V.3
189. Cigarette Lighter and Power Sockets SSP-SSP-SP0000063748 – V.7
190. Cigarette Lighter and Power Sockets SSP-SSP-SP0000067088 – V.6
191. Close Range Radar Sensors SSP-SSP-SP0000064369 – V.10
192. Close Range Radar Sensors SSP-SSP-SP0000064370 – V.10
193. Comfort Access SSP-BTS-SP0000066121 – V.4_001
194. Comfort Access SSP-BTS-SP0000066121 – V.4_002
195. Comfort Access SSP-SSP-SP0000063464 – V.10
196. Connectivity Professional SSP-BTS-SP0000065745 – V.5_001
197. Connectivity Professional SSP-BTS-SP0000065745 – V.5_002
198. Connectivity Professional SSP-BTS-SP0000065745 – V.5_003
199. Connectivity Professional SSP-BTS-SP0000065747 – V.5_001
200. Connectivity Professional SSP-BTS-SP0000065747 – V.5_002
201. Connectivity Professional SSP-BTS-SP0000065747 – V.5_003
202. Connector X108_1V, X1689_1V SSP-BTS-SP0000065204 – V.7
203. Connector X116_1V SSP-BTS-SP0000065206 – V.7
204. Connector X118_1V, X1691_1V SSP-BTS-SP0000065208 – V.7
205. Connector X125_1V SSP-BTS-SP0000065209 – V.5
206. Connector X136_1V SSP-BTS-SP0000065210 – V.7
207. Connector X140_1V SSP-BTS-SP0000065220 – V.7
208. Connector X1432_1V SSP-BTS-SP0000065248 – V.8
209. Connector X1516_1V SSP-BTS-SP0000065254 – V.7
210. Connector X1870_1V SSP-BTS-SP0000065258 – V.7
211. Connector X1952_1V SSP-BTS-SP0000065260 – V.7
212. Connector X227_1V SSP-BTS-SP0000065221 – V.7
213. Connector X300_1V SSP-BTS-SP0000065223 – V.7
214. Connector X328_1V SSP-BTS-SP0000065111 – V.9
215. Connector X403_1V, X63_1V SSP-BTS-SP0000065200 – V.7
216. Connector X404_1V, X64_1V SSP-BTS-SP0000065201 – V.7
217. Connector X40_1V SSP-BTS-SP0000065197 – V.7
218. Connector X45_1V SSP-BTS-SP0000067451 – V.3
219. Connector X46_1V SSP-BTS-SP0000065198 – V.7
220. Connector X4727 SSP-BTS-SP0000069476 – V.1
221. Connector X56_1V SSP-BTS-SP0000065199 – V.7
222. Connector X609_1V SSP-BTS-SP0000066710 – V.1
223. Connector X610_1V, X1317_1V SSP-BTS-SP0000065228 – V.8
224. Connector X65_1V SSP-BTS-SP0000065202 – V.7
225. Connector X66_1V SSP-BTS-SP0000065203 – V.7
226. Connector X686_1V SSP-BTS-SP0000066435 – V.2
227. Connector X725_1V SSP-BTS-SP0000065231 – V.7
228. Connector X800_1V SSP-BTS-SP0000065233 – V.8
229. Connector X811_1V SSP-BTS-SP0000065237 – V.5
230. Connector X973_1V SSP-BTS-SP0000062805 – V.11
231. Connector X974_1V SSP-BTS-SP0000065238 – V.7
232. Contact-Free Tailgate Opening SSP-SSP-SP0000063485 – V.10
233. Control Center, Center Console SSP-SSP-SP0000064404 – V.13
234. Control Panel for Heating and Air Conditioning System SSP-SSP-SP0000063983 – V.12
235. Controller (IDrive) SSP-SSP-SP0000063908 – V.9
236. Courtesy Lighting SSP-BTS-SP0000060242 – V.8
237. Courtesy Lighting SSP-SSP-SP0000064087 – V.9
238. Crankshaft Sensor SSP-SSP-SP0000059418 – V.24
239. Crash Safety Module SSP-BTS-SP0000065676 – V.5

BMW 330i xDrive Sedan (G20) 2020 Electrical Diagrams L4-2.0L Turbo (B46D)

Description

Related products

Login
