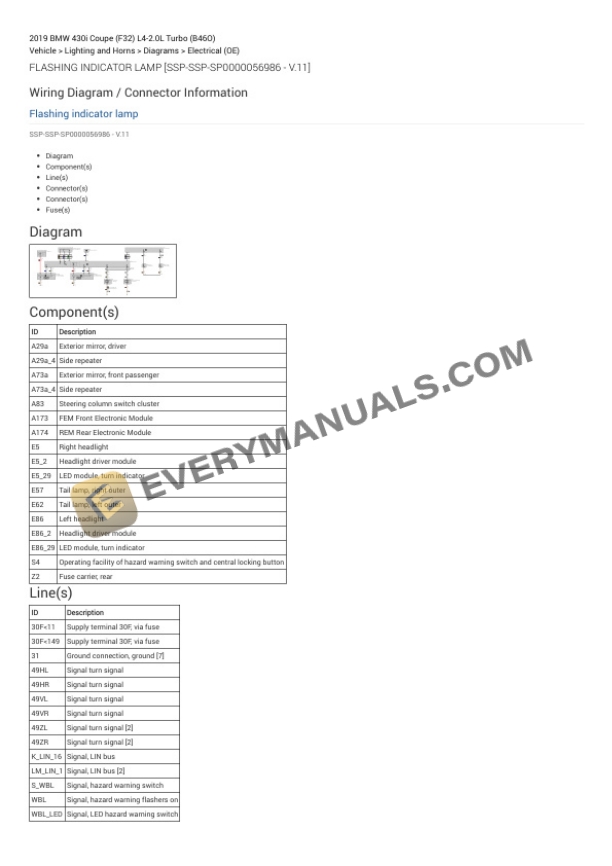

BMW 430i Coupe (F32) 2019 Electrical Diagrams L4-2.0L Turbo (B46O)

Date: 2019
Type Of Manual: Electrical Diagrams
Engine: L4-2.0L Turbo (B46O)
Number of Pages: 1263
Size: 80.1MB
Format: PDF

Category: BMW Wiring Diagrams PDF

Description

Model List:
- 430i Coupe (F32)

1. Active Body Work Towing_Trailer
2. Air Conditioning – Automatic A_C Circuit
3. Anti-Lock Brakes
4. Anti-Theft – Access_Start Circuit
5. Anti-Theft – Anti-theft amp Central Locking Circuit
6. Body Computer – Front Electronic Control Module Circuit
7. Body Computer – Rear Electronic Control Module Circuit
8. Computer Data Lines
9. Convertible Top Circuit
10. Cooling Fans
11. Cruise Control
12. Defogger – Rear Defogger Circuit
13. Door Locks
14. Electronic Power Steering
15. Electronic Suspension – Air Suspension Circuit
16. Electronic Suspension – Dynamic Drive Suspension Circuit
17. Engine Controls
18. Exterior Lights – Backup Lamps Circuit
19. Exterior Lights – Exterior Lamps Circuit
20. Exterior Lights – Trailer Tow Circuit

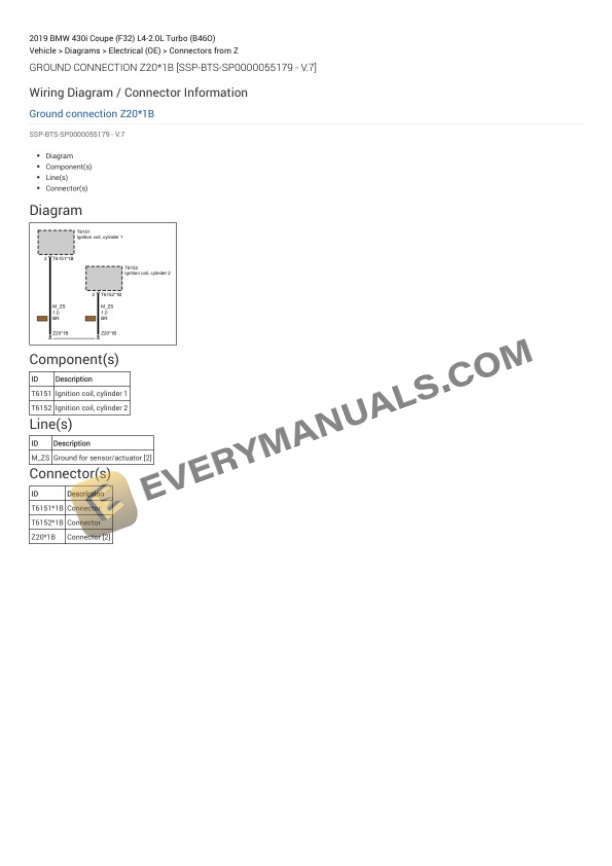

21. Ground Distribution
22. Headlights – W_ LED Headlamps
23. Headlights – W_O LED Headlamps
24. Heated Steering Wheel Circuit
25. Instrument Cluster
26. Interior Lights – Courtesy Lamps Circuit
27. Interior Lights – Instrument Illumination Circuit
28. Memory Systems – Drivers Memory Seat Circuit (Convertible)
29. Memory Systems – Drivers Memory Seat Circuit (Coupe)
30. Memory Systems – Memory Mirrors Circuit (W_ LIN Bus Function)
31. Memory Systems – Memory Mirrors Circuit (W_O LIN Bus Function)
32. Memory Systems – Passengers Memory Seat Circuit (Convertible)
33. Memory Systems – Passengers Memory Seat Circuit (Coupe)
34. Mirrors
35. Mirrors – Heated Mirrors Circuit (W_ LIN Bus Function)
36. Mirrors – Heated Mirrors Circuit (W_O LIN Bus Function)
37. Navigation – All Around Vision Camera Circuit
38. Navigation – Lane Departure Warning Circuit (W_ Camera)
39. Navigation – Lane Departure Warning Circuit (W_O Camera)
40. Navigation – Navigation Circuit (W_ Hifi Radio amp Active Sound Design)
41. Navigation – Navigation Circuit (W_ Hifi Radio W_O Active Sound Design)
42. Navigation – Navigation Circuit (W_O Hifi Radio amp Active Sound Design)
43. Navigation – Navigation Circuit (W_O Hifi Radio W_ Active Sound Design)

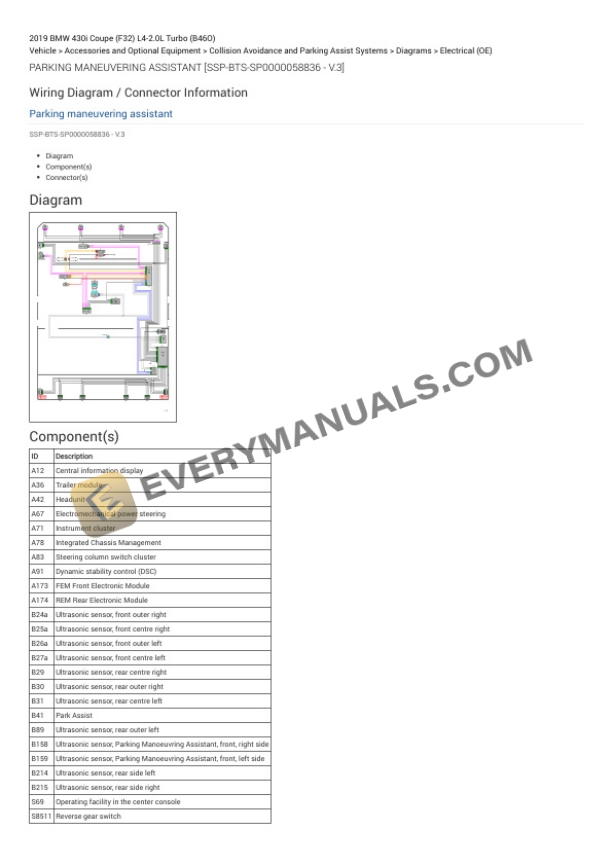

44. Navigation – Parking Assistant Circuit (W_ Parking Maneuvering Assistant)
45. Navigation – Parking Assistant Circuit (W_O Parking Maneuvering Assistant)
46. Navigation – Rear Camera Circuit
47. Passive Restraints – Reversible Electrically Motorized Reel Circuit (Convertible)
48. Passive Restraints – Reversible Electrically Motorized Reel Circuit (Coupe)
49. Passive Restraints – Seat Belt Extender Circuit
50. Power Distribution
51. Power Tops – Sunroof Circuit
52. Power Windows – Power Windows Circuit
53. Power Windows – Rear Window Sun Shade Circuit
54. Seats – Front Heated Seats Circuit (W_ Memory)
55. Seats – Front Heated Seats Circuit (W_O Memory)
56. Seats – Lumbar Circuit (Convertible)
57. Seats – Lumbar Circuit (Coupe)
58. Seats – Neck Warmer Circuit
59. Seats – Rear Heated Seats Circuit
60. Seats – Sport Seats Circuit
61. Sound Systems – Base Radio Circuit (W_ Active Sound Design)
62. Sound Systems – Base Radio Circuit (W_O Active Sound Design)
63. Sound Systems – Hifi Radio Circuit (W_ Active Sound Design)
64. Sound Systems – Hifi Radio Circuit (W_O Active Sound Design)

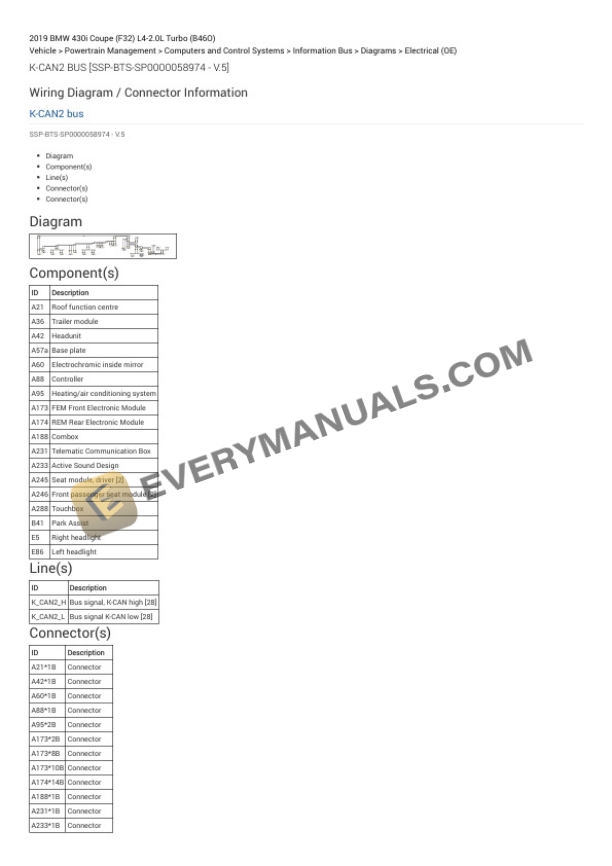

65. Sound Systems – MOST Data Bus Circuit
66. Sound Systems – Top Hifi Radio Circuit (W_ Active Sound Design)
67. Sound Systems – Top Hifi Radio Circuit (W_O Active Sound Design)
68. Starting_Charging – Charging Circuit
69. Starting_Charging – Starting Circuit
70. Supplemental Restraints
71. Transmissions
72. Trunk, Tailgate, Fuel Doors – Contact-Free Tailgate Opening Circuit
73. Trunk, Tailgate, Fuel Doors – Trunk amp Fuel Door Release Circuit (Convertible)
74. Trunk, Tailgate, Fuel Doors – Trunk amp Fuel Door Release Circuit (Coupe)
75. Warning Systems
76. Wiper_Washer
77. Power Socket for Cigarette Lighter SSP-BTS-SP0000056437 – V.3
78. Supply of Sensor System_Actuator System SSP-SSP-SP0000059148 – V.7
79. Vehicle Electrical System SSP-BTS-SP0000056442 – V.6
80. A11 Crash Safety Module SSP-BTS-SP0000055297 – V.19
81. A167 All-Round Vision Camera SSP-BTS-SP0000060942 – V.2
82. A188 Combox SSP-BTS-SP0000060946 – V.3
83. A189 Electronic Damper Control SSP-BTS-SP0000060898 – V.4
84. A21 Roof Function Center SSP-BTS-SP0000054678 – V.16
85. A231 Telematics Communication Box SSP-BTS-SP0000060950 – V.3
86. A231 Telematics Communication Box SSP-BTS-SP0000060952 – V.3
87. A231 Telematics Communication Box SSP-BTS-SP0000060959 – V.4
88. A233 Active Sound Design SSP-BTS-SP0000060922 – V.2
89. A233 Active Sound Design SSP-BTS-SP0000060923 – V.2
90. A233 Active Sound Design SSP-BTS-SP0000060924 – V.2
91. A245 Drivers Seat Module SSP-BTS-SP0000054689 – V.15
92. A246 Front Passenger Seat Module SSP-BTS-SP0000055780 – V.7
93. A29A Exterior Mirror, Driver SSP-BTS-SP0000062090 – V.2
94. A36 Trailer Module SSP-BTS-SP0000060189 – V.5
95. A42 Head Unit SSP-BTS-SP0000055322 – V.14
96. A42 Head Unit SSP-BTS-SP0000059916 – V.7
97. A46 Digital Motor Electronics SSP-BTS-SP0000059887 – V.11
98. A52 Top-Hi-Fi Amplifier SSP-BTS-SP0000060909 – V.2
99. A60 Electrochromic Inside Mirror SSP-BTS-SP0000058933 – V.6
100. A71 Instrument Cluster Control Unit SSP-BTS-SP0000059500 – V.7
101. A71 Instrument Cluster Control Unit SSP-BTS-SP0000062030 – V.4
102. A71 Instrument Panel SSP-BTS-SP0000063405 – V.2
103. A71 Instrument Panel Control Unit SSP-BTS-SP0000056443 – V.11
104. A73A Exterior Mirror, Front Passenger SSP-BTS-SP0000063018 – V.2
105. A78 Integrated Chassis Management SSP-BTS-SP0000054685 – V.15
106. A91 Dynamic Stability Control SSP-BTS-SP0000054681 – V.13
107. A91 Dynamic Stability Control SSP-BTS-SP0000060163 – V.3
108. A95 Climate Control SSP-BTS-SP0000054686 – V.10
109. A95 Climate Control SSP-BTS-SP0000054687 – V.12
110. A95 Climate Control SSP-BTS-SP0000058402 – V.6
111. A95 Climate Control SSP-BTS-SP0000058403 – V.6
112. Access and Authorization System SSP-BTS-SP0000058807 – V.2_001
113. Access and Authorization System SSP-BTS-SP0000058807 – V.2_002
114. Access and Authorization System SSP-BTS-SP0000058807 – V.2_003
115. Active Cruise Control (ACC) SSP-SSP-SP0000054801 – V.11
116. Active Cruise Control SSP-BTS-SP0000056626 – V.3
117. Active Protection SSP-BTS-SP0000058818 – V.2
118. Active Sound Design Hi-Fi System Speaker SSP-BTS-SP0000058852 – V.3
119. Active Sound Design Stereo System Speaker SSP-BTS-SP0000058851 – V.3
120. Active Sound Design Supply SSP-SSP-SP0000055990 – V.12
121. Active Sound Design Top HiFi System Speaker SSP-BTS-SP0000058853 – V.3
122. Adaptive Headlight, Turning Lights SSP-BTS-SP0000056172 – V.1
123. Adaptive Headlights SSP-SSP-SP0000054318 – V.17
124. Air Distribution SSP-SSP-SP0000054288 – V.11
125. Air Distribution SSP-SSP-SP0000054289 – V.10
126. Air Supply SSP-SSP-SP0000059120 – V.6
127. Airbag Firing Circuits SSP-SSP-SP0000054765 – V.16
128. Airbag Sensors SSP-SSP-SP0000054764 – V.15
129. All-Round Vision Camera SSP-BTS-SP0000058830 – V.2
130. All-Round Vision Camera SSP-SSP-SP0000054785 – V.14
131. All-Round Vision Camera SSP-SSP-SP0000062734 – V.5
132. Alternator SSP-SSP-SP0000059141 – V.8
133. Antennas SSP-BTS-SP0000056342 – V.2
134. Antennas_Antennas SSP-BTS-SP0000056348 – V.3_001
135. Antennas_Antennas SSP-BTS-SP0000056348 – V.3_002
136. Antennas_Antennas SSP-BTS-SP0000056348 – V.3_003
137. Antennas_Antennas SSP-BTS-SP0000056348 – V.3_004
138. Antitheft Alarm System SSP-SSP-SP0000054299 – V.19
139. Antitheft Alarm System SSP-SSP-SP0000059202 – V.12
140. Antitheft Alarm System SSP-SSP-SP0000060869 – V.5
141. Audio Output SSP-SSP-SP0000054773 – V.12
142. Audio Output SSP-SSP-SP0000054774 – V.12
143. Audio Output SSP-SSP-SP0000054775 – V.12
144. Audio Output SSP-SSP-SP0000056858 – V.6
145. Audio Output SSP-SSP-SP0000056860 – V.7
146. Audio Output SSP-SSP-SP0000056861 – V.9
147. Automatic Air Recirculation Control SSP-SSP-SP0000054292 – V.10
148. Automatic Engine Start-Stop Function SSP-BTS-SP0000056424 – V.7
149. B41 Parking Assistant SSP-BTS-SP0000060935 – V.3
150. B41 Parking Assistant SSP-BTS-SP0000060936 – V.3
151. Backrest Width Adjustment, Drivers Side SSP-SSP-SP0000054424 – V.13
152. Backrest Width Adjustment, Passengers Side SSP-SSP-SP0000055789 – V.7
153. Blower SSP-SSP-SP0000054291 – V.9
154. Body CAN BUS Connection SSP-BTS-SP0000057053 – V.3
155. Body CAN BUS Connection SSP-BTS-SP0000057054 – V.5
156. Brake Light SSP-SSP-SP0000056534 – V.15
157. Brake Light SSP-SSP-SP0000060437 – V.6
158. Burglar-Alarm System SSP-BTS-SP0000056063 – V.4
159. Burglar-Alarm System SSP-SSP-SP0000062012 – V.4
160. BUS LIN SSP-BTS-SP0000056631 – V.7
161. Cable Connector X70_1V SSP-BTS-SP0000055485 – V.9
162. Camera-Based Driver Assistance Systems SSP-BTS-SP0000058833 – V.2
163. Camera-Based Driver Assistance Systems SSP-SSP-SP0000054334 – V.12_001
164. Camera-Based Driver Assistance Systems SSP-SSP-SP0000054334 – V.12_002
165. Camera-Based Driver Assistance Systems SSP-SSP-SP0000054334 – V.12_003
166. Capacitor Box SSP-SSP-SP0000056445 – V.8
167. Car Sharing SSP-BTS-SP0000059917 – V.2
168. Car Sharing SSP-SSP-SP0000059879 – V.6
169. Central Information Display SSP-SSP-SP0000054397 – V.12_001
170. Central Information Display SSP-SSP-SP0000054397 – V.12_002
171. Central Locking System SSP-BTS-SP0000058808 – V.2
172. Central Locking System SSP-SSP-SP0000057132 – V.14
173. Cigarette Light and Sockets SSP-SSP-SP0000054293 – V.14
174. Cigarette Light and Sockets SSP-SSP-SP0000060711 – V.3
175. Combox SSP-SSP-SP0000056363 – V.11_001
176. Combox SSP-SSP-SP0000056363 – V.11_002
177. Combox SSP-SSP-SP0000056363 – V.11_003
178. Comfort Access SSP-BTS-SP0000058806 – V.4_001
179. Comfort Access SSP-BTS-SP0000058806 – V.4_002
180. Comfort Access SSP-SSP-SP0000056027 – V.12
181. Comfort Access SSP-SSP-SP0000058781 – V.6
182. Comfort Access SSP-SSP-SP0000059397 – V.9
183. Comfort Access SSP-SSP-SP0000062064 – V.4
184. Connection of Mobile Devices SSP-SSP-SP0000054406 – V.9_001
185. Connection of Mobile Devices SSP-SSP-SP0000054406 – V.9_002
186. Connection of Mobile Devices SSP-SSP-SP0000054406 – V.9_003
187. Connectivity Business SSP-BTS-SP0000057435 – V.4_001
188. Connectivity Business SSP-BTS-SP0000057435 – V.4_002
189. Connectivity Business SSP-BTS-SP0000057435 – V.4_003
190. Connectivity Business Combox SSP-BTS-SP0000056332 – V.6_001
191. Connectivity Business Combox SSP-BTS-SP0000056332 – V.6_002
192. Connectivity Business Combox SSP-BTS-SP0000056332 – V.6_003
193. Connectivity Business Combox SSP-BTS-SP0000056366 – V.7_001
194. Connectivity Business Combox SSP-BTS-SP0000056366 – V.7_002
195. Connectivity Business Combox SSP-BTS-SP0000056366 – V.7_003
196. Connectivity Professional SSP-BTS-SP0000057643 – V.5_001
197. Connectivity Professional SSP-BTS-SP0000057643 – V.5_002
198. Connectivity Professional SSP-BTS-SP0000057643 – V.5_003
199. Connectivity Professional SSP-BTS-SP0000067309 – V.1_001
200. Connectivity Professional SSP-BTS-SP0000067309 – V.1_002
201. Connectivity Professional SSP-BTS-SP0000067309 – V.1_003
202. Connectivity Professional Combox SSP-BTS-SP0000056367 – V.6_001
203. Connectivity Professional Combox SSP-BTS-SP0000056367 – V.6_002
204. Connectivity Professional Combox SSP-BTS-SP0000056367 – V.6_003
205. Connectivity Professional Combox SSP-BTS-SP0000057644 – V.3_001
206. Connectivity Professional Combox SSP-BTS-SP0000057644 – V.3_002
207. Connectivity Professional Combox SSP-BTS-SP0000057644 – V.3_003
208. Connectivity Professional Professional Telematics Telematic Communication Box SSP-BTS-SP0000056335 – V.7_001
209. Connectivity Professional Professional Telematics Telematic Communication Box SSP-BTS-SP0000056335 – V.7_002
210. Connectivity Professional Professional Telematics Telematic Communication Box SSP-BTS-SP0000056335 – V.7_003
211. Connectivity Professional Telematics Combox SSP-BTS-SP0000056334 – V.5_001
212. Connectivity Professional Telematics Combox SSP-BTS-SP0000056334 – V.5_002
213. Connectivity Professional Telematics Combox SSP-BTS-SP0000056334 – V.5_003
214. Connector X0101 SSP-BTS-SP0000055188 – V.8
215. Connector X0102 SSP-BTS-SP0000055189 – V.10
216. Connector X0102 SSP-BTS-SP0000063391 – V.2
217. Connector X0103 SSP-BTS-SP0000055190 – V.7
218. Connector X0112 SSP-BTS-SP0000060429 – V.4
219. Connector X0112 SSP-BTS-SP0000063392 – V.2
220. Connector X0113 SSP-BTS-SP0000060430 – V.2
221. Connector X113_1V SSP-BTS-SP0000054601 – V.9
222. Connector X123_1V, X160_1V SSP-BTS-SP0000054602 – V.21
223. Connector X12_1B SSP-BTS-SP0000058410 – V.8
224. Connector X12_2B SSP-BTS-SP0000056714 – V.9
225. Connector X13_2B SSP-BTS-SP0000059180 – V.6
226. Connector X14_1B SSP-BTS-SP0000058415 – V.7
227. Connector X14_2B SSP-BTS-SP0000056716 – V.9
228. Connector X163_1V SSP-BTS-SP0000054621 – V.8
229. Connector X187_1B SSP-BTS-SP0000060938 – V.2
230. Connector X1895_1V SSP-BTS-SP0000060441 – V.3
231. Connector X1896_1V SSP-BTS-SP0000060442 – V.4
232. Connector X226_1V SSP-BTS-SP0000054810 – V.10
233. Connector X227_1V SSP-BTS-SP0000054628 – V.10
234. Connector X28_1B SSP-BTS-SP0000058901 – V.7
235. Connector X28_1B SSP-BTS-SP0000059455 – V.8

BMW 430i Coupe (F32) 2019 Electrical Diagrams L4-2.0L Turbo (B46O)

Description

Related products

Login
