Case 300, 400 Serie Diesel Engines and Fuel Systems Service Manual GSS-1427B PDF
$30
- Type Of Manual: Service Manual
- Manual ID: GSS-1427B
- Format: PDF
- Size: 74.3MB
- Number of Pages: 462
Description
-
Model List:
- 300 and 400 Serie Diesel Engines and Fuel Systems
- 1. GENERAL CONTENTS
- 2. Safe Work Rules
- 3. Standard Torque Data for Nuts and Bolts
- 4. Torque Values for Hose Clamps
- 5. InchMetric Conversion Tables
- 6. Special Service Tools Required
- 7. Service Information System (S.I.S.)
- 8. General Shop Practices for Engine Overhaul
- 9. Sealing Compound Use
- 10. SECTION 1 ENGINE
- 11. Special Nut and Bolt Torque Data
- 12. Introduction
- 13. Problem and Analysis Guide
- 14. Engine Checks Before Disassembly
- 15. Checking Engine Assembled and Checks During Engine Disassembly
- 16. Checks Prior to Engine Reassembly
- 17. Checks Prior to Engine Startup and Engine Startup
- 18. Specifications
- 19. Mounting Engine on Stand
- 20. Manifolds

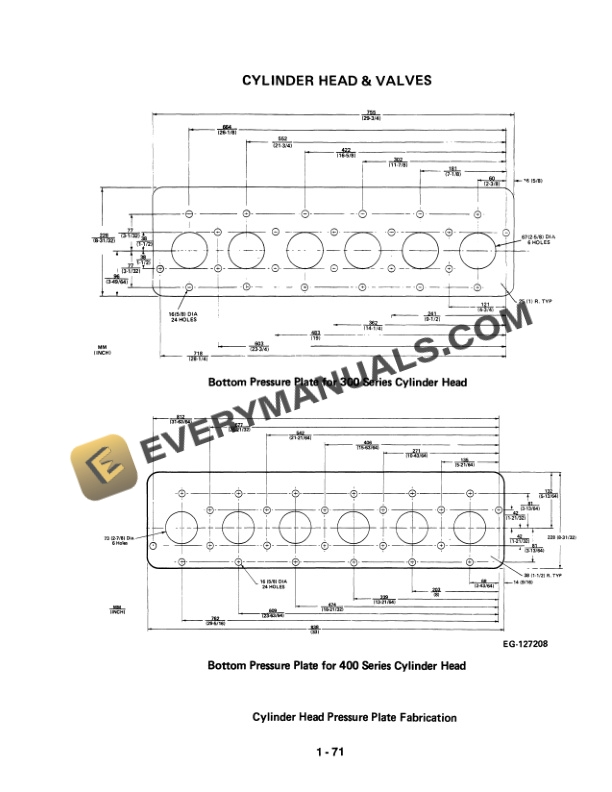

- 21. Cylinder Head Valves
- 22. Valve Train Camshaft, Tappets and Push Rods
- 23. Timing Gear Train and Front Cover
- 24. Connecting Rods, Pistons, Rings and Sleeves

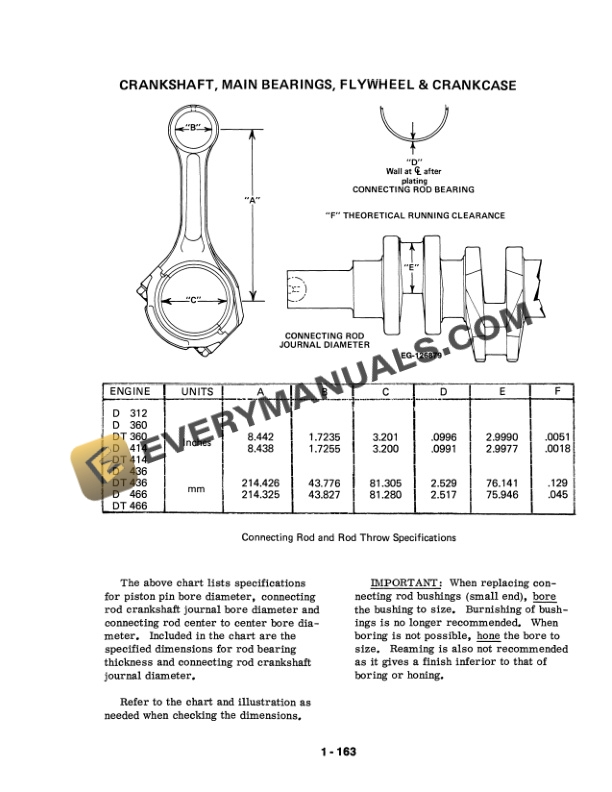

- 25. Crankshaft, Main Bearings, Flywheel and Crankcase
- 26. Lubrication System
- 27. Cooling System

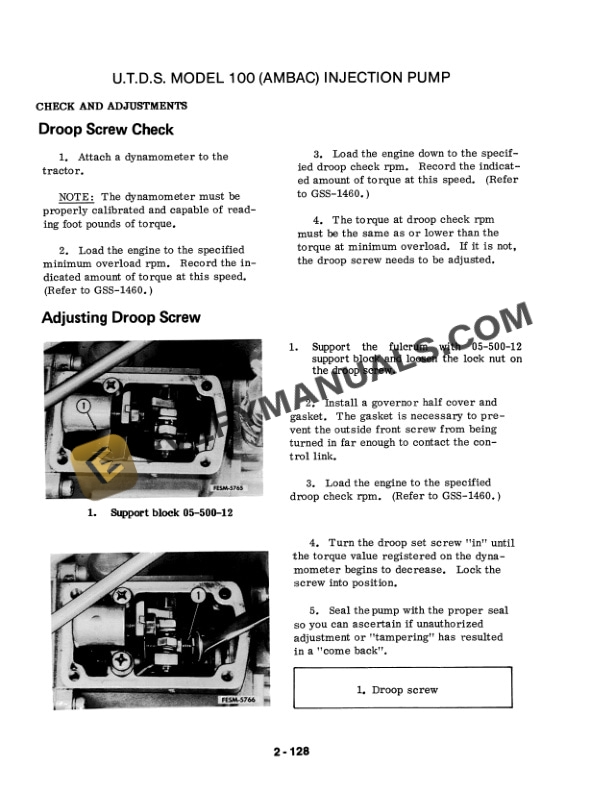

- 28. SECTION 2 FUEL SYSTEM U.T.D.S. Model 100 (AMBAC) Injection Pump
- 29. Dimensional Tolerances
- 30. Explanation of Pump Type Designation
- 31. Pump Assemblies
- 32. General Pump Information and Pump Features
- 33. Removal of Pump

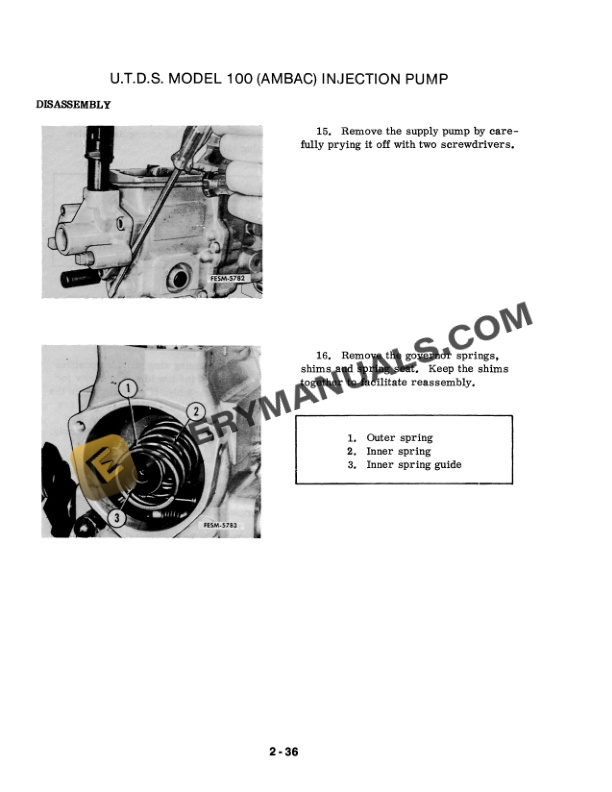

- 34. Pump Overhaul
- 35. Troubleshooting
- 36. Flow Bench Testing
- 37. Installation of Pump
- 38. Checks and Adjustments
- 39. ROBERT BOSCH MODEL MW INJECTION PUMP
- 40. General Pump Information
- 41. Plunger Positions During Injection Cycle
- 42. External Injection Pump Controls
- 43. RSV Governor and Aneroid
- 44. Optional Method of Installation
- 45. Adjustments
- 46. OnEngine Injection Pump Repairs
- 47. Checking Supply Pump Pressure and/or Inlet Restriction
- 48. Checking the Aneroid Diaphragm for Leaks
- 49. Trouble Finding Testing
- 50. NOZZLES
- 51. Description and Operation
- 52. Nozzle Identification
- 53. General
- 54. SECTION 3 TURBOCHARGER
- 55. Specifications
- 56. Description
- 57. General Maintenance and Cleaning Procedure
- 58. Inspection Before Removal
- 59. Turbocharger Testing
- 60. Removal and Servicing of Air Induction System After a Turbocharger Compressor Failure
- 61. Airesearch Turbocharger
- 62. Schwitzer Turbocharger
- 63. Installation
