Case Farmall 85C, 95C, 105C, 115C With Hi Service Manual 47851931 PDF
$30
- Type Of Manual: Service Manual
- Manual ID: 47851931
- Format: PDF
- Size: 32.7MB
- Number of Pages: 413
Description
-
Model List:
- Farmall 85C With Hi-Lo Transmission – With Mechanical or Power Shuttle Transmission Tractor
- Farmall 95C With Hi-Lo Transmission – With Mechanical or Power Shuttle Transmission Tractor
- Farmall 105C With Hi-Lo Transmission – With Mechanical or Power Shuttle Transmission Tractor
- Farmall 115C With Hi-Lo Transmission – With Mechanical or Power Shuttle Transmission Tractor
- 1. INTRODUCTION
- 2. Engine 10
- 2.1. Engine and crankcase 001
- 2.2. Fuel tanks 216

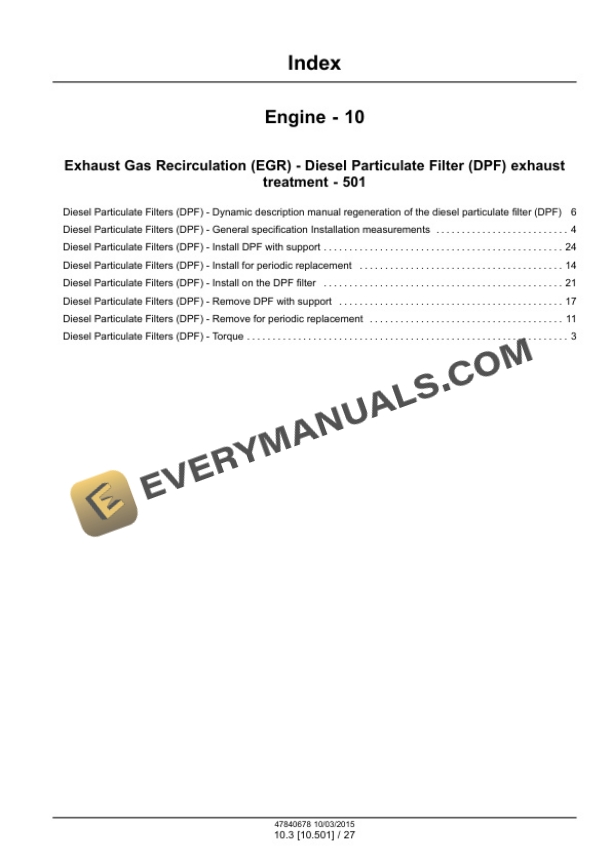

- 2.3. Exhaust Gas Recirculation (EGR) Diesel Particulate Filter (DPF) exhausttreatment 501
- 2.4. Engine cooling system 400
- 2.5. Fan and drive 414
- 2.6. Aftercooler 310
- 3. Clutch 18
- 3.1. Clutch mechanical release control 100
- 3.2. Clutch hydraulic release control 104
- 3.3. Clutch and components 110
- 4. Transmission 21

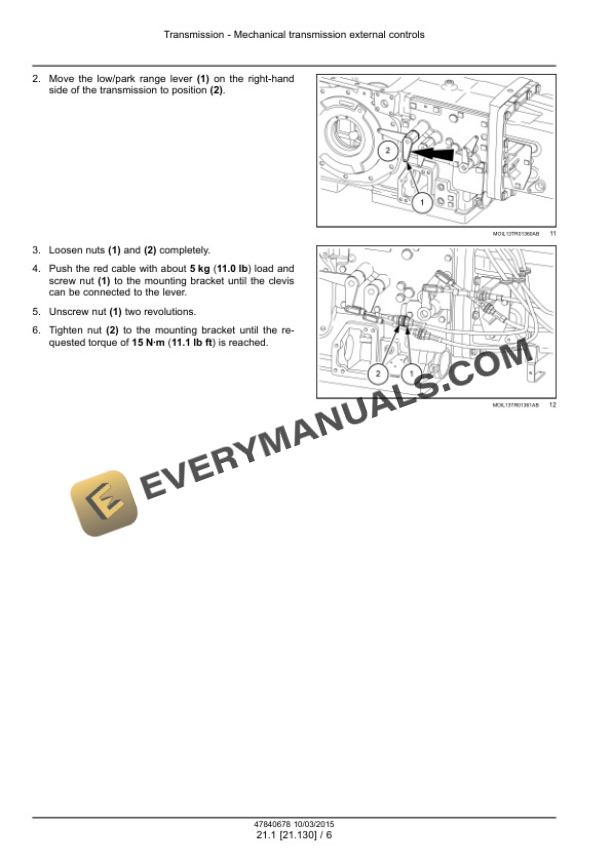

- 4.1. Mechanical transmission external controls 130
- 4.2. Power shuttle transmission 112
- 4.3. Master clutch housing 110
- 4.4. Power shuttle transmission external controls 134
- 4.5. Power shuttle transmission internal components 154
- 4.6. Creeper 160
- 4.7. Reverser 162
- 4.8. HiLo unit 168
- 4.9. Transmission cooler and lines 109
- 4.10. Transmission/Rear drive 118
- 4.11. Transmission/Rear drive internal components 148

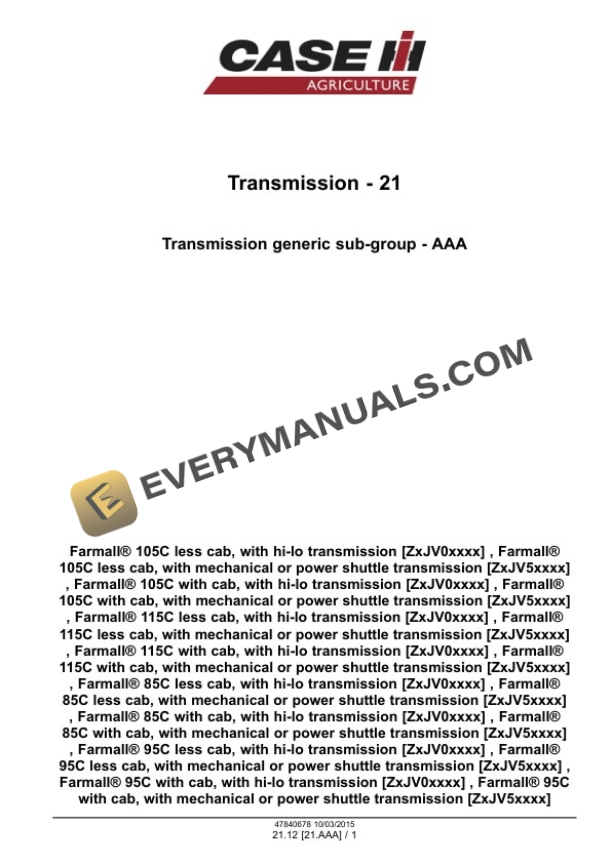

- 4.12. Transmission generic subgroup AAA
- 5. FourWheel Drive (4WD) system 23
- 5.1. Mechanical control 101
- 5.2. Electrohydraulic control 202
- 5.3. Drive shaft 314
