Dodge or Ram Truck Journey AWD 2019 Elactrical Diagrams V6-3.6L

Date: 2019
Type Of Manual: Elactrical Diagrams
Engine: V6-3.6L
Number of Pages: 217
Size: 10.2MB
Format: PDF

Category: Dodge or Ram Truck Wiring Diagrams PDF

Description

Model List:
- Journey AWD

1. Air Conditioning – Automatic A_C Circuit
2. Anti-Lock Brakes
3. Anti-Theft – Forced Entry Circuit (Base)
4. Anti-Theft – Forced Entry Circuit (Premium)
5. Anti-Theft – Passive Entry Circuit
6. Body Computer
7. Computer Data Lines
8. Cooling Fans
9. Cruise Control

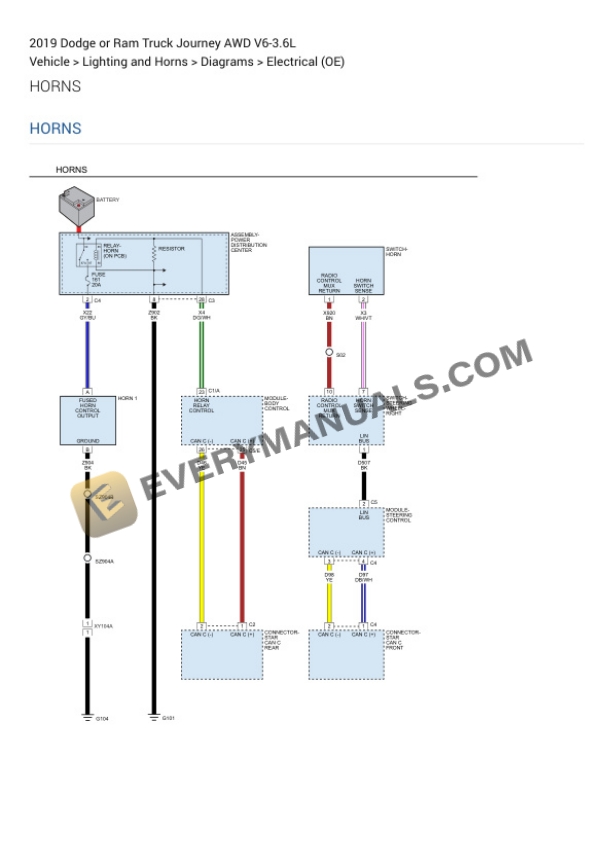

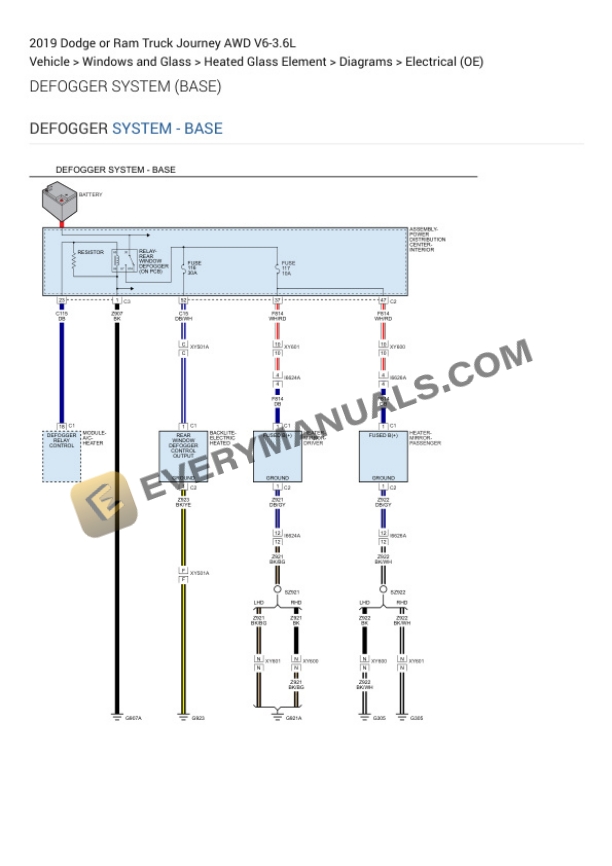

10. Defogger – Base
11. Defogger – Premium
12. Door Locks – Base
13. Door Locks – Premium
14. Engine Controls
15. Exterior Lights – Backup Lamps Circuit
16. Exterior Lights – Exterior Lamps Circuit
17. Exterior Lights – Trailer Tow Circuit
18. Ground Distribution

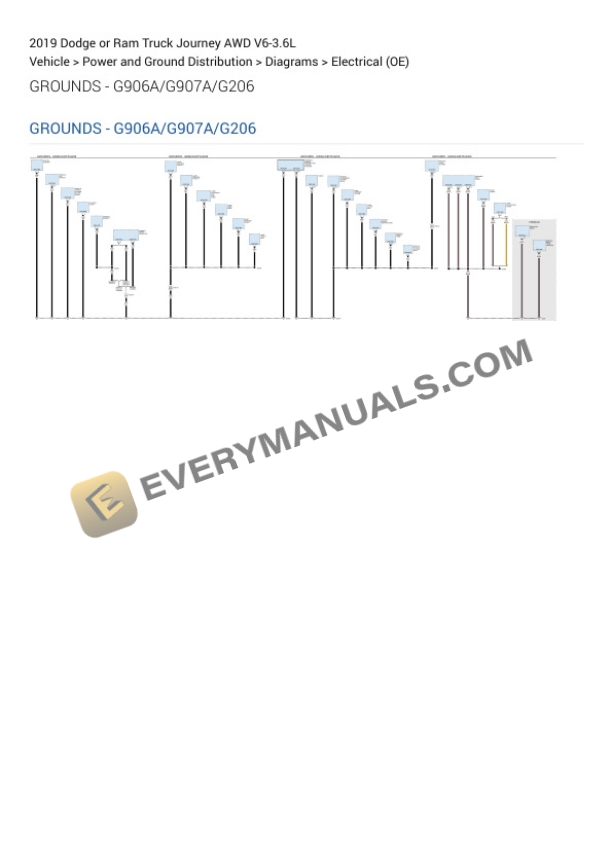

20. Heated Steering Wheel Circuit
21. Instrument Cluster
22. Interior Lights
23. Mirrors – Automatic Day_Night Mirror Circuit (Base)
24. Mirrors – Automatic Day_Night Mirror Circuit (Premium)
25. Mirrors – Power Mirrors Circuit (Base)
26. Mirrors – Power Mirrors Circuit (Premium)
27. Navigation – Navigation Circuit
28. Navigation – Parking Assistant Circuit
29. Navigation – Rear Camera Circuit
30. Power Distribution
32. Power Windows – Base
33. Power Windows – Premium
34. Seats – Drivers Lumbar Circuit
35. Seats – Heated Seats Circuit
36. Seats – Power Seats Circuit
37. Shift Interlock
38. Sound Systems – Hands Free Module Circuit
39. Sound Systems – Radio Circuit (Base)
40. Sound Systems – Radio Circuit (Premium)
41. Starting_Charging – Charging Circuit
42. Starting_Charging – Starting Circuit
43. Supplemental Restraints
44. Transmissions – A_T Circuit
45. Transmissions – AWD Circuit
46. Warning Systems
47. Wiper_Washer
48. A_C Control System (2.4L)
49. A_C Control System (3.6L)
50. Audio System (Base)
51. Audio System (Premium)
52. Audio Telematics Bus System (Base)
53. Audio Telematics Bus System (Premium)
54. Back-Up Camera
55. Back-Up Lamps System
56. Brake System_001
57. Brake System_002
58. CAN C Bus System
59. CAN IHS Bus System
60. Catalyst Monitor (2.4L)
61. Catalyst Monitor (3.6L)
62. Charging System (2.4L)
63. Charging System (3.6L)
64. Cooling System (2.4L)
65. Cooling System (3.6L)
66. Data Link Connector
67. Decklid_Liftgate Lock System
68. Defogger System (Base)
69. Defogger System (Premium)
70. Door Lock System (Base)
71. Door Lock System (Premium)
72. Evaporative Emissions System (2.4L)
73. Evaporative Emissions System (3.6L)
74. Fog Lamps System
75. Fuel Control System (2.4L)
76. Fuel Control System (3.6L)
77. Fuel Delivery System (2.4L)
78. Fuel Delivery System (3.6L)
79. Fuses – Battery
80. Fuses_Relays – ASD (2.4L)
81. Fuses_Relays – ASD (3.6L)
82. Fuses_Relays – Miscellaneous
83. Fuses_Relays – Run_Start
84. Grounds – G102_G104
85. Grounds – G901A_G101
86. Grounds – G906A_G907A_G206
87. Grounds – G921A_G305
88. Grounds – G921A_G305 (RHD)
89. Grounds – G923_G924_G926A
90. Grounds – Miscellaneous
91. Hands Free System
92. Headlamps System
93. Headlamps System (Export)
94. Heated Seat System
95. Heated Seat System (RHD)
96. Heated Steering Wheel System
97. HVAC System
98. HVAC System – RHD
99. Ignition System (2.4L)
100. Ignition System (3.6L)
101. Intake Air System (2.4L)
102. Intake Air System (3.6L)
103. Interior Lighting System
104. Interior Lighting System (RHD)
105. Interior PDC Fuses – Battery
106. Interior PDC Fuses_Relays – Miscellaneous
107. LIN Bus Systems
109. Message Systems
110. Mirror – Interior
111. Mirrors – Exterior (Base)
112. Mirrors – Exterior (Premium)
113. Park Assist System
114. Park Lamps System
115. Passive Entry System
116. Power Outlets
117. Power Seat System
118. Power Seat System (RHD)
119. Restraint Systems
120. Speed Control System
121. Starting System (2.4L)
122. Starting System (3.6L)
123. Stop Lamps System
124. Sunroof_Power Top System
125. Throttle Control System (2.4L)
126. Throttle Control System (3.6L)
127. Tire Pressure Monitoring (TPM) System
128. Trailer Tow System
129. Transfer Case
130. Transmission – 40TES
131. Transmission – 62TE (2.4L)
132. Transmission – 62TE (3.6L)
133. Turn Signal Lamps System
134. Universal Transmitter
135. Vehicle Theft Security System
136. Video Entertainment System
137. Windows (Base)
138. Windows (Premium)
139. Wiper_Washer Systems
