Dodge or Ram Truck RAM 1500 Truck 4WD 2019 Elactrical Diagrams V6-3.6L eTorque MHEV

Date: 2019
Type Of Manual: Elactrical Diagrams
Engine: V6-3.6L eTorque MHEV
Number of Pages: 327
Size: 16.2MB
Format: PDF

Category: Dodge or Ram Truck Wiring Diagrams PDF

Description

Model List:
- RAM 1500 Truck 4WD

1. Adjustable Pedal Circuit
2. Air Conditioning – Automatic A_C Circuit
3. Air Conditioning – Manual A_C Circuit
4. Anti-Lock Brakes
5. Anti-Theft – Forced Entry Circuit
6. Anti-Theft – Passive Entry Circuit
7. Body Computer
8. Computer Data Lines
9. Cooling Fans
10. Cruise Control
13. Electronic Power Steering
14. Electronic Suspension – Active Vibration Cancellation Circuit
15. Electronic Suspension – Electronic Air Suspension Circuit
16. Engine Controls
17. Exterior Lights – Backup Lamps Circuit
18. Exterior Lights – Exterior Lamps Circuit
19. Exterior Lights – Trailer Tow Circuit
20. Ground Distribution
21. Headlights – Base
22. Headlights – Premium
23. Heated Steering Wheel Circuit
24. Instrument Cluster – Instrument Cluster Circuit
25. Instrument Cluster – Overhead Console Circuit (Base)
26. Instrument Cluster – Overhead Console Circuit (Premium)
27. Interior Lights – Courtesy Lamps Circuit
28. Interior Lights – Instrument Illumination Circuit
29. Memory Systems – Memory Mirrors Circuit (W_ Trailer Tow)
30. Memory Systems – Memory Mirrors Circuit (W_O Trailer Tow)
31. Memory Systems – Memory Seat Circuit
32. Mirrors – Automatic Day_Night Mirror Circuit
33. Mirrors – Power Mirrors Circuit (W_ Trailer Tow)
34. Mirrors – Power Mirrors Circuit (W_O Trailer Tow)
35. Navigation – Around Vision Camera Circuit
36. Navigation – Blind Spot Monitoring Circuit (W_ Trailer Tow)
37. Navigation – Blind Spot Monitoring Circuit (W_O Trailer Tow)
38. Navigation – Navigation Circuit (Base)
39. Navigation – Navigation Circuit (Premium 1)
40. Navigation – Navigation Circuit (Premium 2)
41. Navigation – Parking Assistant Circuit
42. Park Brake Release Circuit
43. Power Distribution
44. Power Tops – Double Panel Sunroof Circuit
45. Power Tops – Single Panel Sunroof Circuit
46. Power Windows
47. Seats – Driver Power Seat Circuit
48. Seats – Front Heated Seats Circuit
49. Seats – Lumbar Circuit
50. Seats – Passenger Power Seat Circuit
51. Seats – Rear Heated Seats Circuit
52. Shift Interlock – Shift Interlock Circuit
53. Sound Systems – Active Noise Control Circuit
54. Sound Systems – Radio Circuit (Base)
55. Sound Systems – Radio Circuit (Premium 1)
56. Sound Systems – Radio Circuit (Premium 2)
57. Starting_Charging – Charging Circuit (W_ eTorque)
58. Starting_Charging – Charging Circuit (W_O eTorque)
59. Starting_Charging – Starting Circuit (W_ eTorque)
60. Starting_Charging – Starting Circuit (W_O eTorque)
61. Supplemental Restraints
62. Transmissions – A_T Circuit
63. Transmissions – Transfer Case Circuit (W_ Electronic On Demand Transfer Case)
64. Transmissions – Transfer Case Circuit (W_ Electronic Part Time Transfer Case)
65. Trunk, Tailgate, Fuel Doors – Deck Lid Release Circuit
66. Trunk, Tailgate, Fuel Doors – Power Running Boards Circuit
67. Trunk, Tailgate, Fuel Doors – Power Tailgate Circuit
68. Warning Systems
69. Wiper_Washer
70. A_C Control System (3.6L)
71. A_C Control System (5.7L)
72. Active Noise Cancellation System (Stand Alone)
73. Active Vibration Cancellation
74. Adaptive Speed Control System
75. Adjustable Pedals System
76. Air Suspension System
77. Audio System (Base)
78. Audio System (Premium 1)
79. Audio System (Premium 2)
80. Axle Locker System

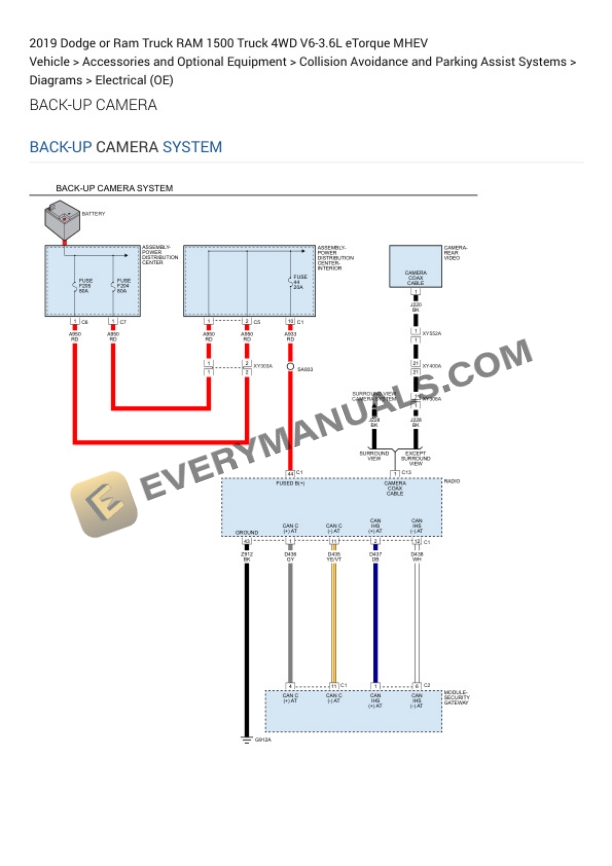

81. Back-Up Camera
82. Back-Up Lamps System
83. Blind Spot Monitor System (Except Trailer Tow)
84. Blind Spot Monitor System (Trailer Tow)
85. Brake System_001
86. Brake System_002
87. CAN C Bus System
88. CAN IHS Bus System
89. CAN Private Bus System
90. Catalyst Monitor System (3.6L)_001
91. Catalyst Monitor System (3.6L)_002
92. Catalyst Monitor System (5.7L)_001
93. Catalyst Monitor System (5.7L)_002
94. Cooling System (3.6L)
95. Cooling System (5.7L)
96. Data Link Connector
97. Defogger System
98. Door Lock System
99. EGR System (3.6L)_001
100. EGR System (3.6L)_002
101. Electric Parking Brake System
102. Electric Power Steering (EPS) System
103. Evaporative Emissions System (3.6L)_001
104. Evaporative Emissions System (3.6L)_002
105. Evaporative Emissions System (5.7L)_001
106. Evaporative Emissions System (5.7L)_002
107. Fog Lamps System

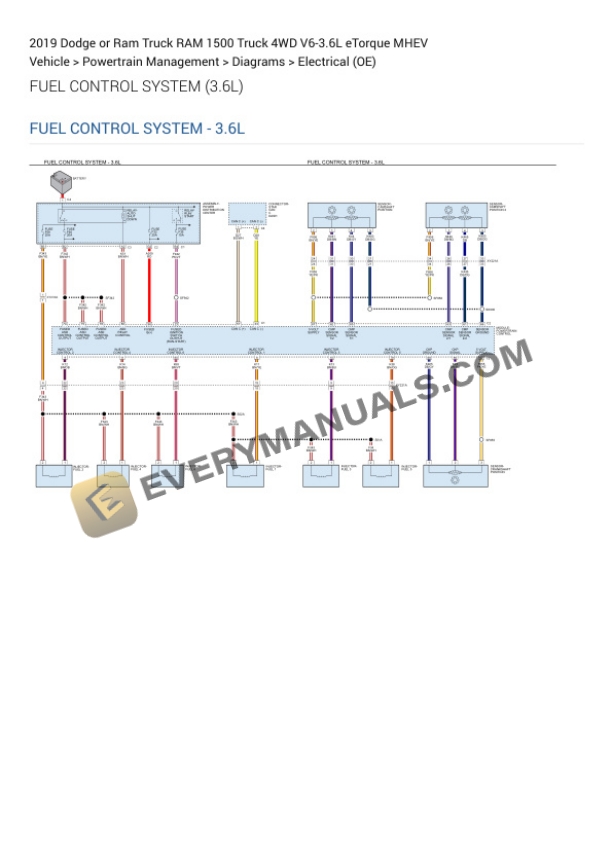

108. Fuel Control System (3.6L)
109. Fuel Control System (5.7L)
110. Fuel Delivery System (3.6L)
111. Fuel Delivery System (5.7L)
112. Fuses – Battery – Electrical Diagram_001
113. Fuses – Battery – Electrical Diagram_002
114. Fuses_Relays – ASD (3.6L)
115. Fuses_Relays – ASD (5.7L)
116. Fuses_Relays – Miscellaneous
117. Fuses_Relays – Run
118. Fuses_Relays – Run_Start
119. Grounds – G802A_G803A_G812A_G815A
120. Grounds – G905A_G906A_G908A
121. Grounds – G909A_G910A_G911A_G934A_GZ937A
122. Grounds – G912A_G913A_G914A_G916A
123. Grounds – G921A_G922A_G924A_G927A
124. Grounds – G933A_G945A_G946A
125. Grounds – Miscellaneous
126. Hands Free System
127. Headlamps System (Base)
128. Headlamps System (Premium)
129. Heated Seat System (Front)
130. Heated Seat System (Rear)
131. Heated Steering Wheel System
132. HVAC System (ATC)
133. HVAC System (MTC)
134. Ignition System (3.6L)_001
135. Ignition System (3.6L)_002
136. Ignition System (5.7L)_001
137. Ignition System (5.7L)_002
138. Intake Air System (3.6L)
139. Intake Air System (5.7L)
140. Interior Lighting System
141. Interior Lighting System (Dimming)
142. Interior PDC Fuses_Relays – Miscellaneous
143. Interior PDC Fuses_Relays – Run
144. Interior PDC Fuses_Relays – Run_Accessory
145. Interior PDC Fuses_Relays – Run_Start
146. LIN Bus System
147. Media Port (Long Console)
148. Media Port (Short Console)
149. Memory Seat System
150. Message Systems
151. Mirrors (Exterior, Except Trailer Tow)
152. Mirrors (Exterior, Trailer Tow)
153. Mirrors (Interior)
154. Park Assist System
155. Park Lamps System
156. Passive Entry System
157. Power Outlets (Long Console)
158. Power Outlets (Short Console)
159. Power Seat System
160. Power Side Step System
161. Remote Start System
162. Restraint Systems
163. Speed Control System
164. Starting_Charging System (3.6L_5.7L, eTorque)_001
165. Starting_Charging System (3.6L_5.7L, eTorque)_002
166. Starting_Charging System (5.7L, Except eTorque)_001
167. Starting_Charging System (5.7L, Except eTorque)_002
168. Stop Lamps System
169. Storage Box (Lock System)
170. Sunroof_Power Top System (Dual Pane)
171. Sunroof_Power Top System (Single Pane)
172. Surround View Camera System
173. Tailgate – Lock System (Lock System, Multifunction)_001
174. Tailgate – Lock System (Lock System, Multifunction)_002
175. Tailgate – Lock System (Lock System, Standard)_001
176. Tailgate – Lock System (Lock System, Standard)_002
177. Throttle Control System (3.6L)
178. Throttle Control System (5.7L)
179. Tire Pressure Monitoring (TPM) System
180. Trailer Tow System
181. Transfer Case (DH8)
182. Transfer Case (DH9)
183. Transmission (3.6L_5.7L)
184. Turn Signal Lamps System
185. Universal Transmitter
186. Vehicle Theft Security System
188. Wiper_Washer Systems
