Dodge or Ram Truck RAM 1500 Truck 4WD 2023 Elactrical Diagrams V6-3.6L eTorque MHEV

Date: 2023
Type Of Manual: Elactrical Diagrams
Engine: V6-3.6L eTorque MHEV
Number of Pages: 408
Size: 20.2MB
Format: PDF

Category: Dodge or Ram Truck Wiring Diagrams PDF

Description

Model List:
- RAM 1500 Truck 4WD

1. Active Body Work
2. Adjustable Pedal Circuit
3. Air Conditioning – Automatic A_C Circuit
4. Air Conditioning – Manual A_C Circuit
5. Anti-Lock Brakes
6. Anti-Theft – Forced Entry Circuit
7. Anti-Theft – Passive Entry Circuit
8. Body Computer
9. Computer Data Lines
10. Cooling Fans
11. Cruise Control
14. Electronic Power Steering
15. Electronic Suspension – Active Vibration Cancellation Circuit
16. Electronic Suspension – Electronic Air Suspension Circuit
17. Electronic Suspension – Electronic Damper Control Circuit
18. Engine Controls
19. Exterior Lights – Backup Lamps Circuit
20. Exterior Lights – Exterior Lamps Circuit
21. Exterior Lights – Trailer Tow Circuit
22. Ground Distribution
23. Headlights – Base
24. Headlights – Premium
25. Heated Steering Wheel Circuit
26. Instrument Cluster – Instrument Cluster Circuit (W_ 12 Inch Display)
27. Instrument Cluster – Instrument Cluster Circuit (W_O 12 Inch Display)
28. Instrument Cluster – Overhead Console Circuit (Base)
29. Instrument Cluster – Overhead Console Circuit (Premium)
30. Interior Lights – Courtesy Lamps Circuit
31. Interior Lights – Instrument Illumination Circuit
32. Memory Systems – Memory Mirrors Circuit (Early Production W_ Trailer Tow)
33. Memory Systems – Memory Mirrors Circuit (Late Production W_ Trailer Tow)
34. Memory Systems – Memory Mirrors Circuit (W_O Trailer Tow)
35. Memory Systems – Memory Seat Circuit
36. Mirrors – Automatic Day_Night Mirror Circuit
37. Mirrors – Power Mirrors Circuit (Early Production W_ Trailer Tow)
38. Mirrors – Power Mirrors Circuit (Late Production W_ Trailer Tow)
39. Mirrors – Power Mirrors Circuit (W_O Trailer Tow)
40. Navigation – Around Vision Camera Circuit
41. Navigation – Blind Spot Monitoring Circuit
42. Navigation – Navigation Circuit (Base W_ RFL amp RFV)
43. Navigation – Navigation Circuit (Base W_ RFU)
44. Navigation – Navigation Circuit (Premium 1 W_ RFL amp RFV)
45. Navigation – Navigation Circuit (Premium 1 W_ RFU)
46. Navigation – Navigation Circuit (Premium 2 W_ RFL amp RFV)
47. Navigation – Navigation Circuit (Premium 2 W_ RFU)
48. Navigation – Parking Assistant Circuit
49. Navigation – Telematics Circuit
50. Park Brake Release Circuit
51. Power Distribution
53. Power Windows
54. Seats – Driver Power Seat Circuit
55. Seats – Front Heated Seats Circuit
56. Seats – Lumbar Circuit
57. Seats – Passenger Power Seat Circuit
58. Seats – Rear Heated Seats Circuit
59. Shift Interlock – Shift Interlock Circuit
60. Sound Systems – Active Noise Control Circuit
61. Sound Systems – Radio Circuit (Base W_ RFL amp RFV)
62. Sound Systems – Radio Circuit (Base W_ RFU)
63. Sound Systems – Radio Circuit (Premium 1 W_ RFL amp RFV)
64. Sound Systems – Radio Circuit (Premium 1 W_ RFU)
65. Sound Systems – Radio Circuit (Premium 2 W_ RFL amp RFV)
66. Sound Systems – Radio Circuit (Premium 2 W_ RFU)
67. Starting_Charging – Charging Circuit (W_ eTorque)
68. Starting_Charging – Charging Circuit (W_O eTorque)
69. Starting_Charging – Starting Circuit (W_ eTorque)
70. Starting_Charging – Starting Circuit (W_O eTorque)
71. Supplemental Restraints
72. Transmissions – A_T Circuit
73. Transmissions – Transfer Case Circuit (W_ Electronic On Demand Transfer Case)
74. Transmissions – Transfer Case Circuit (W_ Electronic Part Time Transfer Case)
75. Trunk, Tailgate, Fuel Doors – Deck Lid Release Circuit
76. Trunk, Tailgate, Fuel Doors – Power Running Boards Circuit
77. Trunk, Tailgate, Fuel Doors – Power Tailgate Circuit
78. Warning Systems
79. Wiper_Washer
80. A_C Control System (3.6L)
81. A_C Control System (5.7L, GPEC5)
82. Active Damping System
83. Active Noise Cancellation System (Stand Alone)
84. Active Vibration Cancellation
85. Adaptive Speed Control System
86. Adjustable Pedals System
87. Air Suspension System
88. Audio System (Base, RFL)
89. Audio System (Base, RFU)
90. Audio System (Base, RFV)
91. Audio System (Premium 1, RFL)
92. Audio System (Premium 1, RFU)
93. Audio System (Premium 1, RFV)
94. Audio System (Premium 2, RFL)

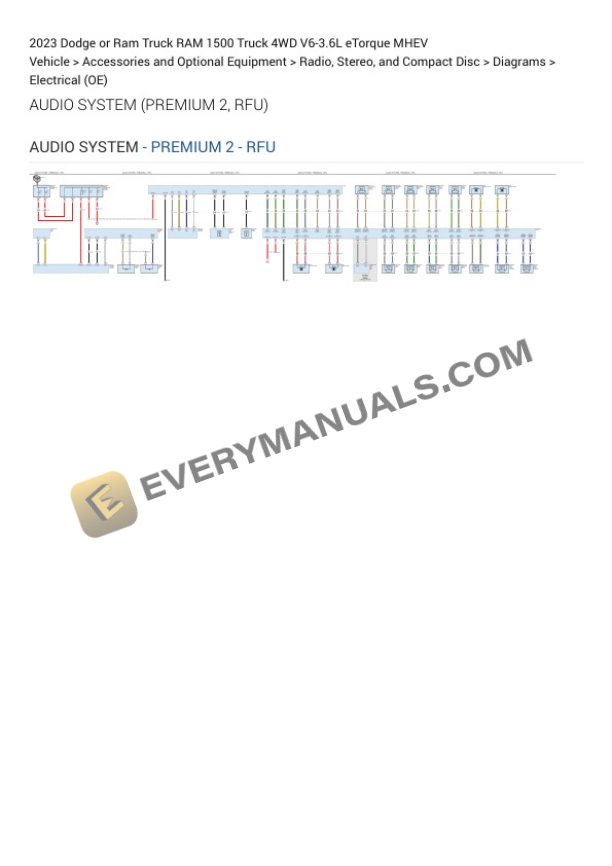

95. Audio System (Premium 2, RFU)
96. Audio System (Premium 2, RFV)
97. Axle Locker System
98. Back-Up Camera System (RFL)
99. Back-Up Camera System (RFU)
100. Back-Up Camera System (RFV)
101. Back-Up Lamps System
102. Blind Spot Monitor System
103. Brake System_001
104. Brake System_002
105. Cabin Heater System
106. CAN C Bus System
107. CAN IHS Bus System
108. CAN Private Bus System
109. Catalyst Monitor System (3.6L)_001
110. Catalyst Monitor System (3.6L)_002
111. Catalyst Monitor System (5.7L, GPEC5)_001
112. Catalyst Monitor System (5.7L, GPEC5)_002
113. Cooling System (3.6L)
114. Cooling System (5.7L, GPEC5)
115. Data Link Connector
116. Defogger System
117. Door Lock System
118. EGR System (3.6L)_001
119. EGR System (3.6L)_002
120. Electric Parking Brake System
121. Electric Power Steering (EPS) System
122. Ethernet Bus System
123. Evaporative Emissions System (3.6L)_001
124. Evaporative Emissions System (3.6L)_002
125. Evaporative Emissions System (5.7L, GPEC5)_001
126. Evaporative Emissions System (5.7L, GPEC5)_002
127. Fog Lamps System

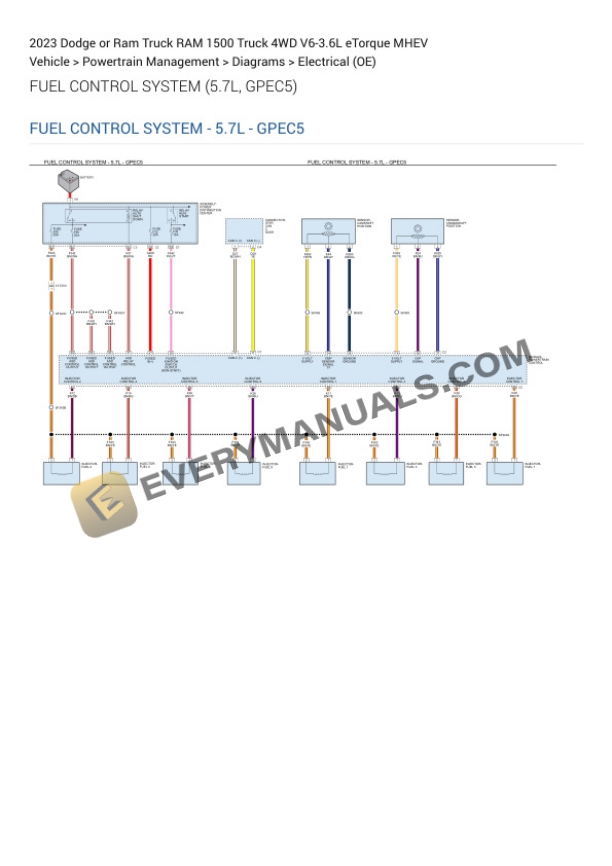

128. Fuel Control System (3.6L)
129. Fuel Control System (5.7L, GPEC5)
130. Fuel Delivery System (3.6L)
131. Fuel Delivery System (5.7L, GPEC5)
132. Fuses – Battery – Electrical Diagram_001
133. Fuses – Battery – Electrical Diagram_002
134. Fuses_Relays – ASD (3.6L)
135. Fuses_Relays – ASD (5.7L_6.2L)
136. Fuses_Relays – Miscellaneous
137. Fuses_Relays – Run
138. Fuses_Relays – Run_Start
139. Global Telematics Communication
140. Grounds – G802A_G803A_G815A
141. Grounds – G905A_G906A_G908A_G908B_G908C
142. Grounds – G909A_G910A_G911A_G934A_GZ937A
143. Grounds – G912A_G913A_G914A_G916A
144. Grounds – G921A_G922A_G924A_G927A
145. Grounds – G933A_G945A_G946A
146. Grounds – Miscellaneous
147. Hands Free System RFU
148. Hands Free System RFV_RFL

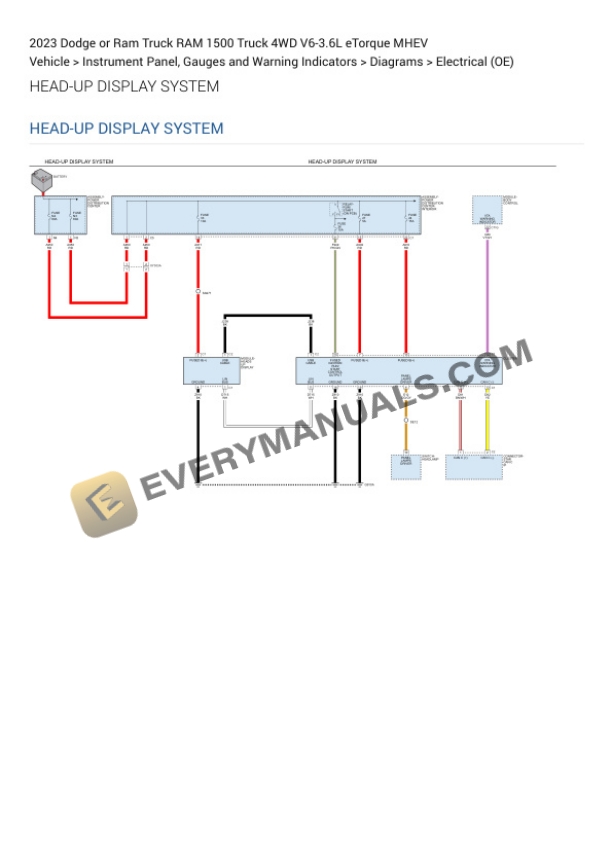

149. Head-Up Display System
150. Head-Up Display System Premium
151. Headlamps System (Base)
152. Headlamps System (Premium)
153. Heated Seat System (Front)
154. Heated Seat System (Rear)
155. Heated Steering Wheel System
156. HVAC System (ATC)
157. HVAC System (MTC)
158. Ignition System (3.6L)_001
159. Ignition System (3.6L)_002
160. Ignition System (5.7L, GPEC5)_001
161. Ignition System (5.7L, GPEC5)_002
162. Intake Air System (3.6L)
163. Intake Air System (5.7L, GPEC5)
164. Interior Lighting System
165. Interior Lighting System (Dimming)
166. Interior PDC Fuses_Relays – Miscellaneous
167. Interior PDC Fuses_Relays – Run
168. Interior PDC Fuses_Relays – Run_Accessory
169. Interior PDC Fuses_Relays – Run_Start
170. LIN Bus System
171. Media Port (Long Console) (RFU)
172. Media Port (Long Console) (RFV_RFL)
173. Media Port (Short Console) (RFU)
174. Media Port (Short Console) (RFV_RFL)
175. Memory Seat System
176. Message Systems
177. Message Systems (Premium)
178. Mirrors (1st Design) (Exterior, Except Trailer Tow)
179. Mirrors (1st Design) (Exterior, Trailer Tow)
180. Mirrors (1st Design) (Interior)
181. Mirrors (2nd Design) (Exterior, Trailer Tow)
182. Park Assist System
183. Park Lamps System
184. Park Lamps System (TRX)
185. Passive Entry System
186. Power Outlets (Long Console, Base)
187. Power Outlets (Long Console, Premium)
188. Power Outlets (Short Console, Base)
189. Power Outlets (Short Console, Premium)
190. Power Seat System
191. Power Side Step System
192. Remote Start System
193. Restraint Systems
194. Speed Control System
195. Starting_Charging System (3.6L, eTorque)_001
196. Starting_Charging System (3.6L, eTorque)_002
197. Starting_Charging System (5.7L, eTorque, GPEC5)_001
198. Starting_Charging System (5.7L, eTorque, GPEC5)_002
199. Starting_Charging System (5.7L, GPEC2)_001
200. Starting_Charging System (5.7L, GPEC2)_002
201. Stop Lamps System
202. Storage Box (Lock System)
203. Sunroof_Power Top System
204. Surround View Camera System
205. Tailgate – Lock System (Lock System, Multifunction)_001
206. Tailgate – Lock System (Lock System, Multifunction)_002
207. Tailgate – Lock System (Lock System, Standard, Base)_001
208. Tailgate – Lock System (Lock System, Standard, Base)_002
209. Tailgate – Lock System (Lock System, Standard, Premium)_001
210. Tailgate – Lock System (Lock System, Standard, Premium)_002
