Dodge or Ram Truck RAM 4500 Chassis Cab Truck 2WD 2019 Elactrical Diagrams L6-6.7L DSL Turbo

Date: 2019
Type Of Manual: Elactrical Diagrams
Engine: L6-6.7L DSL Turbo
Number of Pages: 112
Size: 8.8MB
Format: PDF

Category: Dodge or Ram Truck Wiring Diagrams PDF

Description

Model List:
- RAM 4500 Chassis Cab Truck 2WD

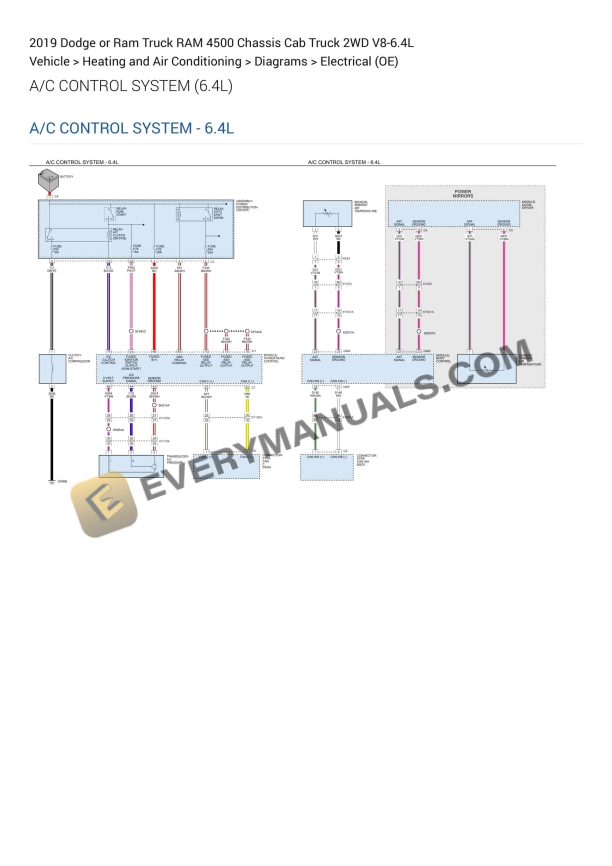

1. A_C Control System (6.4L)
2. A_C Control System (6.7L)
3. Active Noise Cancellation System (Stand Alone)
4. Adaptive Speed Control System
5. Adjustable Pedals System
6. Aftertreatment System (6.7L)_001
7. Aftertreatment System (6.7L)_002
8. Audio System (Base)
9. Audio System (Premium)
10. Auxiliary PDC Fuses_Relays – Miscellaneous
11. Back-Up Alarm System
12. Back-Up Camera System (Base)
13. Back-Up Camera System (Premium)
14. Back-Up Camera System (Upfitter)
15. Back-Up Lamps System
16. Brake System_001
17. Brake System_002
18. Cabin Heater System
19. CAN C Bus System
20. CAN IHS Bus System
21. CAN Private Bus System
22. Catalyst Monitor (6.4L)_001
23. Catalyst Monitor (6.4L)_002
24. Cooling System (6.4L)
25. Cooling System (6.7L)
26. Data Link Connector
27. Defogger System
28. Diesel Exhaust Fluid (DEF) System_001
29. Diesel Exhaust Fluid (DEF) System_002
30. Door Lock System
31. EGR System (6.4L)_001
32. EGR System (6.4L)_002
33. EGR System (6.7L)_001
34. EGR System (6.7L)_002
35. Evaporative Emissions System (6.4L)_001
36. Evaporative Emissions System (6.4L)_002
37. Fleet Telematics Communication
38. Fog Lamps System
39. Fuel Control System (6.4L)
40. Fuel Control System (6.7L)
41. Fuel Delivery System (6.4L)
42. Fuel Delivery System (6.7L)
43. Fuses – Battery
44. Fuses_Relays – ASD (6.4L)
45. Fuses_Relays – Miscellaneous (6.4L)
46. Fuses_Relays – Miscellaneous (6.7L)
47. Fuses_Relays – Run
48. Fuses_Relays – Run_Accessory
49. Fuses_Relays – Run_Start
50. Grounds – G904A_G905A_G906A
51. Grounds – G907A_G907B
52. Grounds – G908A_G908B_G908C
53. Grounds – G909A_G910A
54. Grounds – G911A_G912A_G914A
55. Grounds – G915A_G917A_GZ924A
56. Grounds – Miscellaneous

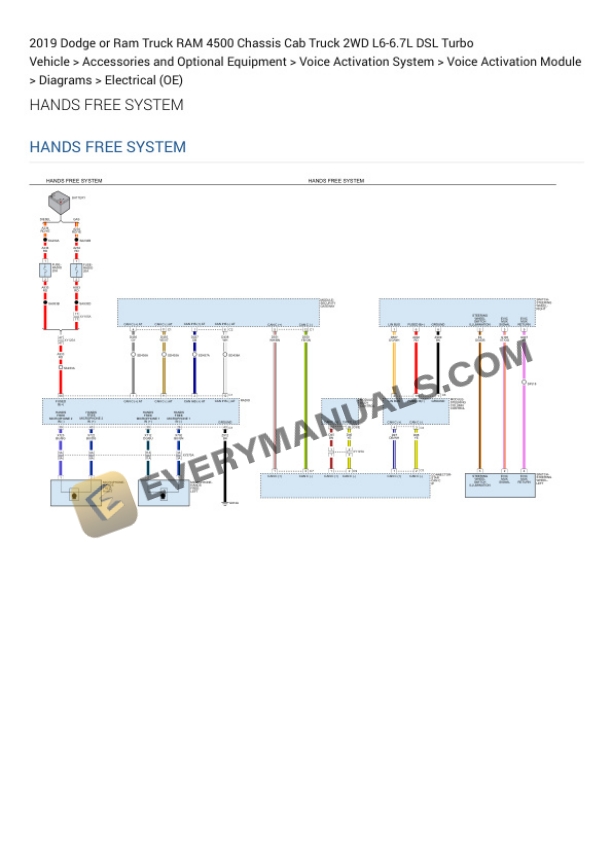

57. Hands Free System
58. Headlamps System (Base)
59. Headlamps System (Premium)
60. Heated Seat System (Front)
61. Heated Seat System (Rear)
62. Heated Steering Wheel System
63. HVAC System – ATC
64. HVAC System – MTC
65. Ignition System (6.4L)
66. Intake Air System (6.4L)
67. Intake Air System (6.7L)
68. Interior Lighting
69. LIN Bus System
70. Media Port (Long Console)
71. Media Port (Short Console)
72. Memory Seat System
73. Message Systems

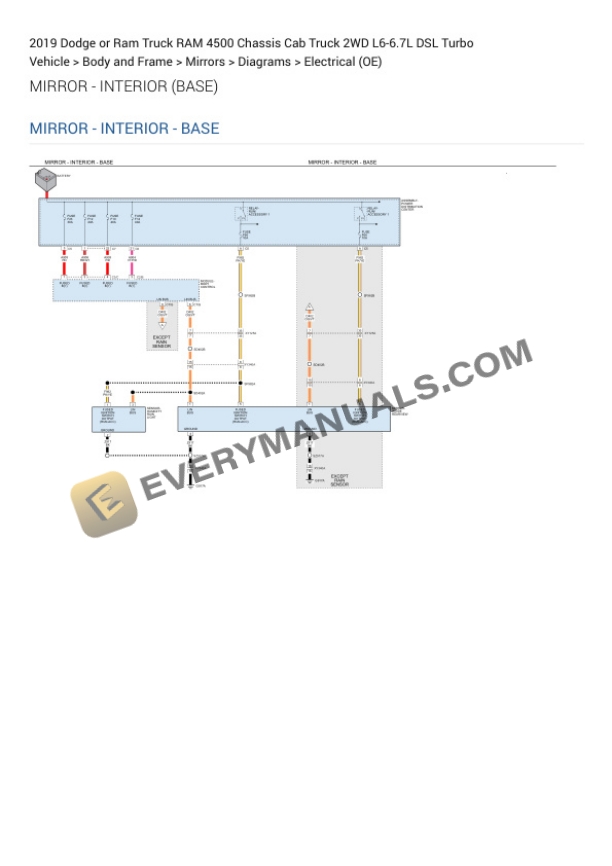

74. Mirror – Interior (Base)
75. Mirror – Interior (Premium)
76. Mirrors – Exterior
77. Park Assist System
78. Park Lamps System
79. Passive Entry System
80. Power Outlets (Long Console)
81. Power Outlets (Short Console)
82. Power Seat System
83. Restraint Systems

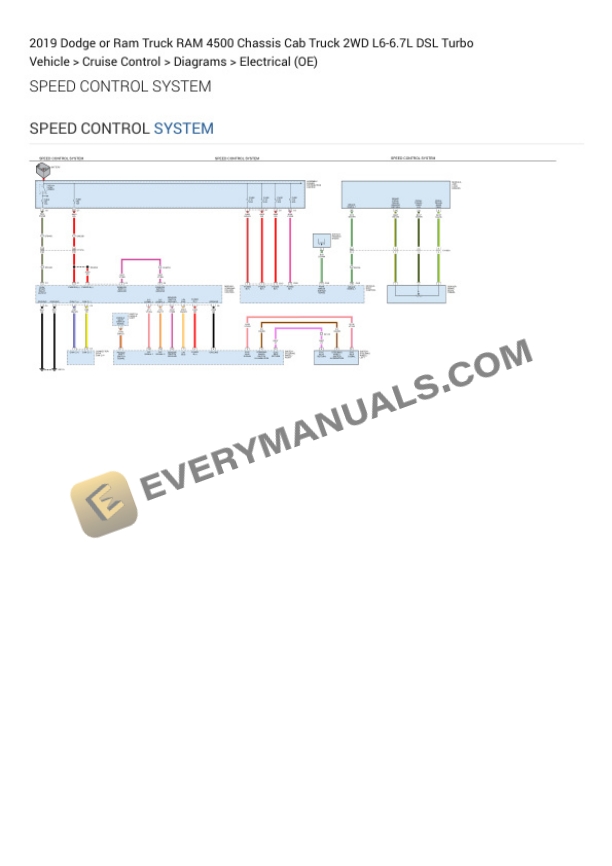

84. Speed Control System
85. Starting_Charging System (6.4L – Dual Generator)
86. Starting_Charging System (6.4L – Single Generator)
87. Starting_Charging System (6.7L – Dual Generator)
88. Starting_Charging System (6.7L – Single Generator)

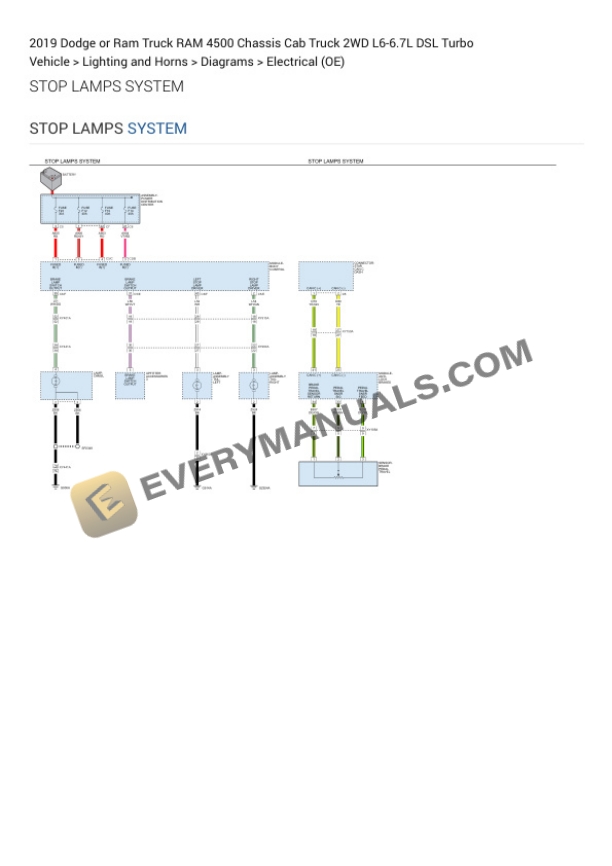

89. Stop Lamps System
90. Surround View Camera System
91. Throttle Control System (6.4L)
92. Throttle Control System (6.7L)
93. Tire Pressure Monitoring (TPM) System
94. Trailer Tow System
95. Trailer Tow System – Tire Pressure Monitoring System
96. Trailer Tow System – Trailer Interface Module
97. Transfer Case – Automatic (6.4L)
98. Transfer Case – Automatic (6.7L)
99. Transfer Case – Manual (6.4L)
100. Transfer Case – Manual (6.7L)
101. Transmission – AS66RC
102. Transmission – AS69RC
103. Turbo Charger System (6.7L)
104. Turn Signal Lamps System
105. Universal Transmitter
106. Upfitters (6.4L)
107. Upfitters (6.7L)
108. Vehicle System Interface
109. Vehicle Theft Security System
111. Wiper_Washer Systems
