Grove GMK4075 Crane Parts Manuals, Diagrams
$300
Manual Type: Parts Catalog, Hydraulic Diagram, Wiring Diagram
Language: English
Size: 125 MB
Format: PDF
Engine Type: Crane
Model: GMK4075
Description
Contents:
03056230 compressed air system carrier
03056231 hydraulic system steering
03057302 hydraulic system superstructure
03063411 components overview carrier

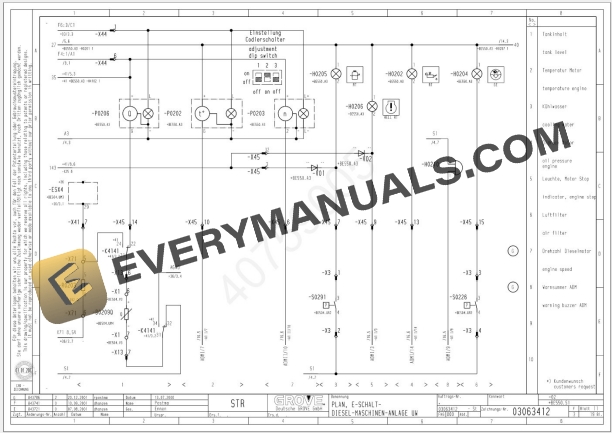

03063412 wiring diagram carrier diesel engine installation
03063413 wiring diagram carrier lightning
03063414 wiring diagram auxillary equipment
03063415 wiring diagram carrier drive unit
03063416 wiring diagram carrier level adjustment system
03063417 wiring diagram carrier outriggers
03063418 wiring diagram steering carrier
03063441 parameter settings ADM
03063442 parameter settings FMR
03064023 components overview superstructure
03064024 wiring diagram superstructure diesel engine installation
03064025 wiring diagram superstructure lightning
03064026 wiring diagram main hoist
03064027 wiring diagram auxillary hoist
03064028 wiring diagram derricking gear telescopes
03064029 wiring diagram counter weights
03064030 wiring diagram slewing gear
03064031 wiring diagram jib
03064032 wiring diagram auxiallary equipment
03064033 wiring diagram safety equipment
03064034 wiring diagram superstructure drive unit
03064035 wiring diagram superstructure control system
03064036 wiring diagram steering superstructure
03064038 wiring diagram carrier controls
3056716 List of Spare Parts
