Honda Civic Si 2007 Electrical Diagrams L4-2.0L

Date: 2007
Type Of Manual: Electrical Diagrams
Engine: L4-2.0L
Number of Pages: 824
Size: 61.5MB
Format: PDF

Category: Honda Wiring Diagrams PDF

Description

Model List:
- Civic Si

1. Air Conditioning – Automatic A_C Circuit (Hybrid)
2. Air Conditioning – Manual A_C Circuit (Except Hybrid)
3. Anti-Lock Brakes – Advanced Hydraulic Booster Circuit
4. Anti-Lock Brakes – Anti-Lock Brakes Circuit (Except SI)
5. Anti-Lock Brakes – Anti-Lock Brakes Circuit (SI)
6. Anti-Theft – Forced Entry Circuit (Except Hybrid Canada)
7. Anti-Theft – Forced Entry Circuit (Except Hybrid USA)
8. Anti-Theft – Forced Entry Circuit (Hybrid)
9. Anti-Theft – Immobilizer Circuit (Except Hybrid)
10. Anti-Theft – Immobilizer Circuit (Hybrid)
11. Body Computer – Except Hybrid
12. Body Computer – Hybrid
13. Computer Data Lines – B-CAN Circuit
14. Computer Data Lines – Data Link Connector Circuit (Except SI)
15. Computer Data Lines – Data Link Connector Circuit (Hybrid)
16. Computer Data Lines – Data Link Connector Circuit (SI)
17. Computer Data Lines – F-CAN High_Low amp B-CAN Circuits
18. Cooling Fans – Except Hybrid
19. Cooling Fans – Hybrid
20. Cruise Control – Except Hybrid
21. Cruise Control – Hybrid
22. Defogger – Rear Defogger Circuit (Except Hybrid)
23. Defogger – Rear Defogger Circuit (Hybrid)
24. Door Locks – Except Hybrid Canada
25. Door Locks – Except Hybrid USA
26. Door Locks – Hybrid
27. Electronic Power Steering – Hybrid
28. Electronic Power Steering – SI
29. Engine Controls
30. Exterior Lights – Back-up Lamps Circuit (A_T)
31. Exterior Lights – Back-up Lamps Circuit (M_T)
32. Exterior Lights – Exterior Lamps Circuit (Except Hybrid)
33. Exterior Lights – Exterior Lamps Circuit (Hybrid)
34. Ground Distribution – Except Hybrid
35. Ground Distribution – Hybrid
36. Headlights – Except Hybrid
37. Headlights – Hybrid
38. Horns – Except Hybrid
39. Horns – Hybrid
40. Instrument Cluster – DX, DX-G
41. Instrument Cluster – EX, LX, SI
42. Instrument Cluster – Hybrid
43. Interior Lights – Courtesy Lamps Circuit (Except Hybrid W_ Sunroof)
44. Interior Lights – Courtesy Lamps Circuit (Except Hybrid W_O Sunroof)
45. Interior Lights – Courtesy Lamps Circuit (Hybrid)
46. Interior Lights – Instrument Illumination Circuit (Except Hybrid)
47. Interior Lights – Instrument Illumination Circuit (Hybrid)
48. Mirrors – Auto Dimming Rear View Mirror (A_T Except Hybrid)
49. Mirrors – Auto Dimming Rear View Mirror (Hybrid)
50. Mirrors – Auto Dimming Rear View Mirror (M_T Except Hybrid)
51. Mirrors – Heated Mirrors Circuit (Coupe)
52. Mirrors – Heated Mirrors Circuit (Hybrid)
53. Mirrors – Heated Mirrors Circuit (Sedan)
54. Mirrors – Power Mirrors Circuit (Coupe)
55. Mirrors – Power Mirrors Circuit (Hybrid)
56. Mirrors – Power Mirrors Circuit (Sedan W_O Hybrid)
57. Navigation – 2 Door EX amp SI
58. Navigation – 4 Door EX
59. Navigation – 4 Door SI
60. Navigation – Hybrid
61. Power Distribution – Except Hybrid
62. Power Distribution – Hybrid
63. Power Tops – 2 Door
64. Power Tops – 4 Door
65. Power Windows – 2 Door_ LX, EX, SI
66. Power Windows – 4 Door_ LX, EX, SI
67. Power Windows – DX, DX-G
68. Power Windows – Hybrid
69. Shift Interlock – Reverse Lockout Circuit
70. Shift Interlock – Shift Interlock Circuit (Except Hybrid)
71. Shift Interlock – Shift Interlock Circuit (Hybrid)
72. Sound Systems – Bass Speaker Circuit (Except Hybrid)
73. Sound Systems – Bass Speaker Circuit (Hybrid)
74. Sound Systems – CD Player (Except Hybrid)
75. Sound Systems – CD Player (Hybrid)
76. Sound Systems – Music Link Circuit
77. Sound Systems – Radio Circuit (2 Door_ EX, SI)
78. Sound Systems – Radio Circuit (Hybrid)
79. Sound Systems – Radio Circuit (SI 4 Door)
80. Sound Systems – Radio Circuit (USA DX)
81. Sound Systems – Radio Circuit (USA LX 2 Door amp EX 4 Door W_Navigation)
82. Sound Systems – Radio Circuit (USA LX 2 Door amp EX 4 Door W_O Navigation)
83. Sound Systems – Radio Circuit (USA LX 4 Door amp Canada DX, DX-G amp LX)
84. Sound Systems – XM Receiver Circuit
85. Starting_Charging – Charging Circuit
86. Starting_Charging – Remote Starting Circuit (Canada)
87. Starting_Charging – Starting Circuit (A_T Except Hybrid)
88. Starting_Charging – Starting Circuit (A_T Hybrid)
89. Starting_Charging – Starting Circuit (M_T)
90. Supplemental Restraints – Except Hybrid
91. Supplemental Restraints – Hybrid
92. Transmissions – A_T Circuit (Except Hybrid)
93. Transmissions – A_T Circuit (Hybrid)
94. Warning Systems – Except Hybrid
95. Warning Systems – Hybrid
96. Wiper_Washer – Front Wiper_Washer Circuit (Except Hybrid)
97. Wiper_Washer – Front Wiper_Washer Circuit (Hybrid)
98. A_T Gear Position Indicator
99. A_T Park Position
100. A_T Reverse Position
101. ABS_TCS Circuit Diagram
102. Additional Information
103. Air Bag Systems
104. Alternator
105. Audio System Circuit Diagram
106. Automatic Dimming Inside Mirror
107. B-CAN Communication Line
108. Back-Up Lights
109. Blower Motor
110. Brake Pedal Position
111. Brake System Indicator Circuit Diagram
112. Charging System Circuit Diagram
113. Cigarette Lighter
114. Circuit Diagram
115. Compressor HVAC
116. Computers and Control Systems
117. Control Assembly, HVAC
118. Cruise Control Circuit Diagram
119. Daytime Running Lamp
120. Diagram 10-0
121. Diagram 10-1
122. Diagram 10-10
123. Diagram 10-11a
124. Diagram 10-11b
125. Diagram 10-12
126. Diagram 10-13
127. Diagram 10-14
128. Diagram 10-15
129. Diagram 10-16
130. Diagram 10-17
131. Diagram 10-2
132. Diagram 10-3
133. Diagram 10-4
134. Diagram 10-5
135. Diagram 10-6
136. Diagram 10-7
137. Diagram 10-8
138. Diagram 10-9
139. Diagram 24-0
140. Diagram 24-1
141. Diagram 24-10
142. Diagram 24-11
143. Diagram 24-12
144. Diagram 24-13
145. Diagram 24-14
146. Diagram 24-15
147. Diagram 24-2
148. Diagram 24-3
149. Diagram 24-4
150. Diagram 24-5
151. Diagram 24-6
152. Diagram 24-7
153. Diagram 24-8
154. Diagram 24-9
155. Diagram Set 10 (Power Distribution)
156. Diagram Set 110 (Exterior lights)

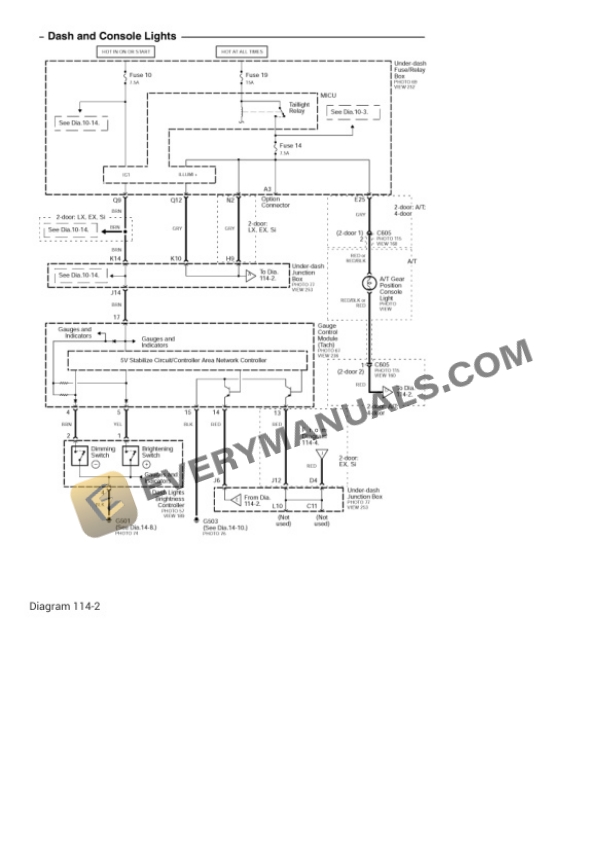

157. Diagram Set 114 (Interior Lights)
158. Diagram Set 115 (Entry Light Control System)
159. Diagram Set 120 (Power Windows)
160. Diagram Set 122 (Moonroof)
161. Diagram Set 130 (Power Door Locks_Keyless Entry_Security System)
162. Diagram Set 132 (Immobilizer System)
163. Diagram Set 138 (Interlock System (A_T))

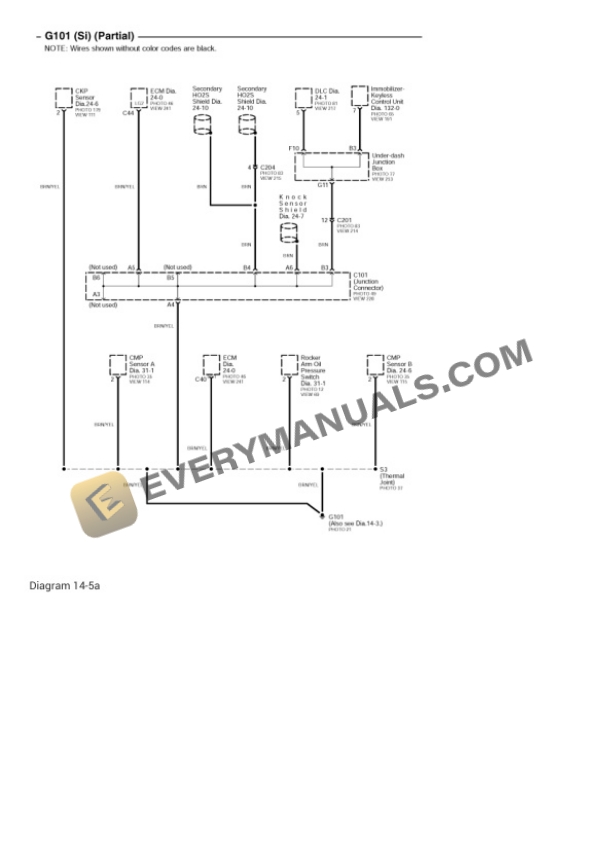

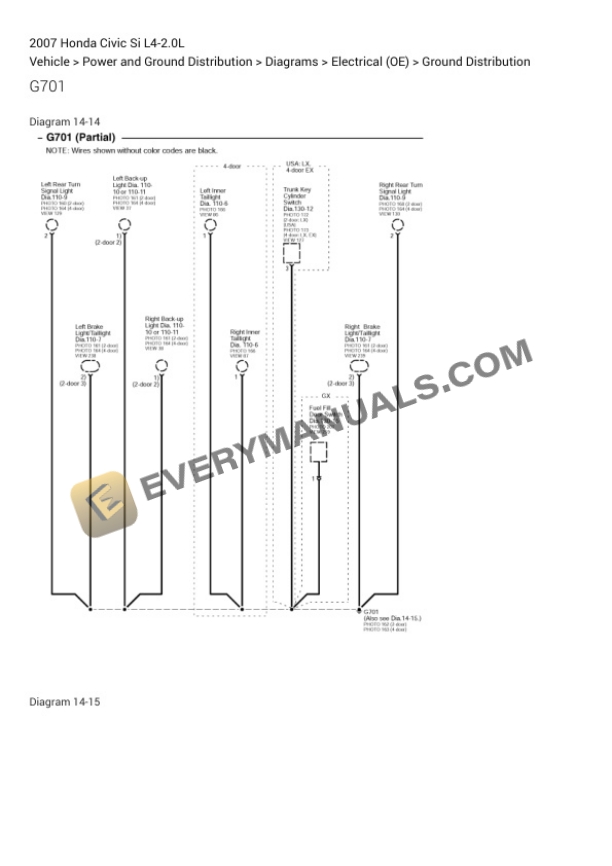

164. Diagram Set 14 (Ground Distribution)
165. Diagram Set 141 (Power Mirrors)
166. Diagram Set 142 (Automatic Dimming Inside Mirror)
167. Diagram Set 148 (Power Mirror Heaters)
168. Diagram Set 15 (Splice and Junction Connector Details)
169. Diagram Set 150 (Audio System)
170. Diagram Set 155 (Accessory Power Sockets)
171. Diagram Set 156 (Navigation System)
172. Diagram Set 20 (Ignition System)
173. Diagram Set 21 (Starting System)
174. Diagram Set 22 (Charging System)
175. Diagram Set 24 (Fuel and Emissions (Si))
176. Diagram Set 31 (VTEC_VTC Control System)
177. Diagram Set 34 (Cruise Control)
178. Diagram Set 38 (Reverse Lockout System)
179. Diagram Set 39 (A_T Controls)
180. Diagram Set 40 (Horn)
181. Diagram Set 44 (ABS (Anti-Lock Brake System))
182. Diagram Set 45 (EPS (Electrical Power Steering)
183. Diagram Set 47 (SRS (Supplemental Restraint System))
184. Diagram Set 50 (Multiplex Integrated Control System)
185. Diagram Set 60 (HVAC)
186. Diagram Set 63 (Fans)
187. Diagram Set 64 (Rear Window Defogger)
188. Diagram Set 73 (Reminder Systems and Low Oil Pressure Indicator)
189. Diagram Set 80 (Gauges and Indicator)
190. Diagram Set 84 (Safety Indicator)
191. Diagram Set 89 (A_T Gear Position Indicator)
192. Diagram Set 91 (Wiper_Washer)
193. Dome Lamp
194. ECM_PCM Circuit Diagrams
195. ECM_PCM Electrical Connections
196. ECM_PCM Relays Control
197. Electrical Power Steering (EPS) Circuit Diagram
198. Emission Control Systems
199. Engine Control Module
200. Entry Lights Control System Control Diagram
201. Exterior Lights Circuit Diagram
202. F-CAN Communication Line (High)
203. F-CAN Communication Line (Low)
204. Fan Controls Circuit Diagram
205. Fog_Driving Lamp
206. Fuel Delivery and Air Induction
207. Fuel Gauge
208. Fuel Pump
209. Fuel Tank Unit
210. Fuse Block
211. Gauges Circuit Diagram
212. Ground For ECM Sensors (Si)
213. Ground For ECM_PCM Sensors (DX, DX-G, LX, EX, Si)
214. Ground For Heater Control Sensors
215. Ground-to-Components Index
216. Headlamp
