Honda Clarity Fuel Cell 2019 Electrical Diagrams ELE-Electric Engine Hydrogen Fuel Cell

Date: 2019
Type Of Manual: Electrical Diagrams
Engine: ELE-Electric Engine Hydrogen Fuel Cell
Number of Pages: 453
Size: 23.1MB
Format: PDF

Category: Honda Wiring Diagrams PDF

Description

Model List:
- Clarity Fuel Cell

1. Air Conditioning – Automatic A_C Circuit
2. Anti-Lock Brakes – Anti-Lock Brakes Circuit
3. Anti-Lock Brakes – Electric Servo Brake System Circuit
4. Anti-Theft
5. Body Computer
6. Computer Data Lines
7. Cooling Fans
8. Cruise Control
9. Defogger
10. Door Locks
11. Electric Parking Brake Circuit
12. Electronic Power Steering
13. Engine Controls – Engine Controls Circuit
14. Exterior Lights – Backup Lamps Circuit
15. Exterior Lights – Exterior Lamps Circuit
16. Ground Distribution
17. Headlights
18. Instrument Cluster
19. Interior Lights – Courtesy Lamps Circuit
20. Interior Lights – Entry Light Timer Circuit
21. Interior Lights – Instrument Illumination Circuit
22. Memory Systems
23. Mirrors – Automatic Day_Night Mirror Circuit
24. Mirrors – Power Mirrors Circuit
25. Navigation – Home Link Remote Control Circuit
26. Navigation – Lane Watch Camera Circuit
27. Navigation – Multipurpose Camera Circuit
28. Navigation – Navigation Circuit
29. Navigation – Rear Camera Circuit
30. Navigation – Telematics Circuit
31. Power Distribution
32. Power Windows
33. Safety Systems – Virtual Engine Sound System
34. Seats – Front Heated Seats Circuit
35. Seats – Passenger Power Seat Circuit
36. Shift Interlock – Shift Interlock Circuit
37. Sound Systems – W_ Navigation
38. Sound Systems – W_O Navigation
39. Supplemental Restraints
40. Transmissions
41. Trunk, Tailgate, Fuel Doors – Fuel Door Release Circuit
42. Trunk, Tailgate, Fuel Doors – Trunk Release Circuit
43. Warning Systems
44. Wiper_Washer
45. Volt Battery Terminal Fuse Box (KA ZC4)
46. Accessory Power Sockets (KA ZC4)
47. Accessory Power Sockets Circuit Diagram
48. Acoustic Vehicle Alerting System (KA ZC4)
49. Acoustic Vehicle Alerting System Circuit Diagram
50. Adaptive Cruise Control (ACC) (KA ZC4)
51. Adaptive Cruise Control (ACC) Circuit Diagram
52. ANC_Active Sound Control System (KA ZC4)
53. Audio and Visual System Circuit Diagram_001
54. Audio and Visual System Circuit Diagram_002
55. Automatic Dimming Inside Mirror (KA ZC4)
56. Automatic Dimming Mirrors Circuit Diagram
57. Auxiliary Under-Dash Fuse Box (KA ZC4)
58. B-Can Communication Line (KA ZC4)
59. Back-up Lights (KA ZC4)
60. Battery ECU (KA ZC4)
61. Brake Lights (KA ZC4)
62. Cable Reel (KA ZC4)
63. Climate Control (KA ZC4)
64. Climate Control System Circuit Diagram
65. Collision Mitigation Brake System (CMBS) (KA ZC4)_001
66. Collision Mitigation Brake System (CMBS) (KA ZC4)_002
67. Collision Mitigation Braking System (CMBS) Circuit Diagram_001
68. Collision Mitigation Braking System (CMBS) Circuit Diagram_002
69. Communication Systems Circuit Diagram
70. Dashlights (KA ZC4)
71. DLC (KA ZC4)_001
72. DLC (KA ZC4)_002
73. DPMS (KA ZC4)
74. Driving Position Memory System (DPMS) Circuit Diagram
75. Electric Parking Brake (KA ZC4)
76. Electric Parking Brake System Circuit Diagram
77. Electric Powertrain Circuit Diagram
78. Electric Servo Brake System (KA ZC4)
79. Electric Servo Brake System Circuit Diagram
80. Entry Light Control System (KA ZC4)
81. Entry Lights Control System Circuit Diagram
82. EPS (KA ZC4)
83. EPS Circuit Diagram
84. Exterior Lights Circuit Diagram

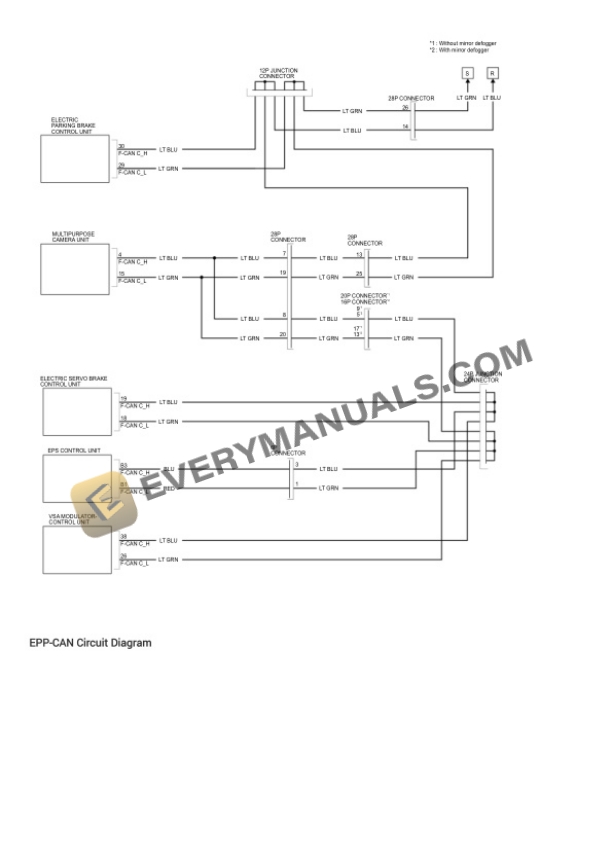

85. F-Can Communication Line (KA ZC4)
86. Fuel Cell System (KA ZC4)
87. Fuel Cell System Circuit Diagram
88. Fuse to Components Index
89. Gauges (KA ZC4)
90. Gauges Circuit Diagram
91. Head Up Display (KA ZC4)
92. Head Up Display Circuit Diagram
93. Headlights (KA ZC4)
94. HFL System (HandsFreeLink System) (KA ZC4)
95. Homelink Remote Control System (KA ZC4)
96. HomeLink Remote Control System Circuit Diagram
97. Honda Remote APP System (KA ZC4)
98. Honda Remote App System Circuit Diagram
99. Horns (KA ZC4)
100. Horns Circuit Diagram
101. Interior Lights Circuit Diagram
102. Junction Connectors (KA ZC4)
103. K-Line Communication Line (KA ZC4)

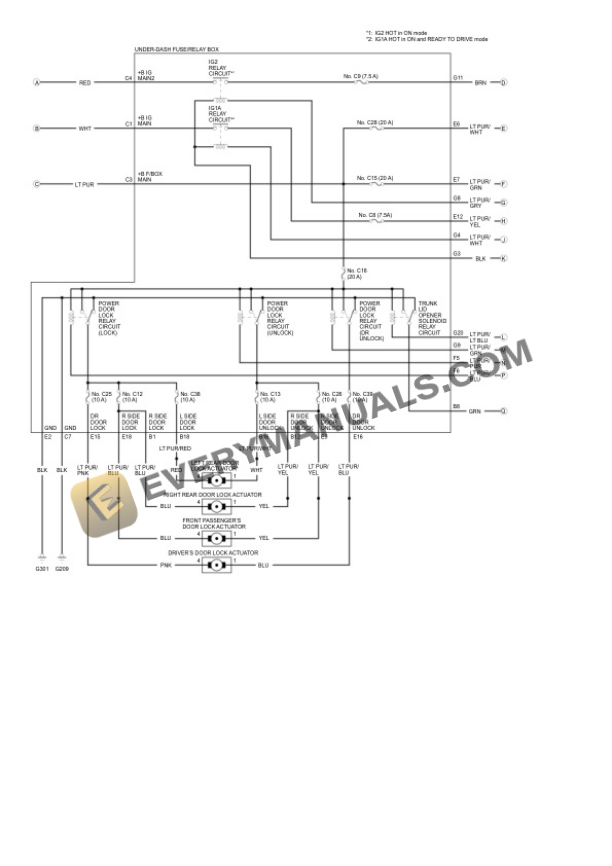

104. Keyless Access System (KA ZC4)
105. Keyless Access System Circuit Diagram
106. Keyless_Power Door Locks_Security System (KA ZC4)_001
107. Keyless_Power Door Locks_Security System (KA ZC4)_002
108. Keyless_Power Door Locks_Security System (KA ZC4)_003
109. Keyless_Power Door Locks_Security System Circuit Diagram_001
110. Keyless_Power Door Locks_Security System Circuit Diagram_002
111. Keyless_Power Door Locks_Security System Circuit Diagram_003
112. Lane Keeping Assist System (LKAS) (KA ZC4)
113. Lane Keeping Assist System (LKAS) Circuit Diagram
114. Lanewatch (KA ZC4)
115. LaneWatch Circuit Diagram
116. License Plate Lights, Parking Lights, Taillights and Turn Signal_Hazard Warning Lights (KA ZC4)
117. Management ECU (KA ZC4)_001
118. Management ECU (KA ZC4)_002
119. Navigation System (KA ZC4)
120. Passengers Power Seat (KA ZC4)
121. Power Mirrors (KA ZC4)
122. Power Mirrors Circuit Diagram
123. Power Seats Circuit Diagram
124. Power Windows (KA ZC4)
125. Power Windows Circuit Diagram
126. Power, Grounds and Diagnostics (KA ZC4)
127. Rear Fuse Holder (KA ZC4)
128. Rear Window Defogger (KA ZC4)
129. Rear Window Defogger Circuit Diagram
130. Reminder Systems Circuit Diagram
131. Reminder Systems, Safety Indicator (KA ZC4)
132. Road Departure Mitigation (KA ZC4)
133. Road Departure Mitigation Circuit Diagram
134. S-Net Communication Line (KA ZC4)
135. Safety Indicator System Circuit Diagram
136. Seat Heaters (KA ZC4)
137. Seat Heaters Circuit Diagram
138. SRS (KA ZC4)
139. SRS Circuit Diagram
140. Telematics (KA ZC4)
141. Trunk Lid Circuit Diagram
142. Trunk Lid Opener (KA ZC4)
143. Trunk Lights, Console Lights, Footwell Lights, Glove Box Lights, Individual Map Lights and Vanity Mirror Lights (KA ZC4)
144. Turn Signal_Hazard Warning Lights Circuit Diagram
145. Under-Dash Fuse Holder (KA ZC4)
146. Under-Dash Fuse_Relay Box (KA ZC4)
147. Under-Dash Fuse_Relay Box – Back Side (KA ZC4)
148. Under-Dash Subfuse Box A (KA ZC4)
149. Under-Dash Subfuse Box B (KA ZC4)
150. Under-Hood Fuse_Relay Box (KA ZC4)
151. VSA System Circuit Diagram
152. VSA_TPMS (Tire Pressure Monitoring System) (KA ZC4)_001
153. VSA_TPMS (Tire Pressure Monitoring System) (KA ZC4)_002
154. Wiper_Washer (Windshield) (KA ZC4)
155. Wipers_Washers Circuit Diagram
