Manitou 200 ATJ RC ST5 S1, 200 ATJ ST5 S1 Parts Manual 647845
$30
- Type Of Manual: Parts Manual
- Manual ID: 647845
- Format: PDF
- Size: 45.0MB
- Number of Pages: 219
Description
-
Model List:
- 200 ATJ RC ST5 S1
- 200 ATJ ST5 S1
- 1. EXPLANATION OF SYMBOLS
- 1.1. EXPLANATION OF SYMBOLS
- 2. GENERAL INSTRUCTIONS AND SAFETY NOTICE
- 2.1. _ADHESIVE SIGNS
- 2.1.1. A1111 ADHESIVE (647845)
- 2.1.2. A1114 ADHESIVE (647845)
- 3. LUBRICANTS
- 3.1. A4 HYDRAULIC OIL INDUSTRY (ISO_VG32)
- 3.2. A7 HUILE MOTEUR (10W40_API_CJ4)
- 3.3. A14 COOLING LIQUID (SMB_35)
- 3.4. A17 GREASE BLACK MULTIPURPOSE (GRAISSE_NOIRE)
- 3.5. A25 MANITOU MULTIPURPOSE EXTREME PRESSURE LUBRICANT (GRAISSE_EXTRÊME_PRESSION)
- 4. FILTERS
- 4.1. A407 FILTERS AND BELTS (647845)
- 5. FRAME BODY
- 5.1. A1019 OPTION OSCILLATING AXLE (647845)
- 5.2. A1020 FRAME (647845)
- 5.3. A1021 TURRET COUNTERWEIGHT (647845)
- 5.4. A1201 BODY (647845)
- 5.5. A1202 COMPLETE BONNET (Details) (647845)
- 5.6. A1204 COMPLETE BONNET (Details) (647845)
- 6. ENGINE
- 6.1. LW297 ENGINE ADAPTATION (647845)
- 6.2. ENGINE_(52636693MO)
- 6.2.1. LW312 STARTER MOTOR (52636693MO)

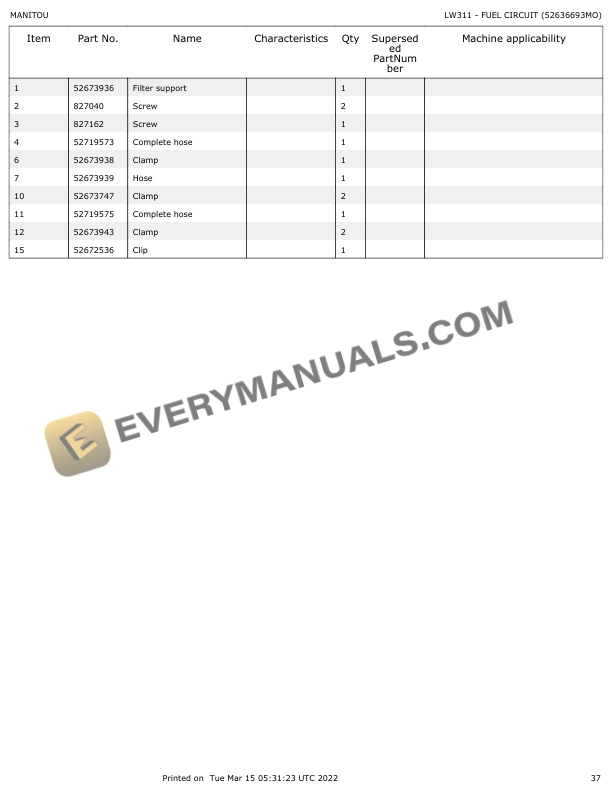

- 6.2.2. LW311 FUEL CIRCUIT (52636693MO)
- 6.2.3. LW315 ELECTRICITY (Details) (52636693MO)
- 6.2.4. LW313 ALTERNATOR (52636693MO)
- 6.2.5. LW310 INJECTION PUMP (52636693MO)
- 6.2.6. LW308 COOLING CIRCUIT (52636693MO)
- 6.2.7. LW305 TIMING GEAR AND CAMSHAFT (52636693MO)
- 6.2.8. LW302 INTAKE MANIFOLD (52636693MO)
- 6.2.9. LW309 INJECTION PUMP (52636693MO)
- 6.2.10. LW304 FILTER (52636693MO)
- 6.2.11. LW298 CYLINDER BLOCK (52636693MO)
- 6.2.12. LW307 OIL FILTER, LUBRICATING OIL PUMP (52636693MO)
- 6.2.13. LW301 CYLINDER HEAD ROCKER LEVER (52636693MO)
- 6.2.14. LW299 TIMING GEAR HOUSING (52636693MO)
- 6.2.15. LW303 EXHAUST MANIFOLD (52636693MO)
- 6.2.16. LW306 PISTONS, CONNECTING RODS AND CRANKSHAFT (52636693MO)
- 6.2.17. LW300 OIL SUMP FLYWHEEL HOUSING (52636693MO)
- 6.3. _COMPLETE
- 6.3.1. A2133 ENGINE TRANSMISSION ADAPTATION (647845)
- 6.4. _ELECTRICITY
- 6.5. _INTAKE SYSTEM EXHAUST
- 6.5.1. A2136 ENGINE TRANSMISSION ADAPTATION (647845)
- 6.6. _FUEL SUPPLY SYSTEM INJECTION
- 6.6.1. C519 FUEL CIRCUIT (647845)
- 6.7. _ELECTRICAL SYSTEM
- 6.8. _COOLING SYSTEM

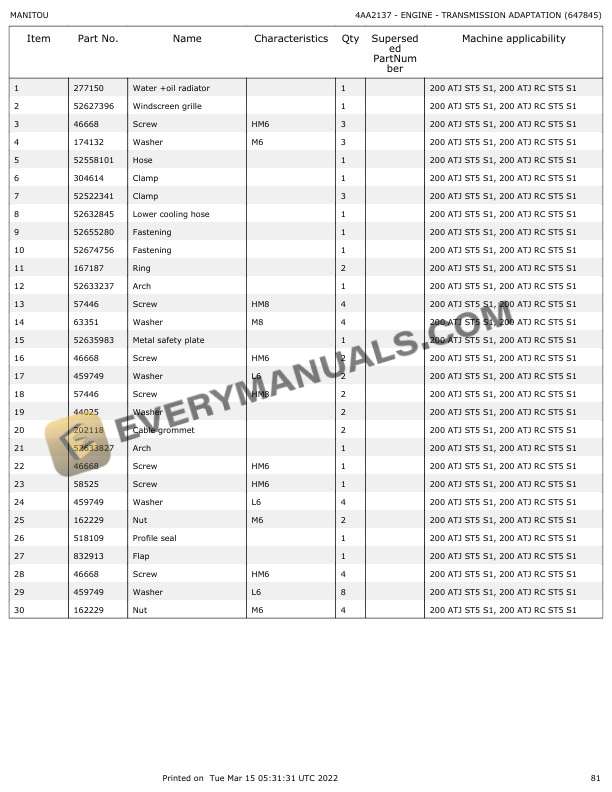

- 6.8.1. A2134 ENGINE TRANSMISSION ADAPTATION (647845)
- 6.8.2. A1441 RADIATOR (Details) (277150MOD)
- 6.8.3. A2137 ENGINE TRANSMISSION ADAPTATION (647845)
- 7. ELECTRICITY
- 7.1. A2123 ELECTRIC CIRCUIT (647845)
- 7.2. B753 ELECTRICITY (Details) (678321MOD)
- 7.3. B2232 ELECTRICITY (Details) (647845)
- 7.4. B2233 ELECTRICITY (Details) (647845)
- 7.5. B2234 ELECTRICITY (DETAILS) (647845)
- 7.6. B2238 HEATER ENGINE BLOCK ADAPTATION (647845)
- 7.7. B2239 ELECTRICITY (Details, option) (647845)
- 7.8. B2240 ELECTRICITY (Details) (647845)
- 7.9. D380 ELECTRICITY (Engine Transmission) (647845)
- 8. HYDRAULIC
- 8.1. _CIRCUIT
- 8.1.1. A477 HYDRAULIC (Details) (647845)
- 8.1.2. A478 HYDRAULIC (Details) (647845)
- 8.1.3. A479 HYDRAULIC (Details) (647845)
- 8.1.4. A1571 HYDRAULIC (Principal circuit) (647845)
- 8.1.5. A1572 HYDRAULIC (Principal circuit) (647845)

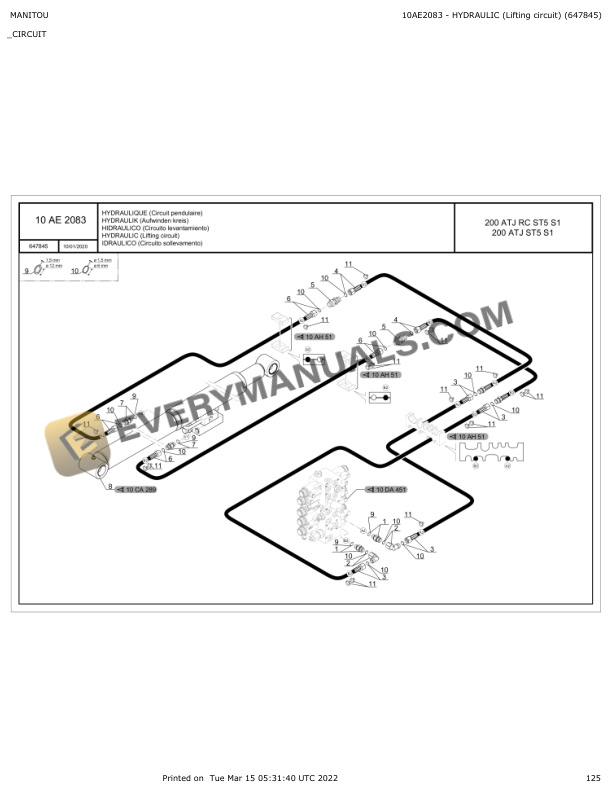

- 8.1.6. E2079 HYDRAULIC (Lifting circuit) (647845)
- 8.1.7. E2080 HYDRAULIC (Lifting circuit) (647845)
- 8.1.8. E2081 HYDRAULIC (Compensation Tilting circuit) (647845)
- 8.1.9. E2082 HYDRAULIC (Telescope circuit) (647845)
- 8.1.10. E2083 HYDRAULIC (Lifting circuit) (647845)
- 8.1.11. F1524 HYDRAULIC (Emergency circuit) (647845)
- 8.1.12. H50 HYDRAULIC (Rotation circuit) (647845)
- 8.1.13. H51 HYDRAULIC (Rotation circuit) (647845)
- 8.1.14. M52 HYDRAULIC (Brake circuitDifferential locking) (647845)
- 8.1.15. A711 HYDRAULIC (Translation circuit) (647845)
- 8.1.16. A712 HYDRAULIC (Translation circuit) (647845)
- 8.1.17. A717 HYDRAULIC (Steering circuit) (647845)
- 8.1.18. A718 HYDRAULIC (Steering circuit) (647845)
- 8.2. _VALVE BANK
- 8.2.1. A451 VALVE BANK (Function block) (685085MOD)
- 8.2.2. A684 VALVE BANK (52626018MO)
- 8.3. _TANK
- 8.4. _RAM
- 8.4.1. A287 HYDRAULIC (Lifting cylinder) (679603MOD)
- 8.4.2. A288 HYDRAULIC (Lifting cylinder) (679606MOD)
- 8.4.3. A289 HYDRAULIC (Pendular arm cylinder) (679609MOD)
- 8.4.4. B60 HYDRAULIC (Compensation cylinder) (679607MOD)
- 8.4.5. C164 HYDRAULIC (Telescope cylinder) (830988MOD)
- 8.4.6. D131 HYDRAULIC (Tilting cylinder) (679608MOD)
- 8.4.7. Z136 HYDRAULIC (Rotation cylinder) (599762MOD)
- 9. AXLE ASSEMBLY AXLE
- 9.1. _FRONT
- 9.1.1. AXLE FRONT_52502276MO
- 9.1.1.1. AX2202 FRONT AXLE CASING (52502276MO)
- 9.1.1.2. AX2203 FRONT AXLE DIFFERENTIAL (52502276MO)
- 9.1.1.3. AX2204 FRONT AXLE REDUCTION GEAR (52502276MO)

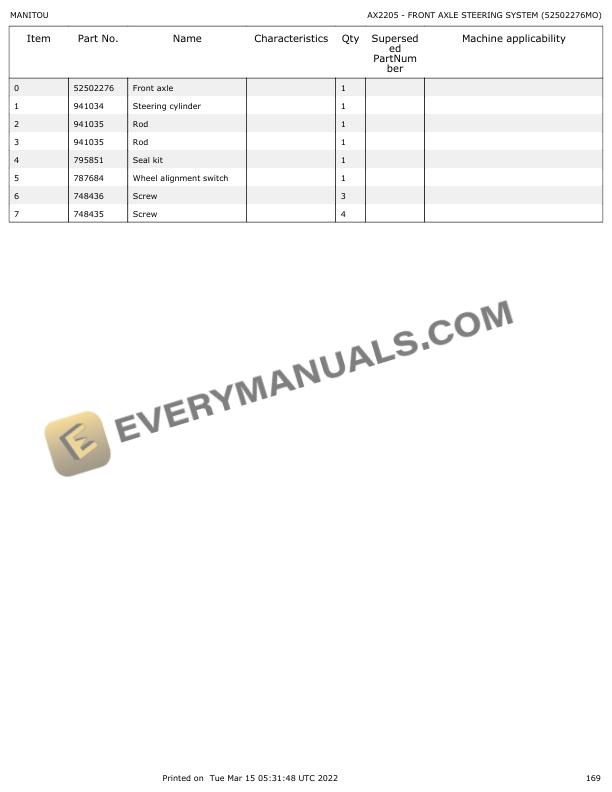

- 9.1.1.4. AX2205 FRONT AXLE STEERING SYSTEM (52502276MO)
- 9.1.1.5. AX2206 FRONT AXLE BRACKET (52502276MO)
- 9.2. _REAR
- 9.2.1. REAR AXLE_683363MOD
- 9.2.1.2. AX1898 REAR AXLE CASING (683363MOD)
- 9.2.1.3. AX1899 REAR AXLE REDUCTION GEAR (683363MOD)
- 9.2.1.4. AX1900 REAR AXLE DIFFERENTIAL (683363MOD)
- 9.2.1.5. AX1901 OIL BATH DISC BRAKE REAR AXLE (683363MOD)
- 9.2.1.6. AX1902 REAR AXLE STEERING SYSTEM (683363MOD)
- 9.3. _WHEELS
- 9.3.1. A568 WHEELS (647845)
- 10. FRONT ARMS
- 10.1. A1169 JIB (647845)
- 10.2. A1170 JIB (647845)
- 10.3. A1171 TELESCOPIC JIB (647845)
- 10.4. A1172 JIB (647845)
- 10.5. A1173 PERSONNEL BASKET (647845)
- 10.6. A1174 PERSONNEL BASKET (647845)
- 11. TRANSMISSION
- 11.1. _ENGINE
- 11.1.2. BC230 HYDROSTATIC MOTOR (683954MOD)
- 11.1.3. DE26 ROTATION MOTOR (52562502MOD)
- 11.2. _PUMP
- 11.2.2. BC163 VARIABLE DISPLACEMENT PUMP (683966MOD)
