Manitou MLT 626, MLT 626 UK, MLT 626 Turbo, MLT 626 Turbo UK Parts Manual 47904

Type Of Manual: Parts Manual
Manual ID: 47904
Format: PDF
Size: 6.2MB
Number of Pages: 279

Category: Manitou Parts Manual PDF

Description

Model List:
- MLT 626
- MLT 626 UK
- MLT 626 Turbo
- MLT 626 Turbo UK

1. GENERAL INSTRUCTIONS AND SAFETY NOTICE
1.1. _ADHESIVE SIGNS
1.1.1. (47904)
1.1.2. (47904)
1.1.3. (47904)
2. OPTIONS ACCESSORIES
2.0.1. (47904)
2.1. _TANK
2.1.1. (47904)
2.1.2. (47904)
2.1.3. (47904)
3. ELECTRICITY

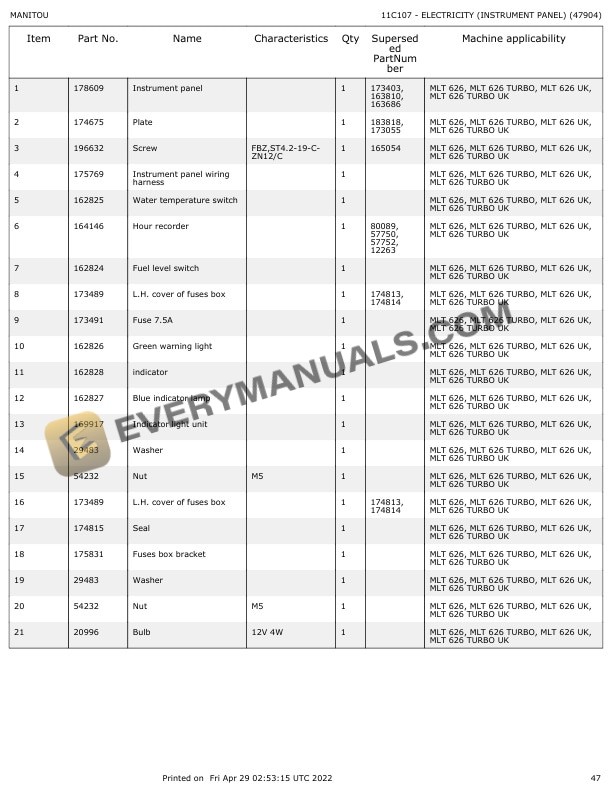

3.1. ELECTRICITY (INSTRUMENT PANEL) (47904)
3.2. (47904)
3.3. (47904)
3.4. _CIRCUIT HARNESS
3.4.1. (47904)
3.4.2. (47904)
3.4.3. (47904)
3.5. _LIGHTING SIGNALING
3.5.1. (47904)
3.5.2. (47904)
3.5.3. (47904)
3.6. _SWITCH
3.6.1. (47904)
3.7. _REAR PLUG
3.7.1. (47904)
4. AXLE ASSEMBLY AXLE
4.1. _REAR
4.1.1. (47904)
4.1.2. (47904)
4.1.3. (47904)
4.1.4. BN1 (47904)
4.1.5. BN3 (47904)
4.2. _FRONT
4.2.1. (47904)
4.2.2. (47904)
4.2.3. BN2 (47904)

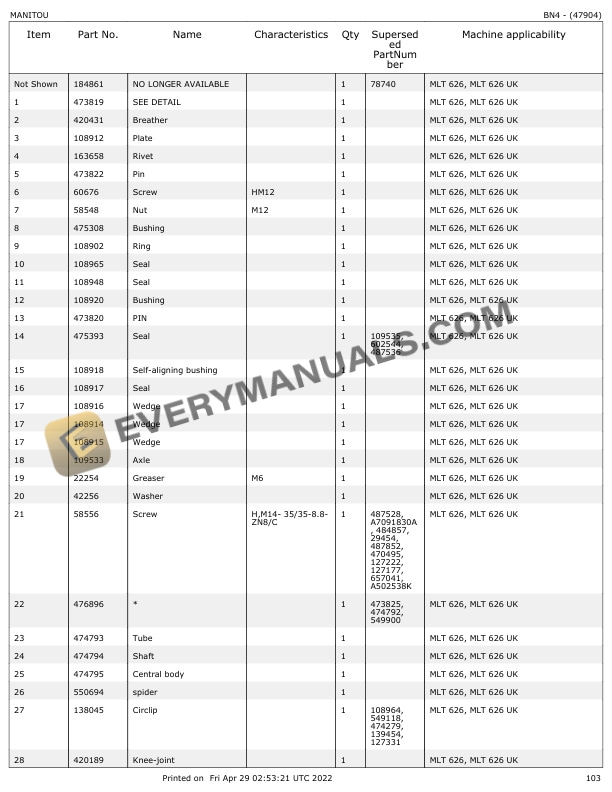

4.2.4. BN4 (47904)
4.2.5. BN6 (47904)
4.3. _WHEELS
4.3.1. (47904)
5. HYDRAULIC
5.1. _CIRCUIT
5.1.1. __ATTACHMENT
5.1.1.1. (47904)
5.1.2. __COMPENSATION
5.1.2.1. (47904)
5.1.3. __STEERING
5.1.3.1. (47904)
5.1.4. __LIFTING
5.1.4.1. (47904)
5.1.5. __TILTING
5.1.5.1. (47904)
5.1.5.2. (47904)
5.1.6. __MAIN
5.1.6.1. (47904)
5.1.6.2. (47904)
5.1.7. __TELESCOPING
5.1.7.1. (47904)
5.1.7.2. (47904)
5.1.7.3. (47904)
5.2. _DETAIL
5.2.1. (47904)
5.2.2. (47904)
5.2.3. (47904)
5.2.4. (47904)
5.2.5. (47904)
5.3. _VALVE BANK
5.3.1. (47904)
5.3.2. (47904)
5.3.3. (47904)
5.3.4. (47904)
5.4. _PUMP
5.4.1. (47904)
5.4.2. (47904)
5.5. _TANK
5.5.1. (47904)
5.5.2. (47904)
5.6. _RAM
5.6.1. __COMPENSATION
5.6.1.1. (47904)
5.6.1.2. (47904)
5.6.2. __STEERING
5.6.2.1. (47904)
5.6.2.2. (47904)
5.6.3. __LIFTING
5.6.3.1. (47904)
5.6.4. __TILTING
5.6.4.1. (47904)
5.6.4.2. (47904)
5.6.5. __TELESCOPING
5.6.5.1. (47904)
6. TELESCOPIC BOOM
6.0.1. (47904)

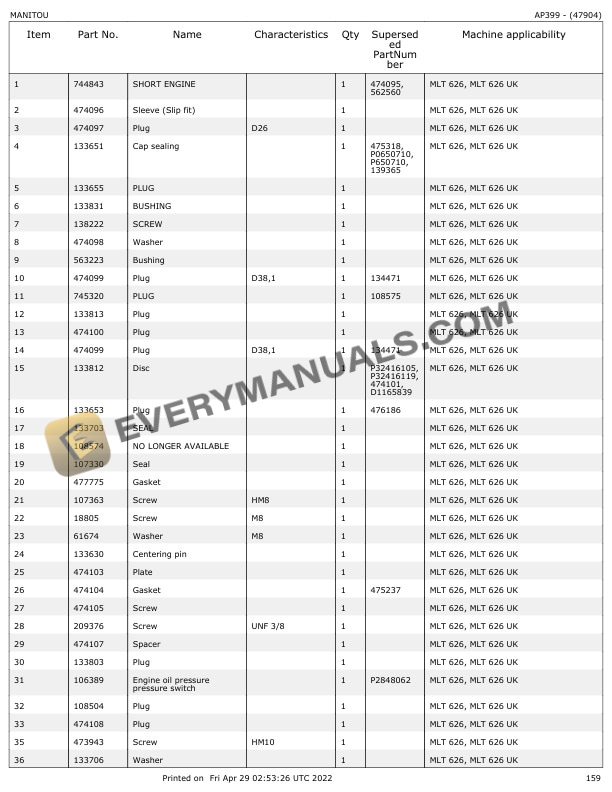

6.0.2. AP399 (47904)
6.0.3. AP400 (47904)
6.0.4. AP401 CYLINDER HEAD (47904)
6.0.5. AP402 (47904)
6.0.6. AP403 (47904)
6.0.7. AP405 FLYWHEEL HOUSING (47904)
6.0.8. AP406 STATER MOTOR (47904)
6.0.9. AP407 OIL SUMP (47904)
6.0.10. AP408 (47904)
6.0.11. AP410 CRANKSHAFT PULLEY (47904)
6.0.12. AP412 (47904)
6.0.13. AP415 (47904)
6.0.14. BP21 (47904)
6.1. _COMPLETE
6.1.1. AP399 (47904)
6.2. _TIMING GEAR LUBRICATION
6.2.1. AP403 (47904)
6.2.2. AP404 LUBRICATING OIL PUMP AND DELIVERY VALVE (47904)
6.3. _ELECTRICITY
6.3.1. (47904)
6.4. _FILTERSBELT
6.4.1. (47904)
6.4.2. (47904)
6.4.3. (47904)
6.4.4. (47904)
6.4.5. AP409 (47904)
6.4.6. AP413 (47904)
6.4.7. BP21 (47904)
6.5. _INTAKE SYSTEM EXHAUST
6.5.1. (47904)
6.5.2. AP414 INTAKE MANIFOLD EXHAUST MANIFOLD (47904)
6.6. _FUEL SUPPLY SYSTEM
6.6.1. (47904)
6.6.2. AP439 INJECTION PUMP (DETAILS) (47904)
6.7. _ELECTRICAL SYSTEM
6.7.1. (47904)
6.7.2. AP406 STATER MOTOR (47904)
6.7.3. AP413 (47904)
6.7.4. AP61 D (47904)
6.8. _COOLING SYSTEM
6.8.1. (47904)
6.8.2. AP411 (47904)
6.8.3. AP412 (47904)
7. PEDALS
7.1. _BRAKING CIRCUIT
7.1.1. (47904)

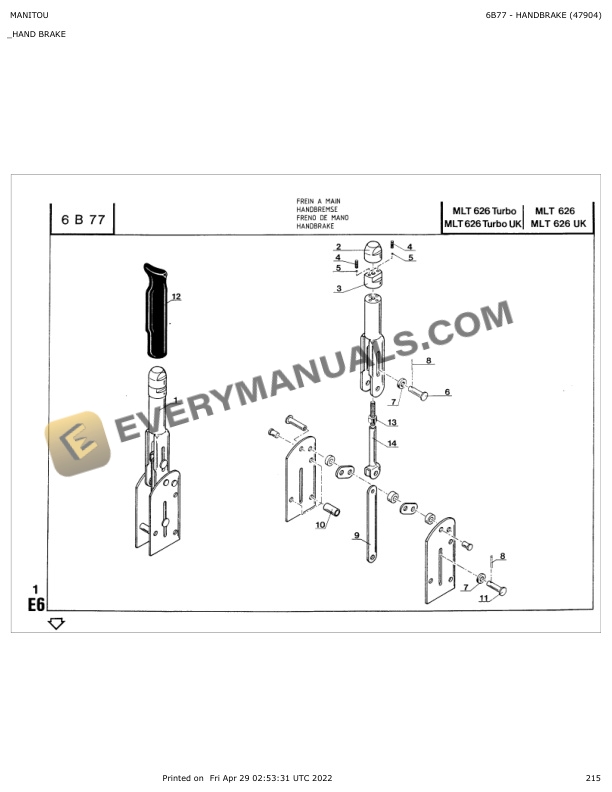

7.2. _HAND BRAKE
7.2.1. HANDBRAKE (47904)
7.3. _LINKAGE
7.3.1. (47904)
7.3.2. (47904)
7.3.3. (47904)
7.3.4. (47904)
7.3.5. (47904)
8. DRIVER CAB
8.1. (47904)
8.2. (47904)
8.3. _CAB
8.3.1. (47904)
8.3.2. (47904)
8.4. _HEATER AIR CONDITIONING
8.4.1. ELECTRICITY (INSTRUMENT PANEL) (47904)
8.4.2. (47904)
8.4.3. (47904)
8.4.4. (47904)
8.5. _ELECTRICITY
8.5.1. ELECTRICITY (INSTRUMENT PANEL) (47904)
8.5.2. (47904)
8.5.3. (47904)
8.5.4. (47904)
8.5.5. (47904)
8.5.6. (47904)
8.5.7. (47904)
8.6. _FITTINGS SOUND PROOFING
8.6.1. (47904)
8.6.2. (47904)
8.7. _DOOR GLASS
8.7.1. (47904)
8.7.2. (47904)
9. TRANSMISSION
9.1. (47904)
9.2. (47904)
9.3. (47904)
9.3.1. (47904)
9.3.2. BN5 (47904)
9.4. _GEAR BOX
9.4.1. BP17 MECHANICAL CONTROL VALVE (47904)
9.4.2. BP20 (47904)
9.4.3. BP21 (47904)
9.4.4. BPA19 (47904)
