Manitou MLT-X 840-140 PS JD ST3A S1, MLT-X 1040-140 PS L JD ST3A S1 Parts Manual 647601
$30
- Type Of Manual: Parts Manual
- Manual ID: 647601
- Format: PDF
- Size: 80.0MB
- Number of Pages: 391
Description
-
Model List:
- MLT-X 840-140 PS JD ST3A S1
- MLT-X 1040-140 PS L JD ST3A S1
- 1. EXPLANATION OF SYMBOLS
- 1.1. EXPLANATION OF SYMBOLS
- 2. GENERAL INSTRUCTIONS AND SAFETY NOTICE
- 2.1. _ADHESIVE SIGNS
- 3. SERVICE PARTS AND FILTERS
- 3.1. FILTERSBELT
- 4. ENGINE
- 4.1. ENGINE_317831MOD
- 4.2. _COMPLETE
- 4.3. _INTAKE SYSTEM EXHAUST
- 4.4. _FUEL SUPPLY SYSTEM
- 4.5. _COOLING SYSTEM
- 4.6. _ELECTRICITY
- 5. TRANSMISSION
- 5.1. GEAR BOX_(294226MOD)
- 5.2. GEAR BOX_(52563808MO)
- 5.3. _PROPSHAFT
- 6. AXLE ASSEMBLY AXLE
- 6.1. AXLE FRONT_(52539823MO)

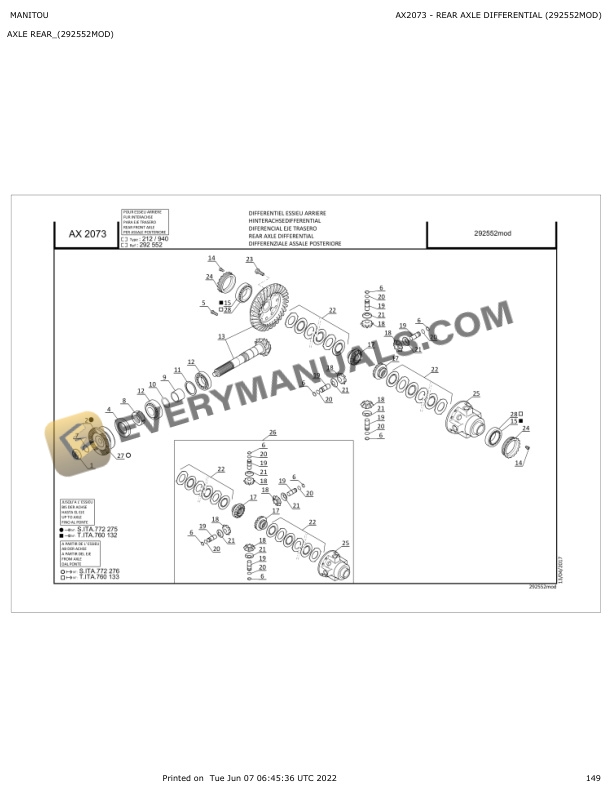

- 6.2. AXLE REAR_(292552MOD)
- 6.3. FRONT AXLE_(52537101MO)
- 6.4. _WHEELS
- 6.5. A91 LUBRIFICATION (647601)
- 6.6. A95 LUBRIFICATION (647601)
- 7. BRAKE
- 7.1. A454 BRAKE CIRCUIT (647601)
- 7.2. A455 BRAKE CIRCUIT (647601)
- 7.3. A456 BRAKE CIRCUIT (647601)
- 7.4. A457 BRAKE CIRCUIT (647601)
- 8. LIFT STRUCTURE
- 8.1. A969 BOOM (647601)
- 8.2. A970 BOOM (Simultaneous telescoping) (647601)
- 9. HYDRAULIC

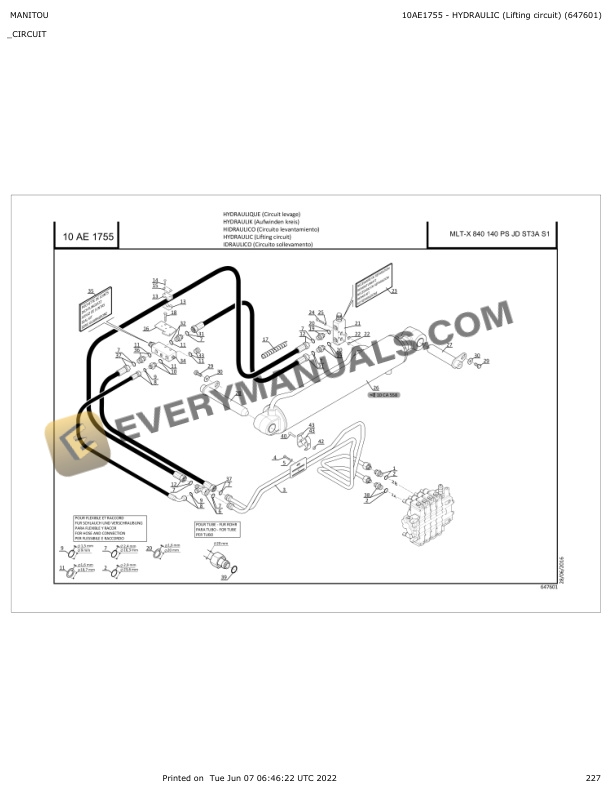

- 9.1. _CIRCUIT
- 9.2. _VALVE BANK
- 9.3. _JOYSTICK
- 9.4. _RAM
- 10. ELECTRICITY
- 10.1. _CIRCUIT HARNESS

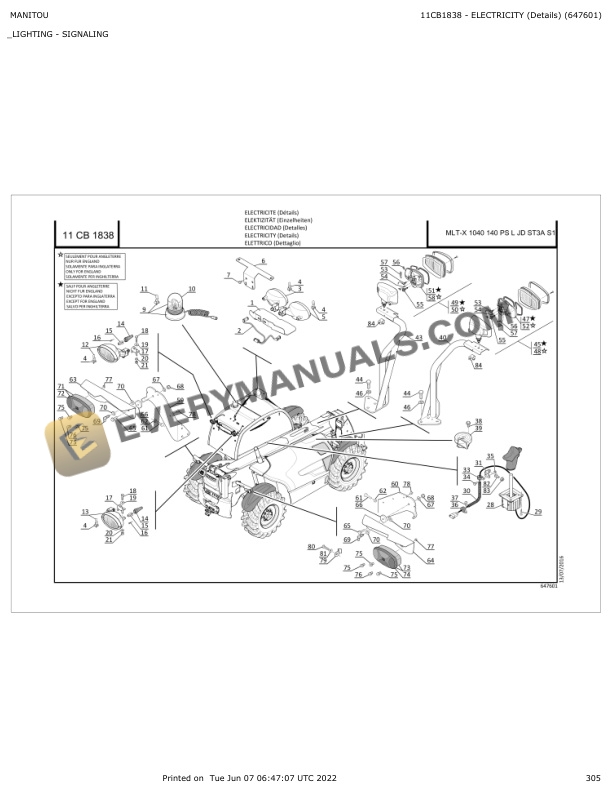

- 10.2. _LIGHTING SIGNALING
- 10.3. _SELECTOR MANIPULATOR
- 10.4. _SAFETY SYSTEM
- 11. OPERATOR STATION
- 11.1. CAB_52535287MO
- 11.2. _CAB
- 11.3. _HEATER AIR CONDITIONING
- 11.4. _ELECTRICITY
- 12. FRAME BODY
- 12.1. A859 FRAME COUNTERWEIGHT (647601)
- 12.2. A860 FRAME COUNTERWEIGHT (647601)
- 12.3. A948 BODY (647601)
- 12.4. A951 BODY (647601)
- 12.5. A952 BODY (647601)
- 12.6. A954 BODY (647601)
- 12.7. A1005 BODY (647601)
- 12.8. A956 BODY (647601)
- 13. ADDITIONAL EQUIPMENT
- 13.1. C431 ELECTRICITY (Car radio) (647601)
- 14. ATTACHMENTS
- 15. DIAGNOSTIC TOOL AND SOFTWARE
