Manitou MT 1135 100D ST5 S1, MT 1335 100D ST5 S1 Parts Manual 647761

Type Of Manual: Parts Manual
Manual ID: 647761
Format: PDF
Size: 59.1MB
Number of Pages: 319

Category: Manitou Parts Manual PDF

Description

Model List:
- MT 1135 100D ST5 S1
- MT 1335 100D ST5 S1

1. EXPLANATION OF SYMBOLS
1.1. EXPLANATION OF SYMBOLS
2. GENERAL INSTRUCTIONS AND SAFETY NOTICE
2.1. ADHESIVE SIGNS
2.1.1. A1158 ADHESIVE (647761)
2.1.2. A1157 ADHESIVE (647761)
3. SERVICE PARTS AND FILTERS
3.1. LUBRICANTS
3.1.1. A3 HYDRAULIC BLUE OIL (VG46HV)
3.1.2. A7 HUILE MOTEUR (10W40_API_CJ4)
3.1.3. A9 BRAKE FLUIDS LHM (LHM)
3.1.4. A10 OIL SPECIAL IMMERSED BRAKES
3.1.5. A11 MANUAL GEARBOX OIL (SAE80W90)
3.1.6. A12 AUTOMATIC GEAR BOX OIL (DEXTROM3)
3.1.7. A13 WINDSCREEN WASHER LIQUID (LAVEGLACE)
3.1.8. A14 COOLING LIQUID (SMB_35)
3.1.9. A17 GREASE BLACK MULTIPURPOSE (GRAISSE_NOIRE)
3.1.10. A18 GREASE BLUE MULTIPURPOSE (GRAISSE_BLEUE)
3.1.11. A29 AIR CONDITIONNING OIL (HUILE MINERALE R12)
3.2. FILTERSBELT
3.2.1. A400 FILTERS AND BELTS (647761)
4. ENGINE
4.1. ENGINE_52589570MO
4.1.1. AD443 CYLINDER BLOCK (52589570MO)
4.1.2. AD444 FUEL CIRCUIT (52589570MO)
4.1.3. AD445 LUBRICATING OIL PUMP TIMING GEAR HOUSING (52589570MO)
4.1.4. AD446 INTAKE MANIFOLD (52589570MO)
4.1.5. AD447 OIL SUMP (52589570MO)
4.1.6. AD448 TURBOCHARGER (52589570MO)
4.1.7. AD449 WATER PUMP (52589570MO)
4.1.8. AD450 ALTERNATOR (52589570MO)
4.1.9. AD451 FLYWHEEL HOUSING (52589570MO)
4.1.10. AD452 STARTER MOTOR (52589570MO)
4.1.11. AD453 ROCKER LEVER COVER AND BREATHER (52589570MO)

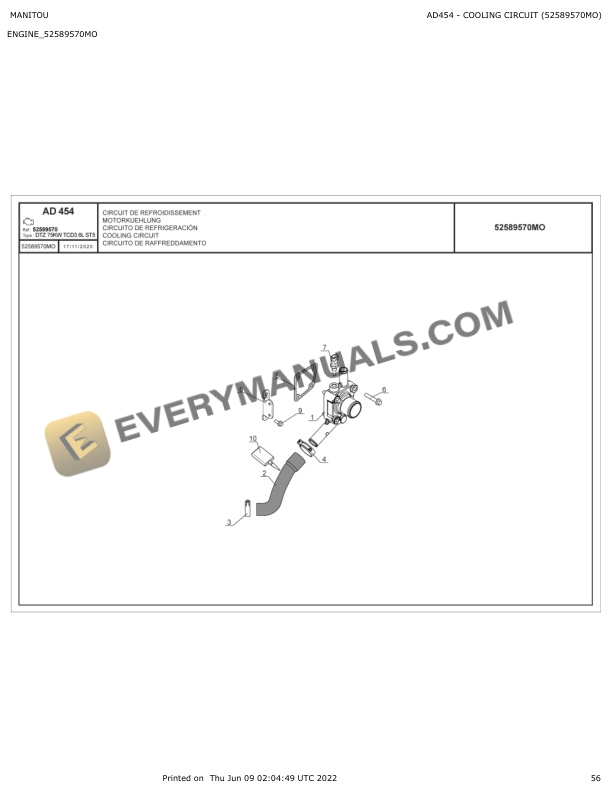

4.1.12. AD454 COOLING CIRCUIT (52589570MO)
4.1.13. AD455 CYLINDER HEAD (52589570MO)
4.1.14. AD456 EXHAUST MANIFOLD (52589570MO)
4.1.15. AD457 ELECTRICITY (Details) (52589570MO)
4.1.16. AD458 EGR AIR COOLER (52589570MO)
4.1.17. AD459 EXHAUST PARTICULATE FILTER (52589570MO)
4.2. _COMPLETE
4.2.1. A2001 ENGINE TRANSMISSION ADAPTATION (647761)
4.2.2. AD478 ENGINE ADAPTATION (647761)
4.3. _INTAKE SYSTEM EXHAUST
4.3.1. A2180 ENGINE ADAPTATION EXHAUST MUFFLER (647761)
4.3.2. A2015 ENGINE TRANSMISSION ADAPTATION (647761)
4.4. _FUEL SUPPLY SYSTEM
4.4.1. A2184 ENGINE TRANSMISSION ADAPTATION (647761)
4.4.2. A2185 RADIATOR (Details) (52589632mo)
4.4.3. C498 FUEL CIRCUIT (647761)
4.5. _COOLING SYSTEM
4.5.1. A2183 ENGINE TRANSMISSION ADAPTATION (647761)
4.5.2. A2182 ENGINE TRANSMISSION ADAPTATION (647761)
4.6. _ELECTRICITY
4.6.1. D375 ELECTRICITY (Engine Transmission) (647761)
4.6.2. D395 ELECTRICITY (Engine Transmission) (647761)
5. TRANSMISSION
5.1. GEAR BOX_52639750MO
5.1.1. AX3058 GEAR BOX (647761)
5.1.2. AX3059 GEAR BOX (Details) (52639750MO)
5.1.3. AX3060 GEAR BOX (Details) (52639750MO)
5.1.4. AX3061 GEAR BOX (Details) (52639750MO)
5.1.5. AX3062 GEAR BOX (Details) (52639750MO)
5.1.6. AX3063 GEAR BOX (Details) (52639750MO)
5.1.7. AX3064 GEAR BOX (Details) (52639750MO)

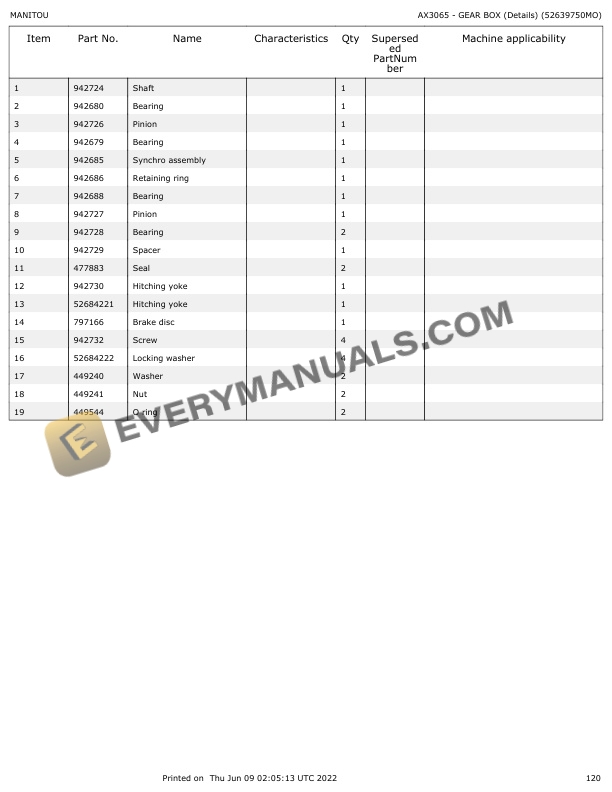

5.1.8. AX3065 GEAR BOX (Details) (52639750MO)
5.1.9. AX3066 GEAR BOX (Details) (52639750MO)
5.1.10. AX3067 GEAR BOX (Details) (52639750MO)
5.1.11. AX3068 GEAR BOX (Details) (52639750MO)
5.1.12. AX3069 GEAR BOX (Details) (52639750MO)
5.2. _PROPSHAFT
5.2.1. BP276 CARDAN COUPLING GEAR BOX REAR AXLE (273634MOD)
5.2.2. BP275 CARDAN COUPLING GEAR BOX FRONT AXLE (273633MOD)
5.3. _HYDROSTATIC CIRCUIT
5.3.1. A2004 ENGINE TRANSMISSION ADAPTATION (647761)
6. AXLE ASSEMBLY AXLE
6.1. FRONT AXLE_52521262MO
6.1.1. AX3042 FRONT AXLE (647761)
6.1.2. AX2239 FRONT AXLE DIFFERENTIAL (52521262MO)
6.1.3. AX2238 FRONT AXLE CASING (52521262MO)
6.1.4. AX2240 FRONT AXLE REDUCTION GEAR (52521262MO)
6.1.5. AX2241 OIL BATH DISC BRAKE FRONT AXLE (52521262MO)
6.1.6. AX2242 FRONT AXLE STEERING SYSTEM (52521262MO)
6.1.7. AX2243 FRONT AXLE BRACKET (52521262MO)
6.2. AXLE REAR_52519250MO
6.2.1. AX3007 REAR AXLE (647761)
6.2.2. AX2270 REAR AXLE CASING (52519250MO)
6.2.3. AX2271 REAR AXLE DIFFERENTIAL (52519250MO)
6.2.4. AX2272 REAR AXLE REDUCTION GEAR (52519250MO)
6.2.5. AX2273 OIL BATH DISC BRAKE REAR AXLE (52519250MO)
6.2.6. AX2274 REAR AXLE STEERING SYSTEM (52519250MO)
6.3. _WHEELS
6.3.1. A543 WHEELS (647761)
6.4. A156 LUBRIFICATION (647761)
7. LIFT STRUCTURE
7.1. A1120 BOOM (Simultaneous telescoping) (647761)
8. HYDRAULIC
8.1. A467 HYDRAULIC (Details) (647761)
8.2. A498 HYDRAULIC (Details) (52624601MO)
8.3. _CIRCUIT
8.3.1. A743 HYDRAULIC (Steering circuit) (647761)

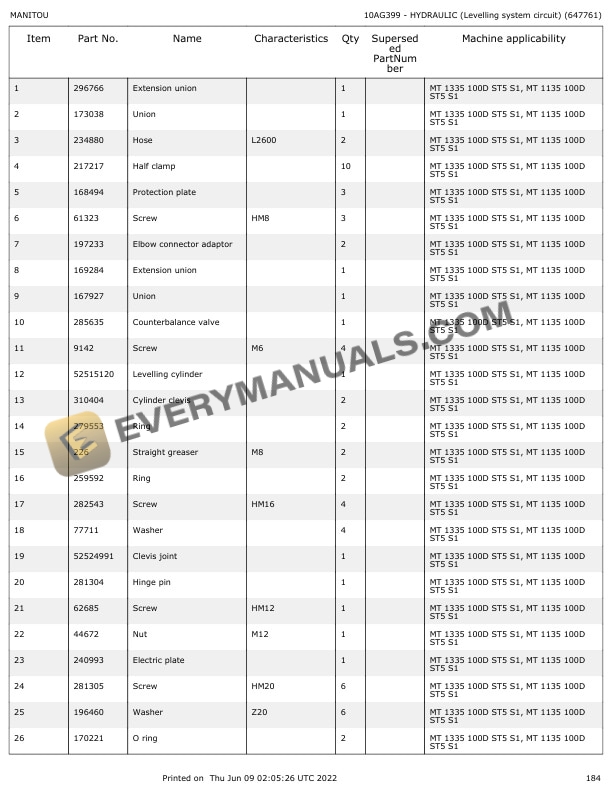

8.3.2. G399 HYDRAULIC (Levelling system circuit) (647761)
8.3.3. G398 HYDRAULIC (Stabilizer circuit) (647761)
8.3.4. A1548 HYDRAULIC (Principal circuit) (647761)
8.3.5. A1516 HYDRAULIC (Principal circuit) (647761)
8.3.6. A1517 HYDRAULIC (Circuit) (647761)
8.3.7. E2003 HYDRAULIC (Principal circuit) (647761)
8.3.8. E2005 HYDRAULIC (Telescope circuit) (647761)
8.3.9. E2007 HYDRAULIC (Telescope circuit) (647761)
8.3.10. E2009 HYDRAULIC (Compensation Boom feed circuit) (647761)
8.3.11. E2011 HYDRAULIC (Boom circuit) (647761)
8.3.12. A156 LUBRIFICATION (647761)
8.3.13. A157 LUBRIFICATION (647761)
8.4. _VALVE BANK
8.4.1. A693 VALVE BANK (52620301MO)
8.5. _JOYSTICK
8.5.1. A285 REMOTE CONTROL UNIT (Details) (290603MOD)
8.5.2. A501 MANIPULATEUR (52673057MO)
8.6. _RAM
8.6.1. A600 HYDRAULIC (Lifting cylinder) (52515116MO)
8.6.2. B64 COMPENSATION CYLINDER (271921MOD)
8.6.3. C206 INNER TELESCOPE CYLINDER (52518550MO)
8.6.4. C176 INNER TELESCOPE CYLINDER (279351MOD)
8.6.5. D135 TILTING CYLINDER (271925MOD)
8.6.6. F104 HYDRAULIC (Levelling system cylinder) (52515120MO)
8.6.7. F105 HYDRAULIC (Stabilizer cylinder) (52515119MO)
9. ELECTRICITY
9.1. _CIRCUIT HARNESS
9.1.1. A2157 ELECTRIC CIRCUIT (647761)
9.1.2. A2156 ELECTRIC CIRCUIT (647761)
9.1.3. A2154 ELECTRIC CIRCUIT (647761)
9.1.4. A2071 ELECTRIC CIRCUIT (647761)
9.1.5. C540 ELECTRICITY (Cab structure) (647761)
9.2. _LIGHTING SIGNALING
9.2.1. B2165 ELECTRICITY (Details) (647761)
9.2.2. B2166 ELECTRICITY (Details) (647761)
9.3. _SELECTOR MANIPULATOR
9.3.1. A285 REMOTE CONTROL UNIT (Details) (290603MOD)
10. OPERATOR STATION
10.1. CAB_52619813MO
10.1.1. B2276 CAB (Details) (52619813MO)
10.1.2. B2277 CAB (Details) (52619813MO)
10.1.3. B2278 CAB (Details) (52619813MO)
10.1.4. B2279 CAB (Details) (52619813MO)
10.1.5. B2280 CAB (Details) (52619813MO)
10.1.6. B2281 CAB (Details) (52619813MO)
10.2. _CAB
10.2.1. A1275 SEAT (314253MOD)
10.2.2. A1733 CAB ADAPTATION (647761)
10.2.3. A1734 CAB ADAPTATION (647761)
10.2.4. A1964 SEAT (52721051mo)
10.2.5. C540 ELECTRICITY (Cab structure) (647761)
10.3. _HEATER AIR CONDITIONING
10.3.1. D584 HEATING CIRCUIT (647761)
10.3.2. D560 HEATING CIRCUIT (52527577MO)
11. FRAME BODY
11.1. A595 FRAME COUNTERWEIGHT (647079)
11.2. A1044 FRAME COUNTERWEIGHT (647761)
11.3. A1140 BODY (647761)
11.4. A1141 BODY (647761)
