Manitou MT 1440 HA 100P ST4 S1, MT 1840 HA 100P ST4 S1 Parts Manual 647596
$30
- Type Of Manual: Parts Manual
- Manual ID: 647596
- Format: PDF
- Size: 82.2MB
- Number of Pages: 431
Description
-
Model List:
- MT 1440 HA 100P ST4 S1
- MT 1840 HA 100P ST4 S1
- 1. EXPLANATION OF SYMBOLS
- 1.1. EXPLANATION OF SYMBOLS
- 2. GENERAL INSTRUCTIONS AND SAFETY NOTICE
- 2.1. _ADHESIVE SIGNS
- 3. SERVICE PARTS AND FILTERS
- 3.1. FILTERSBELT
- 4. ENGINE
- 4.1. A1719 ENGINE TRANSMISSION ADAPTATION (647596)
- 4.2. ENGINE_52527802MO

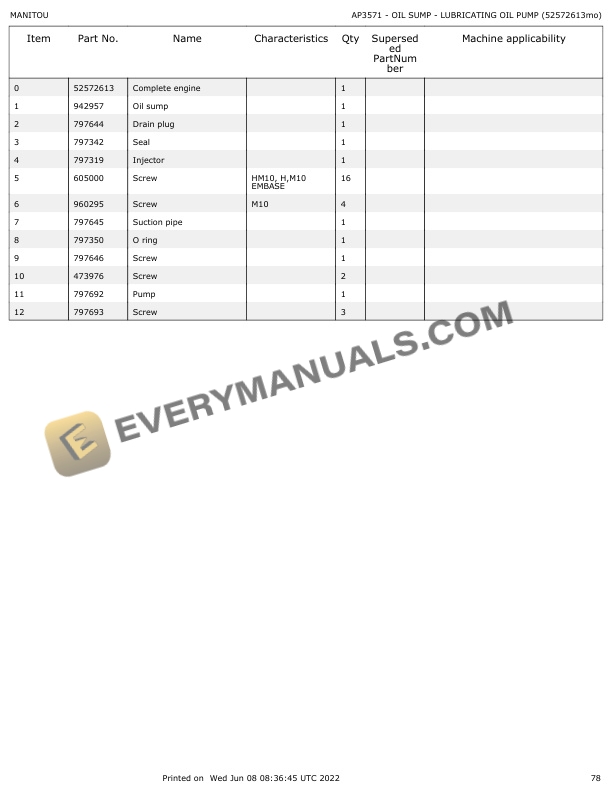

- 4.3. ENGINE_52572613MO_( > 990321)
- 4.4. _COMPLETE
- 4.5. _INTAKE SYSTEM EXHAUST
- 4.6. _FUEL SUPPLY SYSTEM
- 4.7. _COOLING SYSTEM
- 5. TRANSMISSION
- 5.1. _PROPSHAFT
- 5.2. BOITE DE VITESSES
- 5.3. _HYDROSTATIC CIRCUIT
- 5.4. _HYDROSTATIC MOTOR_267318MOD_(> MAN0000C01011568)
- 5.5. _HYDROSTATIC MOTOR_52595453MO_(> MAN0000C01011569

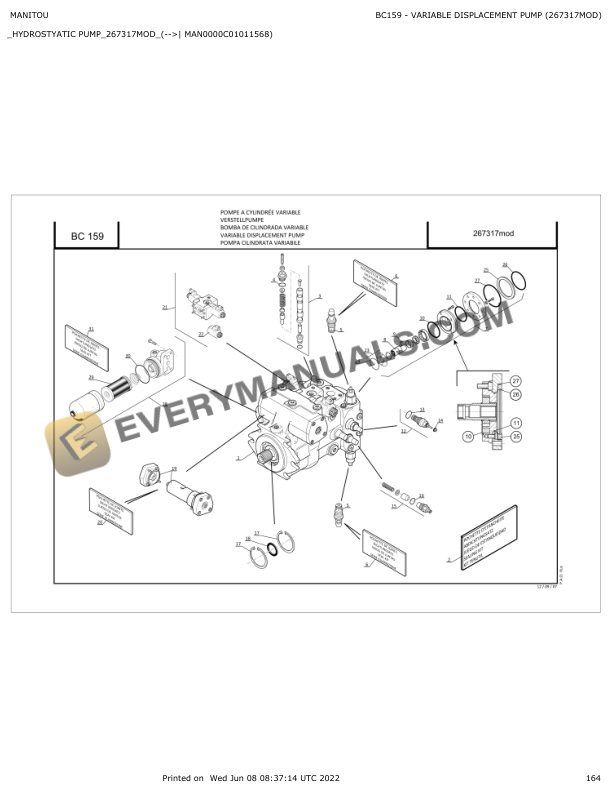

- 5.6. _HYDROSTYATIC PUMP_267317MOD_(> MAN0000C01011568)
- 5.7. _HYDROSTYATIC PUMP_52595448MO_( > MAN0000C01011569)
- 6. AXLE ASSEMBLY AXLE
- 6.1. FRONT AXLE_52518903MO
- 6.2. REAR AXLE_52518911MO
- 6.3. _WHEELS
- 7. BRAKE
- 7.1. A458 BRAKE CIRCUIT (647596)
- 8. LIFT STRUCTURE
- 8.1. A977 BOOM (Simultaneous telescoping) (647596)
- 8.2. A978 SEALING KIT ON JIB (647596)
- 8.3. A979 BOOM (Simultaneous telescoping) (647596)
- 8.4. A980 BOOM (Simultaneous telescoping) (647596)
- 8.5. A981 SEALING KIT ON BOOM (647596)
- 9. HYDRAULIC
- 9.1. _CIRCUIT
- 9.2. _VALVE BANK
- 9.3. _JOYSTICK
- 9.4. _PUMP
- 9.5. _RAM
- 10. ELECTRICITY
- 10.1. _CIRCUIT HARNESS
- 10.2. _LIGHTING SIGNALING
- 10.3. _SWITCH
- 10.4. _SAFETY SYSTEM
- 10.5. _SELECTOR MANIPULATOR
- 11. OPERATOR STATION
- 11.1. CAB_52537648MO_(> 989858)
- 11.2. CAB_52563594MO_(> MAN00000C985859)
- 11.3. _CAB
- 11.4. _HEATER AIR CONDITIONING

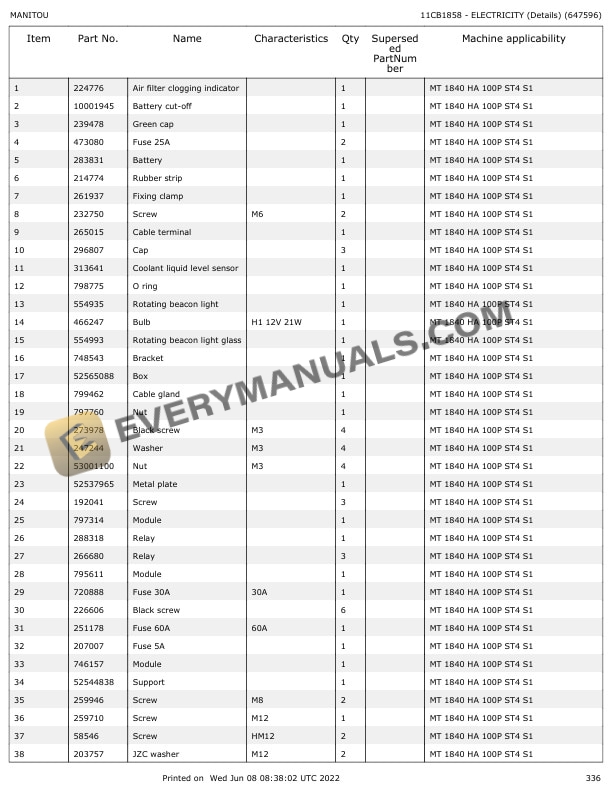

- 11.5. _ELECTRICITY
- 12. FRAME BODY
- 12.1. A965 BODY (647596)
- 12.2. A964 BODY (647596)
- 12.3. A963 BODY (647596)
- 12.4. A962 BODY (647596)
- 12.5. A961 BODY (647596)
- 12.6. A868 FRAME COUNTERWEIGHT (647596)
- 12.7. A1188 BODY (647596)
- 13. ADDITIONAL EQUIPMENT
- 14. ATTACHMENTS
- 15. DIAGNOSTIC TOOL AND SOFTWARE
