Manitou MT 6034 Telescopic Handler Shop Manual 50960125 Rev.A
$30
- Type Of Manual: Shop Manual
- Manual ID: 50960125 Rev.A
- Format: PDF
- Size: 11.9MB
- Number of Pages: 292
Description
-
Model List:
- MT 6034 Telescopic Handler
- 1. Front Cover
- 2. Introduction
- 3. Table of Contents
- 3.1. Personal Safety Information and Decal Locations
- 3.2. General Information and Specifications
- 3.3. Engine Removal and Installation
- 3.4. Electrical Schematics, Troubleshooting Testing and Adjustment Procedures
- 3.5. Battery Removal and Installation
- 3.6. Steering Control Valve Removal and Installation
- 3.7. Transmission Removal and Installation
- 3.8. Rear Axle Removal and Installation
- 3.9. Front Axle Removal and Installation

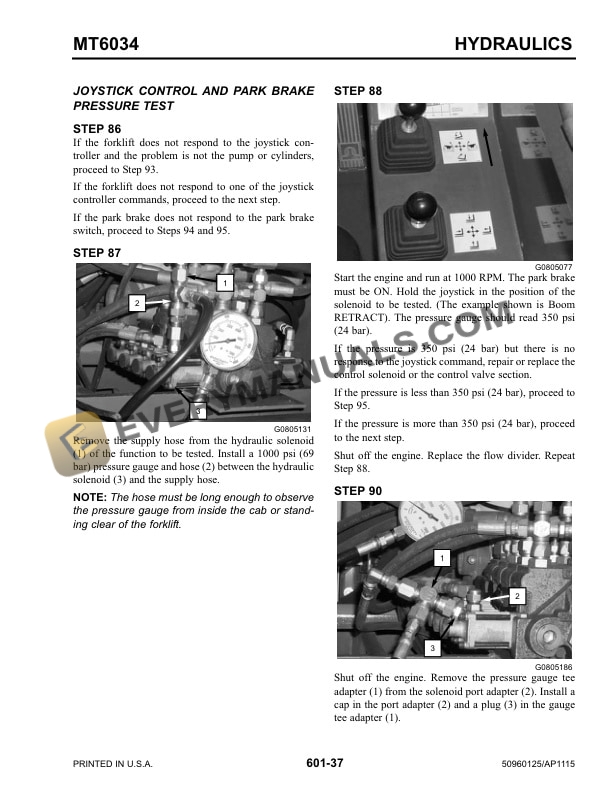

- 3.10. Hydraulic Schematic, Troubleshooting, Testing and Adjustment Procedures
- 3.11. Hydraulic Pump Removal and Installation
- 3.12. Frame Level Cylinder Removal and Installation
- 3.13. Tilt Cylinder Removal and Installation
- 3.14. Hydraulic Cylinder Repair
- 3.15. Slave Cylinder Removal and Installation
- 3.16. Lift Cylinder Removal and Installation

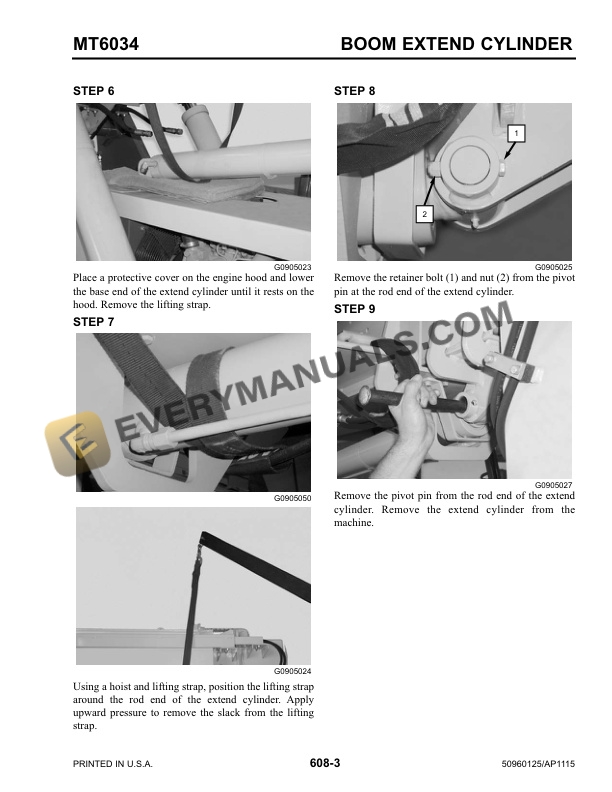

- 3.17. Boom Extend Cylinder Removal and Installation
- 3.18. Boom Assmbly Removal and Installation
- 3.19. Single and Double Leaf Chain Adjustment
- 3.20. Inner Boom Section Removal and Installation
- 3.21. Telescoping Boom Double Chain and Roller Bearing Replacement
- 3.22. Telescoping Boom Single Chain and Roller Bearing Replacement.
- 3.23. Intermediate Boom Section Removal and Installation
