Manitou MT-X 625 H 75K ST3A S2, MT-X 625 H Comfort 75K ST3A S2, MT-X 625 HA 75K ST3A S2 Parts Manual 647812

Type Of Manual: Parts Manual
Manual ID: 647812
Format: PDF
Size: 59.2MB
Number of Pages: 298

Category: Manitou Parts Manual PDF

Description

Model List:
- MT-X 625 H 75K ST3A S2
- MT-X 625 H Comfort 75K ST3A S2
- MT-X 625 HA 75K ST3A S2

1. EXPLANATION OF SYMBOLS
1.1. EXPLANATION OF SYMBOLS
2. GENERAL INSTRUCTIONS AND SAFETY NOTICE
2.1. ADHESIVE SIGNS
2.1.1. A1077 ADHESIVE (647812)
2.1.2. A1078 ADHESIVE (647812)
2.1.3. A1079 ADHESIVE (647812)
2.1.4. A1080 ADHESIVE (647812)
3. SERVICE PARTS AND FILTERS
3.1. LUBRICANTS
3.1.1. A3 HYDRAULIC BLUE OIL (VG46HV)
3.1.2. A6 ENGINE OIL (15W40_API_CI4)
3.1.3. A9 BRAKE FLUIDS LHM (LHM)
3.1.4. A11 MANUAL GEARBOX OIL (SAE80W90)
3.1.5. A13 WINDSCREEN WASHER LIQUID (LAVEGLACE)
3.1.6. A14 COOLING LIQUID (SMB_35)
3.1.7. A17 GREASE BLACK MULTIPURPOSE (GRAISSE_NOIRE)
3.1.8. A18 GREASE BLUE MULTIPURPOSE (GRAISSE_BLEUE)
3.2. FILTERSBELT
3.2.1. A397 FILTERS AND BELTS (647812)
4. ENGINE
4.1. AK812 ENGINE ADAPTATION (647812)
4.2. ENGINE_270516MOD
4.2.1. MOTEUR_270516MOD
4.2.2. AK232 CYLINDER BLOCK (270516MOD)
4.2.3. AK233 PISTONS, CONNECTING RODS AND CRANKSHAFT (270516MOD)
4.2.4. AK234 CYLINDER HEAD (270516MOD)
4.2.5. AK235 ROCKER LEVER SHAFT (270516MOD)
4.2.6. AK236 OIL SUMP LUBRICATING OIL PUMP (270516MOD)
4.2.7. AK237 ROCKER LEVER COVER AND BREATHER (270516MOD)
4.2.8. AK238 WATER PUMP (270516MOD)
4.2.9. AK239 CAMSHAFT (270516MOD)
4.2.10. AK240 OIL FILTER (270516MOD)
4.2.11. AK241 FLY WHEEL (270516MOD)
4.2.12. AK242 ALTERNATOR PULLEY (270516MOD)
4.2.13. AK243 ALTERNATOR (Details) (270516MOD)
4.2.14. AK244 INTAKE MANIFOLD (270516MOD)
4.2.15. AK245 EXHAUST MANIFOLD (270516MOD)
4.2.16. AK246 TURBOCHARGER (270516MOD)
4.2.17. AK247 FUEL CIRCUIT (270516MOD)
4.2.18. AK248 INJECTION PUMP (270516MOD)
4.2.19. AK249 OIL COOLER (270516MOD)
4.2.20. AK250 SEAL KIT (270516MOD)
4.3. _COMPLETE
4.3.1. A2031 ENGINE TRANSMISSION ADAPTATION (647812)
4.4. _INTAKE SYSTEM EXHAUST
4.4.1. A2036 ENGINE TRANSMISSION ADAPTATION (647812)
4.4.2. A2038 ENGINE TRANSMISSION ADAPTATION (647812)
4.5. _FUEL SUPPLY SYSTEM
4.5.1. C502 To be defined (647812)
4.6. _COOLING SYSTEM
4.6.1. A1789 RADIATOR (Details) (52530212MO)
4.6.2. A2035 ENGINE TRANSMISSION ADAPTATION (647812)
4.7. _ELECTRICITY
4.7.1. D352 ELECTRICITY (Engine Transmission) (647812)
5. TRANSMISSION
5.1. _PROPSHAFT
5.1.1. BP279 CARDAN COUPLING FRONT AXLE REAR AXLE (274008MOD)
5.2. _HYDROSTATIC CIRCUIT
5.2.1. B465 HYDROSTATIC TRANSMISSION CIRCUIT (647812)
5.3. _HYDROSTATIC MOTOR
5.3.1. MOTEUR_A_CYLINDRE_VARIABLE_52500588MO
5.3.2. BD23 VARIABLE MOTOR (52500588MO)
5.4. _HYDROSTYATIC PUMP
5.4.1. POM_CYL_VAR_52625960
5.4.2. BD29 VARIABLE DISPLACEMENT PUMP (52625960MO)
6. AXLE ASSEMBLY AXLE
6.1. AX3000 FRONT AXLE (647812)
6.2. FRONT AXLE_52535277MO
6.2.1. PONT_AVANT_52535277MO
6.2.2. AX2464 FRONT AXLE CASING (52535277MO)
6.2.3. AX2465 FRONT AXLE DIFFERENTIAL (52535277MO)
6.2.4. AX2466 FRONT AXLE REDUCTION GEAR (52535277MO)
6.2.5. AX2467 OIL BATH DISC BRAKE FRONT AXLE (52535277MO)
6.2.6. AX2468 FRONT AXLE STEERING SYSTEM (52535277MO)
6.3. AX3002 REAR AXLE (647812)
6.4. AXLE REAR_52535276MO
6.4.1. ESSIEU_ARRIERE_52535276MO
6.4.2. AX2459 REAR AXLE CASING (52535276MO)
6.4.3. AX2460 REAR AXLE DIFFERENTIAL (52535276MO)
6.4.4. AX2461 REAR AXLE REDUCTION GEAR (52535276MO)
6.4.5. AX2462 REAR AXLE STEERING SYSTEM (52535276MO)
6.4.6. AX2463 REAR AXLE BRACKET (52535276MO)
6.5. _WHEELS
6.5.1. A551 WHEELS (647812)
7. BRAKE
7.1. A569 BRAKE CIRCUIT (647812)
7.2. A570 BRAKE CIRCUIT (647812)
7.3. B385 PEDALS LINKAGE (647812)
8. LIFT STRUCTURE
8.1. A1126 BOOM (647812)
9. HYDRAULIC
9.1. _CIRCUIT

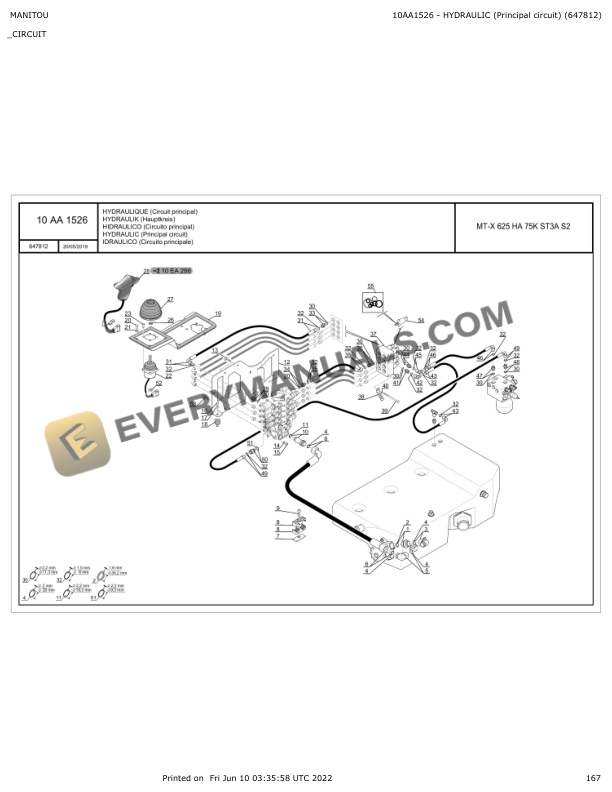

9.1.1. A1521 HYDRAULIC (Principal circuit) (647812)
9.1.2. A1523 HYDRAULIC (Principal circuit) (647812)
9.1.3. A1524 HYDRAULIC (Principal circuit) (647812)
9.1.4. A1525 HYDRAULIC (Principal circuit) (647812)
9.1.5. A1526 HYDRAULIC (Principal circuit) (647812)
9.1.6. E2020 HYDRAULIC (Telescope circuit) (647812)
9.1.7. E2021 HYDRAULIC (Tilting circuit) (647812)
9.1.8. E2022 HYDRAULIC (Attachment circuit) (647812)
9.1.9. E2023 HYDRAULIC (Telescope circuit) (647812)
9.1.10. E2024 HYDRAULIC (Tilting circuit) (647812)
9.1.11. E2025 HYDRAULIC (Attachment circuit) (647812)
9.1.12. E2031 HYDRAULIC (Compensation Lifting circuit) (647812)
9.1.13. A688 HYDRAULIC (Steering circuit) (647812)
9.2. _VALVE BANK
9.2.1. A309 VALVE BANK (259532MOD)
9.2.2. A423 VALVE BANK (288135MOD)
9.2.3. A681 VALVE BANK (52602991MO)
9.2.4. A461 HYDRAULIC (Details) (647812)
9.2.5. A462 HYDRAULIC (Details) (647812)
9.2.6. A463 HYDRAULIC (Details) (647812)
9.3. _JOYSTICK
9.3.1. A286 REMOTE CONTROL UNIT (Details) (290588MOD)
9.4. _RAM
9.4.1. A359 LIFTING CYLINDER (300020MOD)
9.4.2. B67 HYDRAULIC (Compensation cylinder) (288651MOD)
9.4.3. C198 TELESCOPE CYLINDER (52519383MO)
9.4.4. D217 TILTING CYLINDER (52553355MO)
9.4.5. D230 HYDRAULIC (Tilting cylinder) (52553356MO)
10. ELECTRICITY
10.1. _CIRCUIT HARNESS
10.1.1. A2076 ELECTRIC CIRCUIT (647812)
10.1.2. A2077 ELECTRIC CIRCUIT (647812)
10.1.3. A2078 ELECTRIC CIRCUIT (647812)
10.1.4. A2079 ELECTRIC CIRCUIT (647812)
10.2. _LIGHTING SIGNALING
10.2.1. B2174 FRONT WORKING HEADLIGHT REAR (647812)

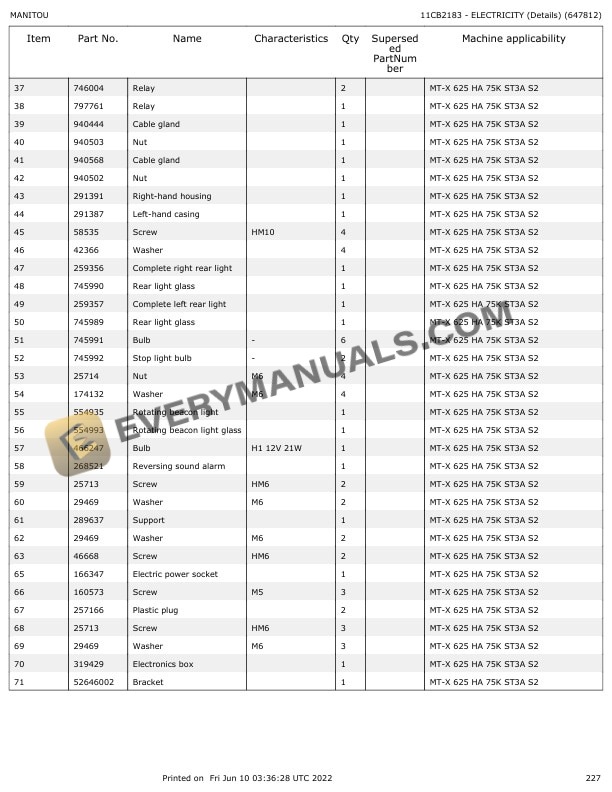

10.2.2. B2183 ELECTRICITY (Details) (647812)
10.2.3. B2182 ELECTRICITY (Details) (647812)
10.2.4. B2181 ELECTRICITY (Details) (647812)
10.3. _SELECTOR MANIPULATOR
10.3.1. A286 REMOTE CONTROL UNIT (Details) (290588MOD)
10.4. B1635 EMERGENCY ELECTRIC PUMP (834654MOD)
11. OPERATOR STATION
11.1. CAB_52604187MO
11.1.1. CAB 52604187MO
11.1.2. B2236 CAB (Details) (52604187MO)
11.1.3. B2237 CAB (Details) (52604187MO)
11.1.4. B2238 CAB (Details) (52604187MO)
11.2. _CAB
11.2.1. A1737 CAB ADAPTATION (647812)
11.2.2. A1739 CAB ADAPTATION (647812)
11.2.3. A1741 CAB ADAPTATION (647812)
11.2.4. A1742 CAB ADAPTATION (647812)
11.2.5. A1744 Fittings (647812)
11.2.6. A1745 Fittings (647812)
11.2.7. A1748 CAB ADAPTATION (647812)
11.2.8. C543 ELECTRICITY (Cab structure) (647812)
11.2.9. C546 ELECTRICITY (Cab structure) (647812)
11.3. _HEATER AIR CONDITIONING
11.3.1. D562 To be defined (647812)
11.3.2. D563 HEATING CIRCUIT (52581287MO)
12. FRAME BODY
12.1. A991 FRAME COUNTERWEIGHT (647812)
12.2. A1131 BODY (647812)
12.3. A1145 BODY (647812)
12.4. A1146 BODY (647812)
