Manitou TMM 20 D K ST5 S1, TMM 25 D K ST5 S1 Parts Catalog 52638633
$30
- Type Of Manual: Parts Catalog
- Manual ID: 52638633
- Format: PDF
- Size: 28.3MB
- Number of Pages: 181
Description
-
Model List:
- TMM 20 D K ST5 S1
- TMM 25 D K ST5 S1
- 1. EXPLANATION OF SYMBOLS
- 1.1. EXPLANATION OF SYMBOLS
- 2. GENERAL INSTRUCTIONS AND SAFETY NOTICE
- 2.1. _ADHESIVE SIGNS
- 2.1.1. A1151 ADHESIVE (52638632)
- 2.1.2. A1155 ADHESIVE (52638633)
- 3. FILTERSBELT
- 4. FRAME BODY
- 4.1. A1040 FRAME (52642235)
- 4.2. B401 PEDALS LINKAGE (52604115)
- 4.3. A1250 BODY (52604121)
- 4.4. A1251 BODY (52642239)
- 4.5. A1253 BODY (52613131)
- 4.6. A1254 BODY (52646360)
- 4.7. A1255 BODY (52623593)
- 5. ELECTRICITY
- 5.1. A2161 ELECTRIC CIRCUIT (52604141)
- 5.2. B2324 ELECTRICITY (Details) (52604141)
- 5.3. C581 ELECTRICITY (Cab structure) (52604141)

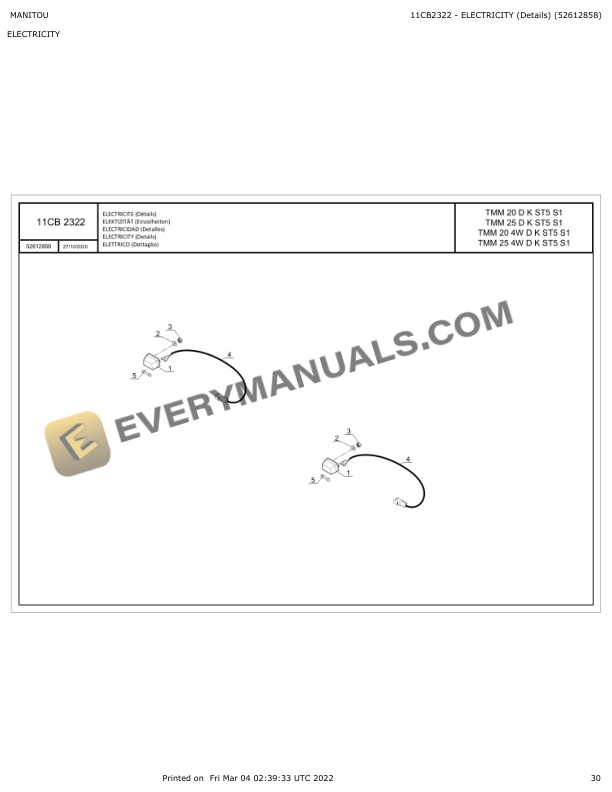

- 5.4. B2322 ELECTRICITY (Details) (52612858)
- 5.5. C580 ELECTRICITY (Cab structure) (52613277)
- 6. AXLE ASSEMBLY AXLE
- 6.1. AXLE FRONT_
- 6.2. AXLE REAR_
- 6.3. _WHEELS
- 6.3.1. A585 FRONT WHEELS (52642282)
- 6.3.2. A589 REAR WHEELS (52642283)
- 6.3.3. A135 DRIVING PIVOT (52604116)
- 7. TELESCOPIC BOOM
- 8. MATS
- 8.1. B118 (647436)
- 8.2. C138 (647436)
- 8.3. F1038 (647436)
- 8.4. F1045 (647436)
- 8.5. A162 DOUBLE MAST (Lift height 3,00 m to 3,90 m) (647436)
- 8.6. A164 CHAIN (Details) (647436)
- 8.7. D1 EXTENDER (647436)
- 8.8. H56 HYDRAULIC (Attachment option) (647436)
- 9. HYDRAULIC
- 9.1. _CIRCUIT

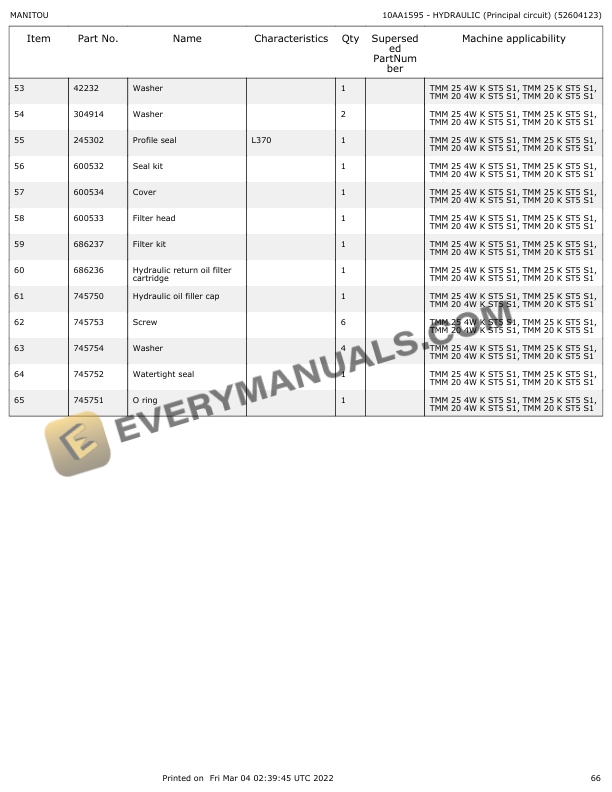

- 9.1.1. A1595 HYDRAULIC (Principal circuit) (52604123)
- 9.1.2. A1596 HYDRAULIC (Principal circuit) (52604124)
- 9.1.3. E2126 HYDRAULIC (Tilting circuit) (52604125)
- 9.1.4. E2127 HYDRAULIC (Throttle circuit) (52604139)
- 9.1.5. G400 HYDRAULIC (Stabilizer circuit) (52638559)
- 9.1.6. G401 HYDRAULIC (Stabilizer circuit) (52604138)
- 9.1.7. G405 HYDRAULIC (Stabilizer circuit) (52642282)
- 9.1.8. K10 HYDRAULIC (Mast translation circuit) (52604126)
- 9.1.9. A739 HYDRAULIC (Steering circuit) (52638362)
- 9.2. _VALVE BANK
- 9.2.1. BC50 PRESSURE REDUCING VALVE (75498MOD)
- 9.2.2. A2202 ENGINE TRANSMISSION ADAPTATION (52607358)
- 9.3. _JOYSTICK
- 9.4. _RAM
- 9.4.1. F110 HYDRAULIC (Stabilizer cylinder) (52627135MO)
- 9.4.2. D233 HYDRAULIC (Tilting cylinder) (52517194MO)
- 9.4.3. E85 HYDRAULIC (Rear steering cylinder) (305134mod)
- 9.4.4. Z173 HYDRAULIC (Translation cylinder) (304010mod)
- 10. ENGINE
- 10.1. A2196 ENGINE TRANSMISSION ADAPTATION (52604111)
- 10.2. A2198 ENGINE TRANSMISSION ADAPTATION (52604110)
- 10.3. C531 FUEL CIRCUIT (52604112)
- 10.4. ENGINE_52571204MO
- 10.4.1. AK955 ENGINE ADAPTATION (52571204MO)
- 10.4.2. AK956 CYLINDER BLOCK (52571204MO)
- 10.4.3. AK957 PISTONS, CONNECTING RODS AND CRANKSHAFT (52571204MO)
- 10.4.4. AK958 CYLINDER HEAD (52571204MO)
- 10.4.5. AK959 ROCKER LEVER SHAFT (52571204MO)
- 10.4.6. AK960 OIL SUMP LUBRICATING OIL PUMP (52571204MO)
- 10.4.7. AK961 ROCKER LEVER COVER AND BREATHER (52571204MO)
- 10.4.8. AK962 WATER PUMP (52571204MO)
- 10.4.9. AK963 TIMING GEAR AND CAMSHAFT (52571204MO)
- 10.4.10. AK964 FLY WHEEL STARTER MOTOR (52571204MO)
- 10.4.11. AK965 ALTERNATOR (52571204MO)
- 10.4.12. AK966 INTAKE MANIFOLD (52571204MO)
- 10.4.13. AK967 EXHAUST MANIFOLD (52571204MO)
- 10.4.14. AK968 FUEL CIRCUIT (52571204MO)

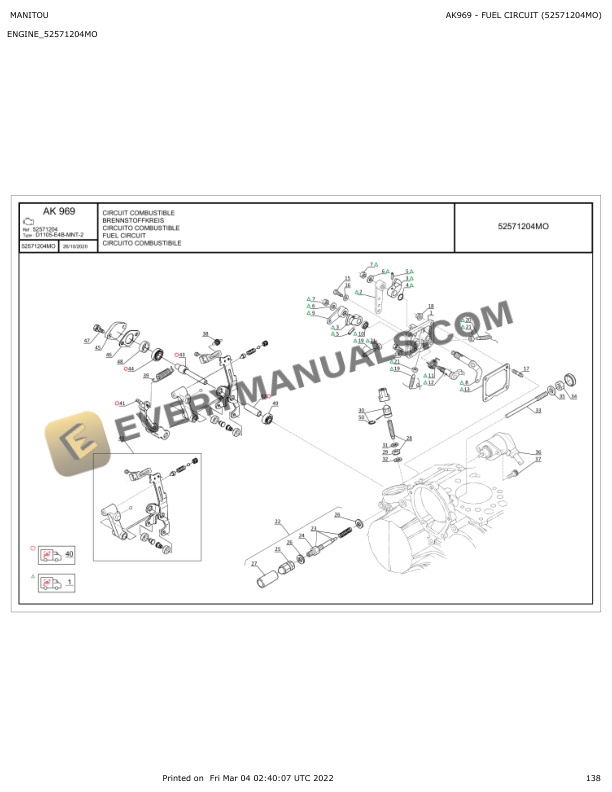

- 10.4.15. AK969 FUEL CIRCUIT (52571204MO)
- 10.5. _COMPLETE
- 10.5.1. A2177 ENGINE TRANSMISSION ADAPTATION (52604108)
- 10.6. _FUEL SUPPLY SYSTEM
- 10.6.1. C531 FUEL CIRCUIT (52604112)
- 10.7. _INTAKE SYSTEM EXHAUST

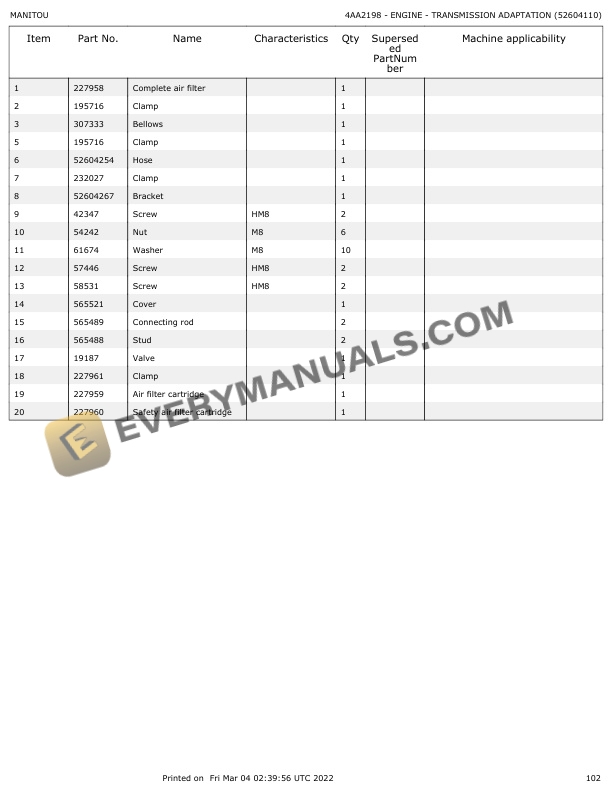

- 10.7.1. A2190 ENGINE ADAPTATION EXHAUST MUFFLER (52604106)
- 10.8. _COOLING SYSTEM
- 10.8.1. A2188 ENGINE TRANSMISSION ADAPTATION (52604113)
- 10.8.2. A2189 RADIATOR (Details) (52604310MO)
- 11. PEDALS
- 12. DRIVER CAB
- 12.1. _CAB
- 12.1.1. A1847 CAB STRUCTURE BODY (52604117)
- 12.1.2. A1848 SEAT ADAPTATION (52604118)
- 12.1.3. A1814 SEAT (52677073MO)
- 12.1.4. A1849 CAB ADAPTATION (52604120)
- 13. TRANSMISSION
- 13.1. _PROPSHAFT
- 13.2. BOITE DE VITESSES
- 13.3. _HYDROSTATIC CIRCUIT
- 13.3.1. B527 HYDROSTATIC TRANSMISSION CIRCUIT (52638625)
- 13.3.2. B528 HYDROSTATIC TRANSMISSION CIRCUIT (52638625)
- 13.3.3. B529 HYDROSTATIC TRANSMISSION CIRCUIT (52638625)
- 13.4. _HYDROSTATIC MOTOR
- 13.4.1. BF53 REAR WHEEL MOTOR (767071MOD)
- 13.4.2. BF61 WHEEL MOTOR (300464MOD)
- 13.5. _HYDROSTYATIC PUMP
- 13.5.1. BC250 VARIABLE DISPLACEMENT PUMP (316723mod)
