Manitou Type 318 Dana Gearbox Repair Manual 647526EN
$30
- Type Of Manual: Repair Manual
- Manual ID: 647526EN
- Format: PDF
- Size: 58.8MB
- Number of Pages: 68
Description
-
Model List:
- Type 318 Dana Gearbox
- 1. INTRODUCTION
- 1.1. VERSION TRACKING
- 1.2. MANUAL APPLICABILITY AND SUPPORTED MODELS

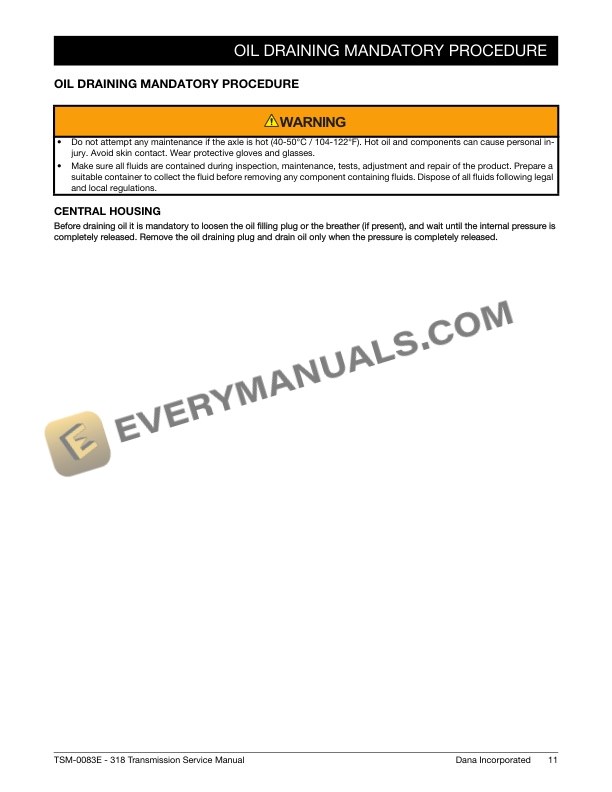

- 1.3. OIL DRAINING MANDATORY PROCEDURE
- 1.3.1. CENTRAL HOUSING
- 1.4. ENDSTOP PLIER SETTING
- 1.4.1. RETAINING SNAP RING FOR BORES
- 1.4.2. RETAINING SNAP RING FOR SHAFTS
- 1.5. MAINTENANCE INTERVALS
- 1.6. CONVERSION TABLES
- 1.7. TORQUE SPECIFICATIONS
- 1.7.1. COARSE PITCH
- 1.7.2. FINE PITCH
- 1.8. LUBRICANT SEALANT SPECIFICATIONS
- 2. SAFETY PRECAUTIONS
- 3. COUNTER REVOLUTION SENSOR (DROPIN TYPE)

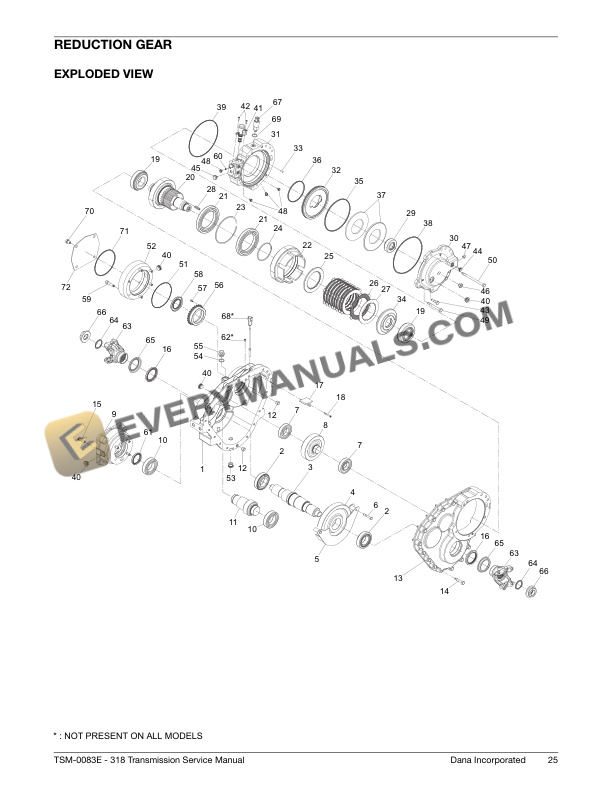

- 3.1. EXPLODED VIEW
- 3.2. DISASSEMBLY
- 3.2.1. SPEED SENSOR CLEANING
- 3.3. ASSEMBLY
- 4. COUNTER REVOLUTION SENSOR (SCREWIN TYPE)
- 4.0.1. INPUT COVER FOR 1st HYDROSTATIC MOTOR
- 4.0.2. INPUT COVER FOR 2nd HYDROSTATIC MOTOR
- 4.0.3. CLUTCH ASSEMBLY
- 4.0.4. INPUT SHAFT FOR 1st HYDROSTATIC MOTOR
- 4.0.5. INPUT SHAFT FOR 1ST HYDROSTATIC MOTOR
- 5. BEARING PRELOADING ADJUSTMENT INPUT DRIVE SHAFT 2nd GEAR

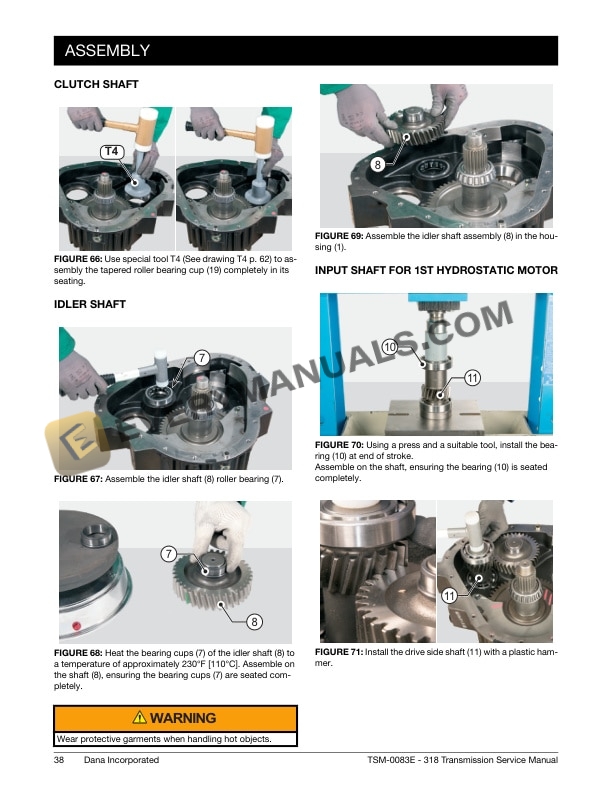

- 5.1. ASSEMBLY
- 5.1.1. Definition of ring nut slot position and position A and B
