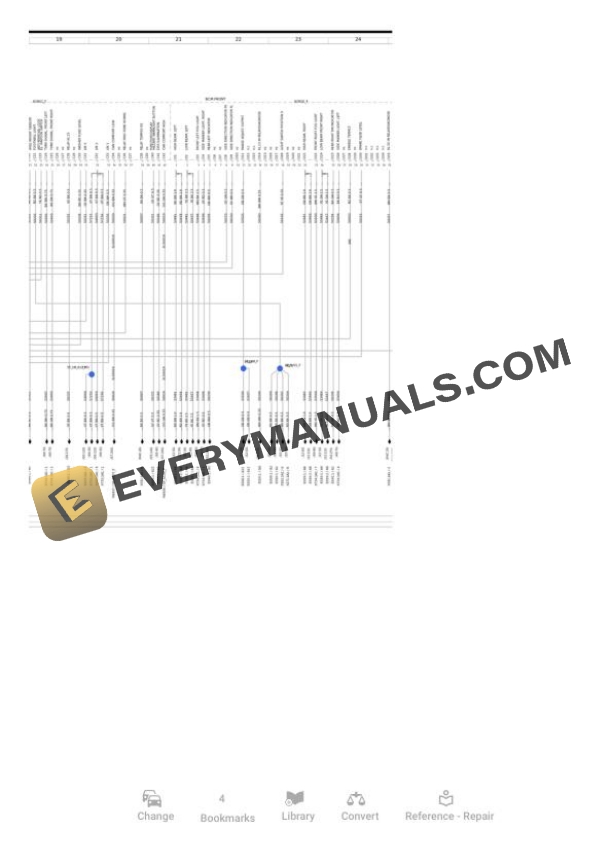

Porsche Cayenne Turbo (92A) 2013 Electrical Diagrams V8-4.8L Turbo

Porsche Cayenne Turbo (92A) 2013 Electrical Diagrams V8-4.8L Turbo - Image 2

Porsche Cayenne Turbo (92A) 2013 Electrical Diagrams V8-4.8L Turbo

Date: 2013
Type Of Manual: Electrical Diagrams
Engine: V8-4.8L Turbo
Number of Pages: 771
Size: 115.4MB
Format: PDF

Category: Porsche Wiring Diagrams PDF Tag: Automotive

Description

Model List:
- Cayenne Turbo (92A)

1. E) Rear Lid
2. B) Rear Lid, Right_001
3. Rear Lid D. Points – Sheet 4E
4. Headlights – W_O DRL
5. Navigation – Navigation Circuit (W_ Burmester)
6. B) CDR (CD Radio)_002
7. Front A_C Unit – Sheet 5B
8. Washer Fluid Level Switch
9. Seats – Rear Seat Heater Circuit
10. A) Fuse Box, Left
11. M) PRSE (Porsche Rear Seat Entertainment)
12. Bose (R) Surround Sound System_001
13. M) E-Box Plenum Panel.V6
14. Disconnection Points, Doors_001
15. Fuel Pump
16. Trailer – Sheet 37
17. Ground Points LHD (Engine Compartment) – Sheet 17A
18. Body Computer – Rear Control Unit Circuit
19. Differential Temperature Sensor_Switch
20. Front Apron
21. Ground Points LHD (Passenger Compartment) – Sheet 17
22. Air Conditioning – Automatic A_C Circuit
23. DME V8 (vehicle side)_002
24. Ground Points Topology – Sheet 17B
25. Fuel Tank Unit
26. Front End Electronics_001
27. Tank System
28. PASM Control Unit
29. A) Driver's Door_002
30. Cooling Fans
31. Chassis DIS. Points 4D
32. Seats – Passenger Power Seat Circuit
33. DME V8 (Engine Side) – Sheet 72
34. Plug Sockets – Sheet 16R
35. Power Tops – Sunroof Circuit
36. Navigation – Navigation Circuit (W_ ASK)
37. B) CDR (CD Radio)_001
38. Compass – Sheet 30A
39. C) E-Box Plenum Panel V8
40. Motor Disc. Points – Sheet 4C
41. Instrument Cluster – Electronic Compass Circuit
42. Gateway_001
43. A) Can Topology_001
44. Seat, Basic – Sheet 10J
45. Anti-Theft
46. PSM (Porsche Stability Management)
47. Rear Discon. Point
48. Instrument Cluster
49. Wiper – Sheet 1A
50. B) Fuse Box, Right
51. Door Locks
52. All-Wheel – Sheet 58
53. Engine Controls
54. Trunk, Tailgate, Fuel Doors – Tailgate & Fuel Door Release Circuit
55. Auxiliary Power Outlet
56. Bose (R) Surround Sound System_002
57. PRSE (Porsche Rear Seat Entertainment) – Sheet 20M
58. Wheel Speed Sensor
59. PDCC (Porsche Dynamic Chassis Control)_001
60. Mirrors – Auto Anti-dazzling Mirror
61. Rain Sensor
62. E) Rear Lid D. Points
63. Automatic Transmission_Transaxle
64. Steering Column
65. Lane Change Assist – Sheet 33
66. Assembly Carrier_002
67. Front Apron – Sheet 40
68. Fuse Box, Left – Sheet 16A
69. Seat Memory – Sheet 10M
70. Fuel Level Sensor
71. Cigarette Lighter
72. Interior Lights – Sheet 3
73. Navigation – Rear Camera Circuit
74. Electronic Suspension – Electronic Level Control Circuit
75. Navigation – Parking Assistant Circuit
76. Auxiliary Heating System – Sheet 5G
77. Differential Assembly
78. Airbag
79. Accessories and Optional Equipment
80. Air-Conditioning System_002
81. Wiper and Washer Systems
82. Slide_Tilt Sunroof – Sheet 15C
83. Sound Systems – TV Tuner Circuit
84. Headlamp
85. Level Control _ PASM
86. Locks
87. Dimmer Switch
88. Fuse Box, Right – Sheet 16B
89. DME V8 (Engine side)
90. Alarm Horn
91. Instrument Panel, Gauges and Warning Indicators
92. Mirrors
93. Parkassist
94. Tire Monitoring System
95. Rear End Electronics_003
96. Exterior Lights – Backup Lamps Circuit
97. C) Rear A_C Unit_002
98. Lane Change Assist
99. Exterior Lights – Trailer Tow Circuit
100. Memory Systems – Passenger's Memory Seat Circuit
101. Power Windows – Power Windows Circuit
102. TV Tuner_002
103. Interior Mirror – Sheet 2M
104. PCM (Porsche Communication Management)
105. Rear Doors, Driver's Side – Sheet 9C
106. A) Ground Points LHD (Engine Compartment)
107. Heated Glass Element
108. Rear Lid, Left – Sheet 45A
109. Towing _ Trailer System
110. Headlights – W_ DRL
111. Windscreen Heating – Sheet 5K
112. Mirrors – Heated Mirrors Circuit
113. Gateway_002
114. PDCC (Porsche Dynamic Chassis Control)_002
115. B) Front A_C Unit
116. Parkassist – Sheet 35
117. Memory Systems – Driver's Memory Seat Circuit
118. D) Rear Doors, Passenger's Side
119. Auxiliary Cabin Heater
120. B) Passenger's Door_002
121. J) Seat, Basic
122. Parking Brake
123. Transmissions – Rear Differential Lock Circuit
124. Antenna
125. Shift Interlock – Electronic Parking Brake
126. Interior Lights
127. Burmester (R) High-End Surround Sound – Sheet 23
128. Rear End Electronics_002
129. C) Rear Doors, Driver's Side
130. Differential Lock
131. Power Distribution
132. Fuel Door
133. Disconnection Points, Doors_002
134. Memory Positioning Systems
135. Seat Disconnection Points_001
136. Steering Wheel Electronics
137. Rear End Electronics_001
138. Assembly Carrier – Sheet 41
139. Start _ Stop Switch
140. Instrument Cluster _ Carrier
141. Cooling System
142. Sound Systems – Base Radio Circuit
143. Rear Doors, Passenger's Side – Sheet 9D
144. TV Tuner_001
145. A) Can Topology_002
146. Rear Lid – Sheet 45E
147. Power Tops – Panoramic Roof Circuit
148. Reversing Camera – Sheet 26
149. C) Motor Disc. Points
150. Transmissions – A_T Circuit
151. Rear Defogger
152. B) Ground Points Topology
153. Manual Transmission_Transaxle
154. B) Rear Lid, Right_002
155. TPM (Tire Pressure Monitoring)
156. Computer Data Lines
157. C) Rear A_C Unit_001
158. Manual Transmiss. – Sheet 50G
159. Main Fuse Box_001
160. Exterior Vehicle Lights
161. Basic Sound System_002
162. Front End Electronics_003
163. Sound Systems – Rear Seat Entertainment Circuit
164. Air Bag Systems
165. Antilock Brakes _ Traction Control Systems
166. Interior Lights
167. Anti-Lock Brakes
168. Supplemental Restraints
169. Ground Distribution
170. Exterior Lights – Exterior Lamps Circuit
171. Wiper_Washer
172. Navigation – Navigation Circuit (W_ Bose)
173. Assembly Carrier_001
174. A) Driver's Door_001
175. Horns
176. Seats – Driver Power Seat Circuit
177. Starting_Charging – Charging Circuit
178. Roof Console – Sheet 15A
179. Burmester (R) High-End Surround Sound
180. Compass
181. A) Rear Lid, Left
182. Mirrors – Power Mirrors Circuit
183. B) Passenger's Door_001
184. Antitheft and Alarm Systems
185. Parking Brake System
186. Seat Disconnection Points_002
187. Starting_Charging – Starting Circuit
188. Automatic Transm. – Sheet 50C
189. Power Windows – Rear Window Sun Shade Circuit
190. Sound Systems – Optical WaveGuide Circuit
191. Level Control _ PASM – Sheet 56
192. Cruise Control
193. Transmissions – AWD Circuit
194. Instrument Cluster – Instrument Cluster Circuit
195. Main Fuse Box_002
196. Sound Systems – Premium Radio Circuit (W_ Burmester)
197. Horn
198. Electronic Power Steering
199. J) Auto Start_Stop System
200. Rear-Differential Lock – Sheet 53
201. Warning Systems
202. Sound Systems – Premium Radio Circuit (W_ Bose)
203. Rear Vision Camera
204. Air-Conditioning System_001
205. Electronic Suspension – Dynamic Chassis Control Circuit
206. Shift Interlock – Shift Interlock Circuit
207. E-Box Plenum Panel V8 16C
208. B) Panorama Roof System (PDS)
209. Ground Points LHD (Passenger Compartment)
210. Instrument Cluster – Overhead Console Circuit
211. C) Slide_Tilt Sunroof
212. Brake Fluid Level Sensor_Switch
213. Brakes and Traction Control
214. Body Computer – Front Controller Circuit
215. Sound Systems – Premium Radio Circuit (W_ ASK)
216. DME V8 (Vehicle Side)_001
217. Navigation – Lane Change Assistance Circuit
218. Basic Sound System_001
219. Defogger – Defogger Circuit
220. Rear Discon. Point – Sheet 11
221. Front End Electronics_002
222. Panorama Roof System (PDS) – Sheet 15B
