Manitou MT 625 H Turbo ST3B Parts Manual 647458
$30
- Type Of Manual: Parts Manual
- Manual ID: 647458
- Format: PDF
- Size: 83.3MB
- Number of Pages: 441
Description
-
Model List:
- MT 625 H Turbo ST3B
- 1. EXPLANATION OF SYMBOLS
- 1.1. EXPLANATION OF SYMBOLS
- 2. LUBRICANTS
- 2.1. A3 HYDRAULIC BLUE OIL (VG46HV)
- 2.2. A7 HUILE MOTEUR (10W40_API_CJ4)
- 2.3. A9 BRAKE FLUIDS LHM (LHM)
- 2.4. A10 OIL SPECIAL IMMERSED BRAKES
- 2.5. A11 MANUAL GEARBOX OIL (SAE80W90)
- 2.6. A13 WINDSCREEN WASHER LIQUID (LAVEGLACE)
- 2.7. A14 COOLING LIQUID (SMB_35)
- 2.8. A17 GREASE BLACK MULTIPURPOSE (GRAISSE_NOIRE)
- 2.9. A18 GREASE BLUE MULTIPURPOSE (GRAISSE_BLEUE)
- 3. FILTERSBELT
- 3.1. A313 FILTERS AND BELTS (647458)
- 4. FRAME BODY
- 4.1. _ENGINE BONNET
- 4.2. _COUNTERWEIGHT
- 4.3. _MUD GUARD (FENDER)
- 4.4. _TANK
- 5. ELECTRICITY
- 5.1. _CIRCUIT HARNESS
- 5.2. _LIGHTING SIGNALING
- 5.3. _SELECTOR MANIPULATOR
- 6. TELESCOPIC BOOM
- 6.1. A885 BOOM (647458)
- 7. AXLE ASSEMBLY AXLE
- 7.1. FRONT AXLE_52500584MO_(> 985923)
- 7.2. FRONT AXLE_52535277MO_(> 985924)
- 7.3. REAR AXLE_274034MOD_(> 985868)
- 7.4. REAR AXLE_52535276MO_(> 985869)
- 7.5. _WHEELS
- 8. HYDRAULIC
- 8.1. _CIRCUIT
- 8.2. _RAM
- 8.3. _VALVE BANK
- 8.4. _SELECTOR MANIPULATOR
- 8.5. _DETAIL
- 9. ENGINE
- 9.1. A1405 ENGINE TRANSMISSION ADAPTATION (647458)

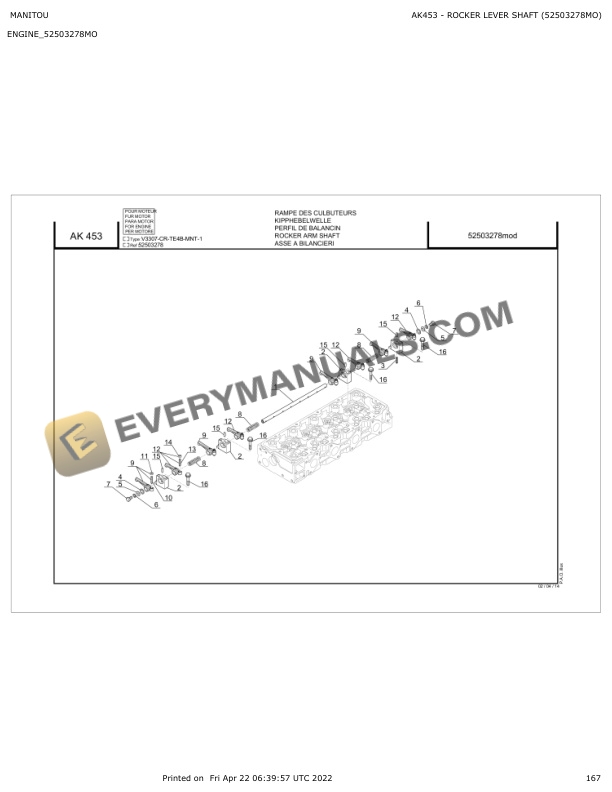

- 9.2. ENGINE_52503278MO
- 9.3. _ELECTRICITY
- 9.4. _INTAKE SYSTEM EXHAUST
- 9.5. _FUEL SUPPLY SYSTEM
- 9.6. _ELECTRICAL SYSTEM
- 9.7. _COOLING SYSTEM
- 10. PEDALS
- 10.1. A381 BRAKE CIRCUIT (647458)
- 11. DRIVER CAB
- 11.1. CAB_552502435MO_(> 967180)
- 11.2. CAB_52542206MO_( > 967181 > 986349)
- 11.3. CAB_52544704MO_( > 986350)
- 11.4. _CAB
- 11.5. _HEATER AIR CONDITIONING
- 11.6. _ELECTRICITY
- 12. TRANSMISSION
- 12.1. _HYDROSTATIC CIRCUIT
- 12.2. _HYDROSTYATIC PUMP
- 12.3. _HYDROSTATIC MOTOR
- 12.4. _PROPSHAFT
- 13. ADHESIVE SIGNS
- 13.1. A792 ADHESIVE (647458)
- 14. OPTIONS ACCESSORIES
- 14.1. a1247 AIRCONDITIONING ADAPTATION (647466)
- 14.2. a1248 AIRCONDITIONING ADAPTATION (647466)
- 14.3. A1249 AIRCONDITIONING ADAPTATION (647466)

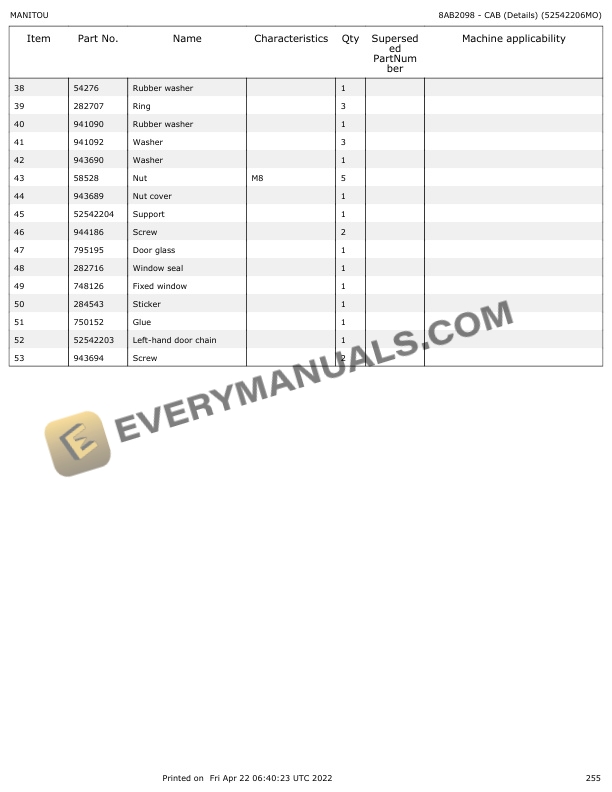

- 14.4. B1747 CAB (Details) (52502439MO)
- 14.5. B1748 CAB (Details) (52502439MO)
- 14.6. B1749 CAB (Details) (52502439MO)
- 14.7. B1750 CAB (Details) (52502439MO)
- 14.8. B1751 CAB (Details) (52502439MO)
- 14.9. B1752 CAB (Details) (52502439MO)
- 14.10. B1753 CAB (Details) (52502439MO)
- 14.11. B1754 CAB (Details) (52502439MO)
- 14.12. B87 WHEELS (647466)
- 14.13. B88 WHEELS (647466)
- 14.14. B89 WHEELS (647466)
- 14.15. B90 WHEELS (647466)

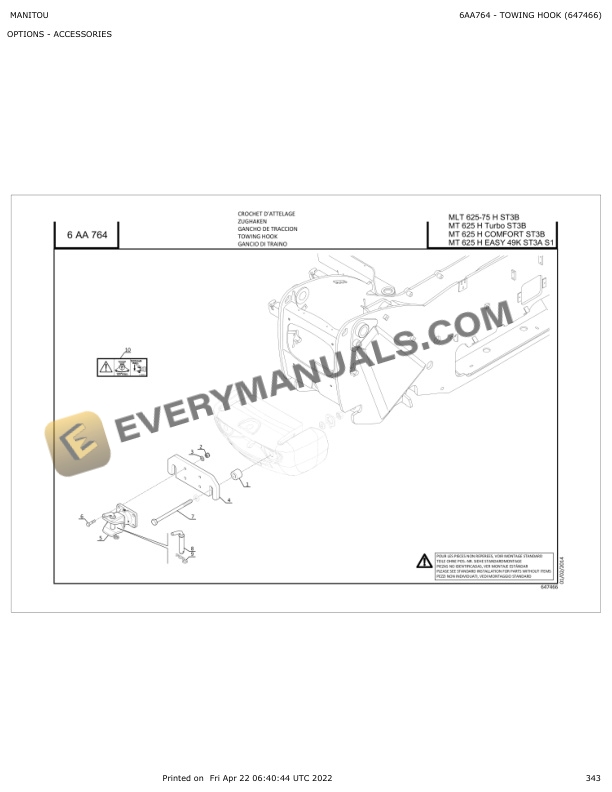

- 14.16. A764 TOWING HOOK (647466)
- 14.17. A315 CYCLONIC PREFILTER (647466)
- 14.18. C365 ELECTRICITY (Manual accelerator) (647466)
- 14.19. A795 ADHESIVE (647466)
- 14.20. A798 ADHESIVE (647466)
- 14.21. C366 ELECTRICITY (Tilting locking) (647466)
- 14.22. A264 ELECTRICITY (Electrical prefitting) (647466)
- 14.23. A265 ELECTRICITY (Electrical prefitting) (647466)
- 14.24. A792 REARVIEW MIRROR (647466)
- 14.25. A793 REARVIEW MIRROR (647466)
- 14.26. A1419 OIL DRAIN VALVE (647466)
- 14.27. A1420 TOOL (Wheel torque) (647466)
- 14.28. F1027 HYDRAULIC (Locking of attachments) (647466)
- 14.29. Z164 HYDRAULIC (Locking cylinder of attachments) (647466)
- 14.30. A893 SEALING ON BOOM (647466)
- 14.31. F1028 HYDRAULIC (Electrovalve Boom head) (647466)
- 14.32. F1029 HYDRAULIC (Electrovalve Boom head) (647466)
- 14.33. A310 HYDRAULIC (Details) (647466)
- 14.34. F1030 HYDRAULIC (Electrovalve Locking of attachments) (647466)
- 14.35. F1031 HYDRAULIC (Electrovalve Locking of attachments) (647466)
- 14.36. A266 ELECTRICITY (Electrical prefitting jib) (647466)
- 14.37. A267 ELECTRICITY (Electrical prefitting jib) (647466)
- 14.38. F1022 DUNG FORK (647420)
- 14.39. A143 HYDRAULIC (Details) (647466)
- 14.40. C367 ELECTRICITY (Forced operation) (647466)
- 14.41. A794 BODY (647466)
- 14.42. A268 ELECTRICITY (Working headlight on jib) (647466)
- 14.43. E1533 HYDRAULIC (Attachment circuit) (647466)
- 14.44. A68 LUBRIFICATION (647466)
- 14.45. B1619 ELECTRICITY (Service plate lighting) (647466)
- 14.46. A894 BOOM (Level indicator) (647466)
- 14.47. C154 CARRIER (647466)
- 14.48. B1739 CAB (Details) (52502437MO)
- 14.49. B1740 CAB (Details) (52502437MO)
- 14.50. B1741 CAB (Details) (52502437MO)
- 14.51. B1742 CAB (Details) (52502437MO)
- 14.52. B1743 CAB (Details) (52502437MO)
- 14.53. B1744 CAB (Details) (52502437MO)
- 14.54. B1745 CAB (Details) (52502437MO)
- 14.55. B1746 CAB (Details) (52502437MO)
