Volkswagen Teramont FWD (CA1) (MEXICO) 2020 Electrical Diagrams V6-3.6L (CDVC)

Volkswagen Teramont FWD (CA1) (MEXICO) 2020 Electrical Diagrams V6-3.6L (CDVC) - Image 2

Volkswagen Teramont FWD (CA1) (MEXICO) 2020 Electrical Diagrams V6-3.6L (CDVC) - Image 3

Volkswagen Teramont FWD (CA1) (MEXICO) 2020 Electrical Diagrams V6-3.6L (CDVC) - Image 4

Volkswagen Teramont FWD (CA1) (MEXICO) 2020 Electrical Diagrams V6-3.6L (CDVC) - Image 5

volkswagen teramont fwd ca1 mexico 2020 electrical diagrams v6 36l cdvc 2

volkswagen teramont fwd ca1 mexico 2020 electrical diagrams v6 36l cdvc 3

Volkswagen Teramont FWD (CA1) (MEXICO) 2020 Electrical Diagrams V6-3.6L (CDVC)

Date: 2020
Type Of Manual: Electrical Diagrams
Engine: V6-3.6L (CDVC)
Number of Pages: 671
Size: 77.1MB
Format: PDF

Category: Volkswagen Wiring Diagrams PDF

Description

Model List:
- Teramont FWD (CA1) (MEXICO)

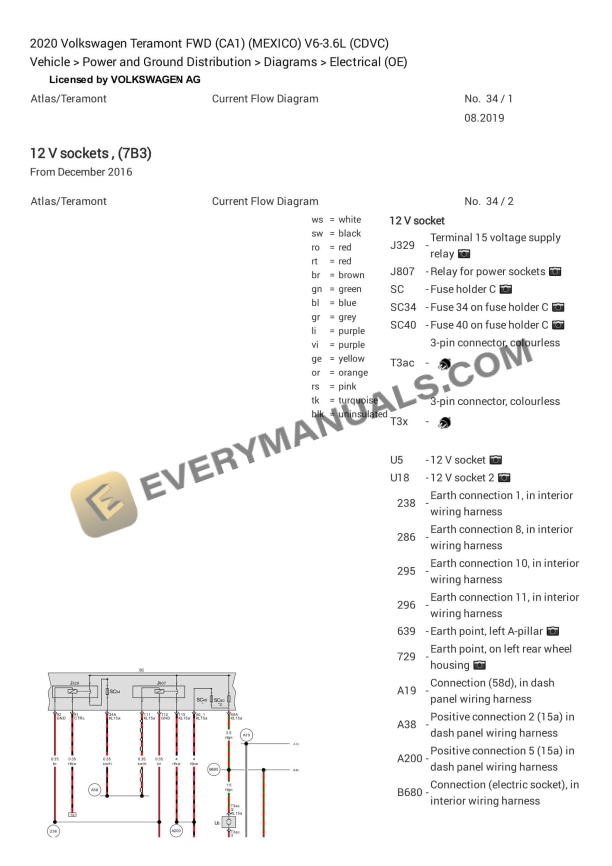

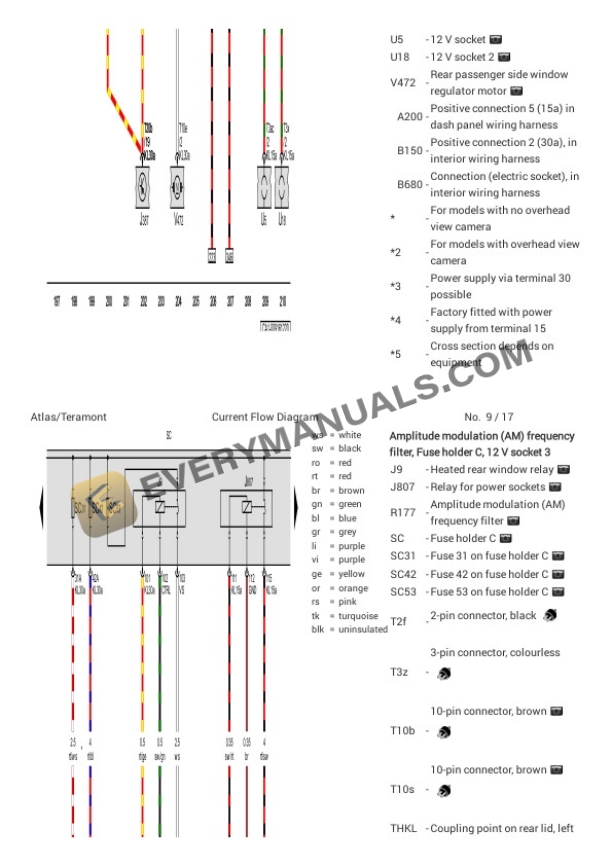

1. V Sockets, (7B3), From December 2016
2. Petrol Engine, CDVC, From December 2016_001
3. Petrol Engine, CDVC, From December 2016_002
4. Adaptive Cruise Control, (8T3), From December 2016
5. Air Conditioning System, (KH9), From December 2016
6. Air Conditioning-Heater Remote Start Function, (7U1), (7U2), From December 2016
7. Airbag Systems, (4UM), From December 2016
8. Anti-Lock Brake System (ABS), (L0L), From December 2016
9. Anti-Theft Alarm System, (7AG), From December 2016
10. Anti-Theft Alarm System, Interior Monitor, (7AL), From December 2017
11. Automatic Gearbox, (0EW), From December 2016
12. Auxiliary Heater w- Remote Control, (9M9), From December 2017
13. Basic Equipment, From December 2016_001
14. Basic Equipment, From December 2016_002
15. Basic Equipment, From December 2016_003
16. Basic Equipment, From December 2016_004
17. Basic Equipment, From December 2016_005
18. Basic Equipment, From December 2016_006
19. Basic Equipment, From December 2016_007
20. Climatronic, (KH8), From December 2016

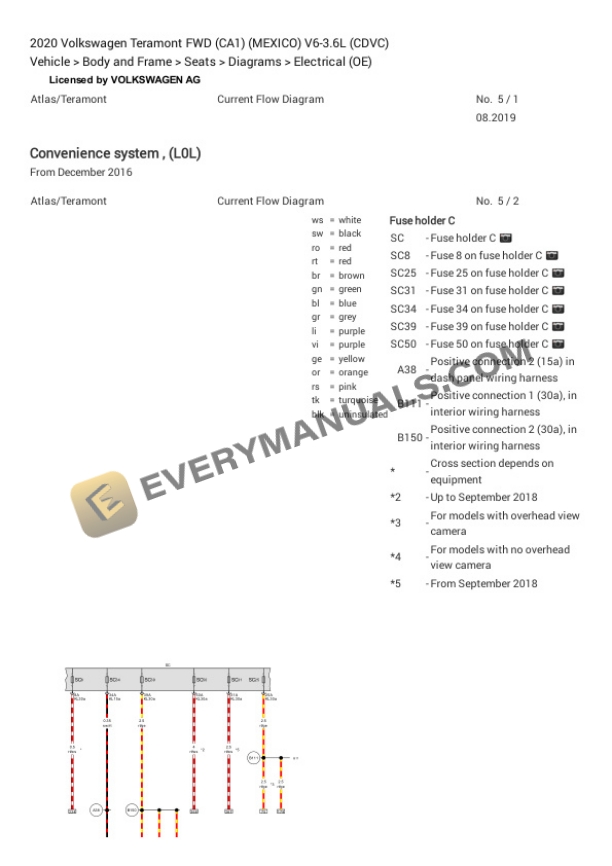

21. Convenience System, (L0L), From December 2016_001
22. Convenience System, (L0L), From December 2016_002
23. Convenience System, (L0L), From December 2016_003
24. Convenience System, (L0L), From December 2016_004
25. Convenience System, (L0L), From December 2016_005
26. Convenience System, (L0L), From December 2016_006
27. Data Bus Network, From December 2016
28. DC-AC Converter w- Socket, (9Z2), (9Z3), From December 2016
29. Earthing Concept, From December 2016

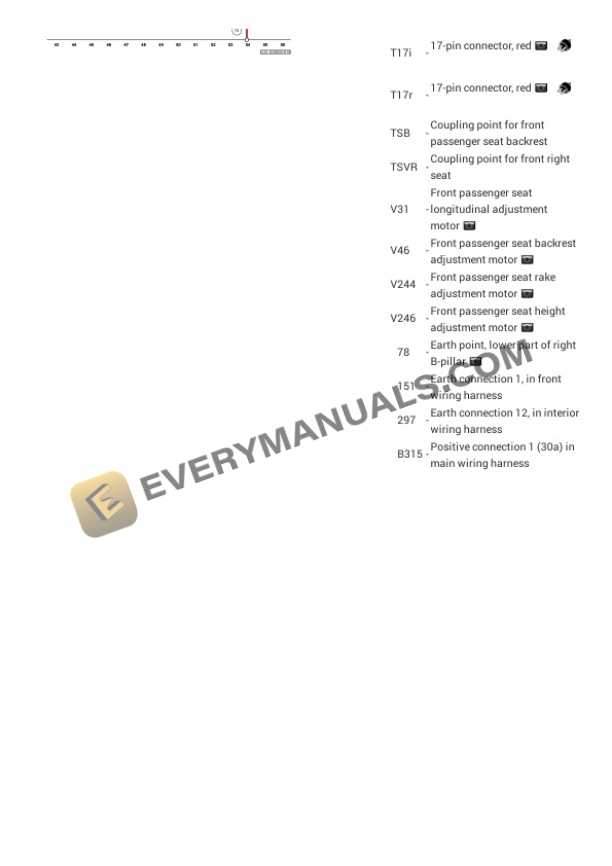

30. Electric Seat Adjustment w- Memory Function, (3L4), From December 2016
31. Electric Seat Adjustment w- No Memory Function, (3PI), (8I5), From December 2016
32. Electromechanical Steering, (1N3), From December 2016
33. Emergency Call Module, (8AR), (I8I), From August 2019
34. Emergency Call Module, (EL2), From December 2016
35. Emergency Call Module, (NZ3), From December 2017
36. Emergency Call Module, (NZ4), From August 2019
37. Engine Preheating, (7VP), From December 2016
38. Entry and Start Authorisation, (4F6), (4I3), From December 2016
39. Front Camera for Driver Assist Systems, (QK1), From December 2016
40. Fuse Assignment, From December 2016
41. Garage Door Opener, (VC2), From December 2016
42. Heated Windscreen, (4GF), (4GX), From December 2016
43. Lane Change Assist, (7Y8), (7Y9), From December 2016
44. LED Headlights, (8IT), (8Q3), From December 2016
45. Multifunction Steering Wheel, (2FY), (2ZA), (2ZH), (2ZW), (2ZX), From December 2016

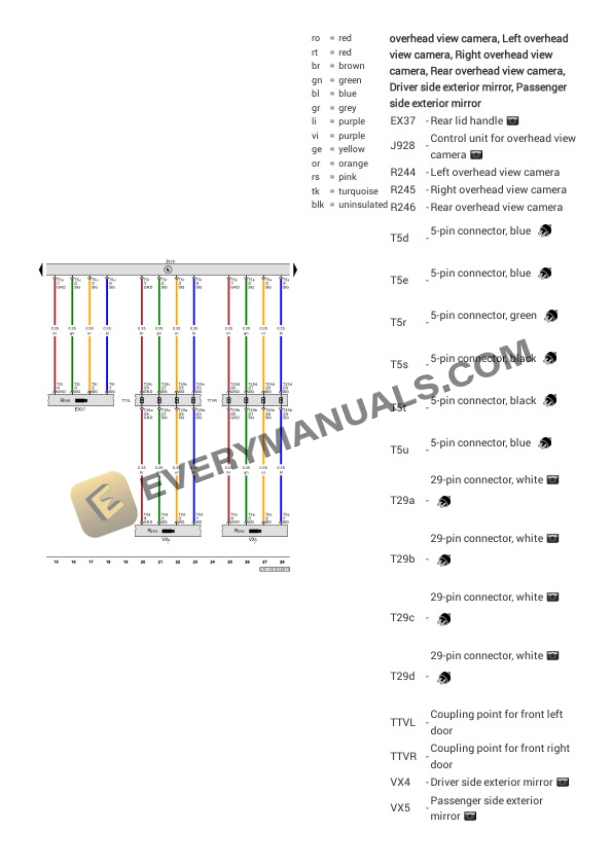

46. Overhead View Camera, (8AR), (KA6), From August 2019
47. Overhead View Camera, (KA6), From December 2016
48. Parking Aid (PDC), (7X2), (7X5), From December 2016
49. Radiator Fan, From December 2016
50. Radio Navigation System, (8AR), From August 2019_001
51. Radio Navigation System, (8AR), From August 2019_002
52. Radio Navigation System, (I8I), From August 2019_001
53. Radio Navigation System, (I8I), From August 2019_002
54. Radio Navigation System, From December 2016_001
55. Radio Navigation System, From December 2016_002
56. Reversing Camera (Rear Assist), (8AR), (KA1), From August 2019
57. Reversing Camera (Rear Assist), (8AR), (KA2), From August 2019
58. Reversing Camera (Rear Assist), (I8I), (KA2), From August 2019
59. Reversing Camera (Rear Assist), (KA1), From August 2019
60. Reversing Camera (Rear Assist), (KA2), From December 2016
61. Seat Heating, (4A3), (4A4), From December 2016
62. Seat Ventilation, (4D3), From December 2016
63. Sliding-Tilting Sunroof, (3FU), From December 2016
64. Sound System, (8AR), (9VX), From August 2019
65. Sound System, (9VX), From December 2016
66. Steering Column Electronics for Heated Steering Wheel, (2ZW), (2ZX), (2FM), From September 2018_001
67. Steering Column Electronics for Heated Steering Wheel, (2ZW), (2ZX), (2FM), From September 2018_002
68. Steering Column Electronics, From September 2018
69. Trailer Coupling, (1D6), (1M5), From December 2016
70. Tyre Pressure Monitoring System, (7K3), From July 2018
71. Window Wash-Wipe System, From December 2016_001
72. Window Wash-Wipe System, From December 2016_002
