Case Magnum 235, 260, 290, 315, 340, 370 Continuously Variable Transmission (CVT) Tractor Service Manual 47613839 PDF
$30
- Type Of Manual: Service Manual
- Manual ID: 47613839
- Format: PDF
- Size: 44.7MB
- Number of Pages: 359
Description
-
Model List:
- Magnum 235 Continuously Variable Transmission (CVT) Tractor
- Magnum 260 Continuously Variable Transmission (CVT) Tractor
- Magnum 290 Continuously Variable Transmission (CVT) Tractor
- Magnum 315 Continuously Variable Transmission (CVT) Tractor
- Magnum 340 Continuously Variable Transmission (CVT) Tractor
- Magnum 370 Continuously Variable Transmission (CVT) Tractor
- 1. Power coupling 19
- 1.1. Drive shaft 100
- 2. Transmission 21

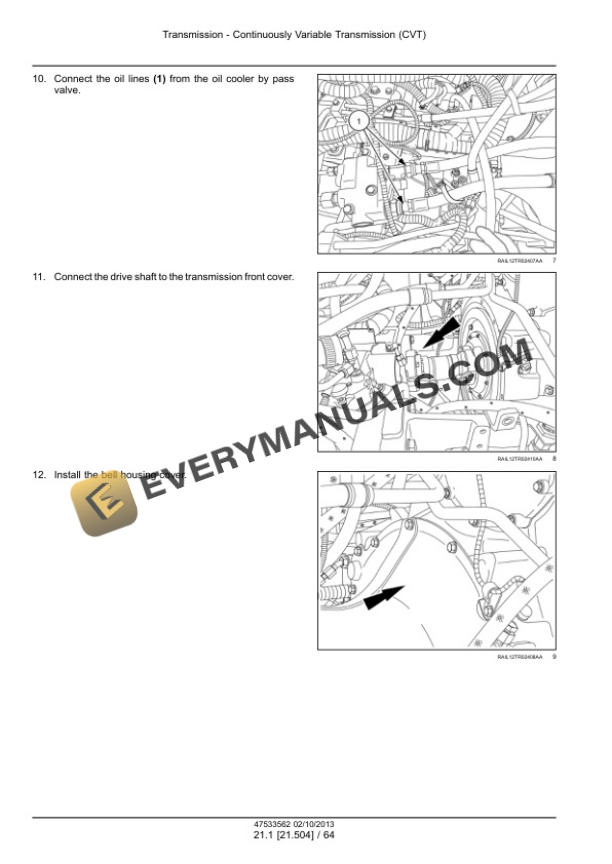

- 2.1. Continuously Variable Transmission (CVT) 504
- 2.2. Continuously Variable Transmission (CVT) external controls 505

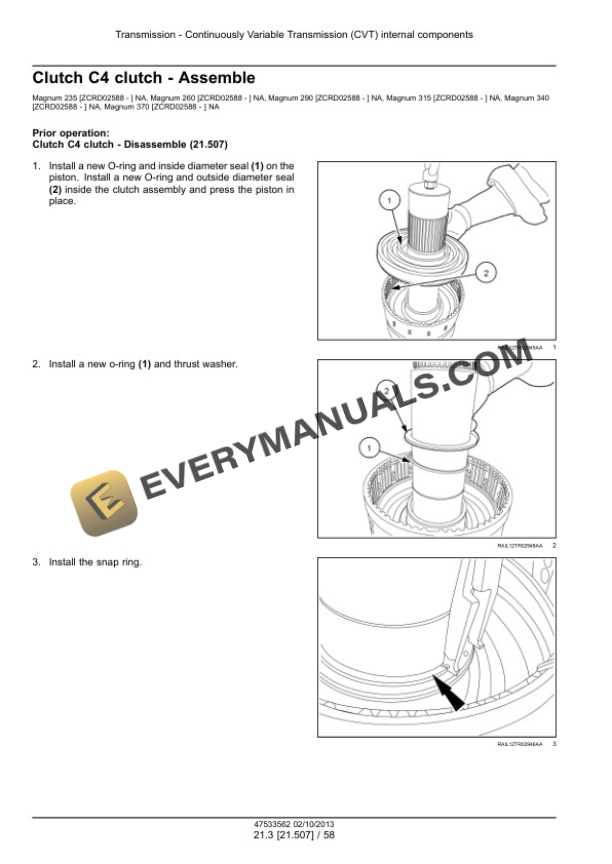

- 2.3. Continuously Variable Transmission (CVT) internal components 507
- 2.4. Continuously Variable Transmission (CVT) lubrication system 506
- 3. FourWheel Drive (4WD) system 23
- 3.1. Electrohydraulic control 202
- 3.2. Drive shaft 314
